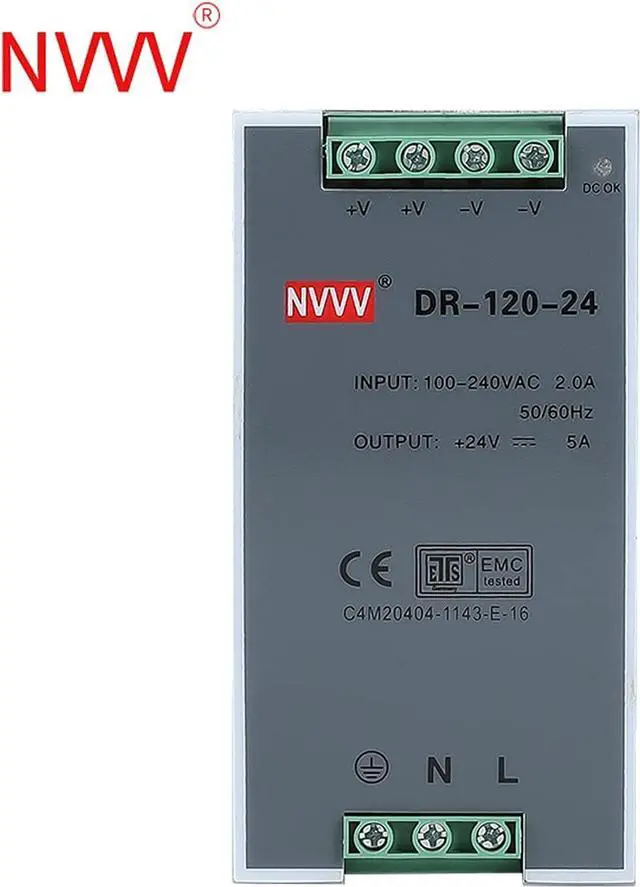

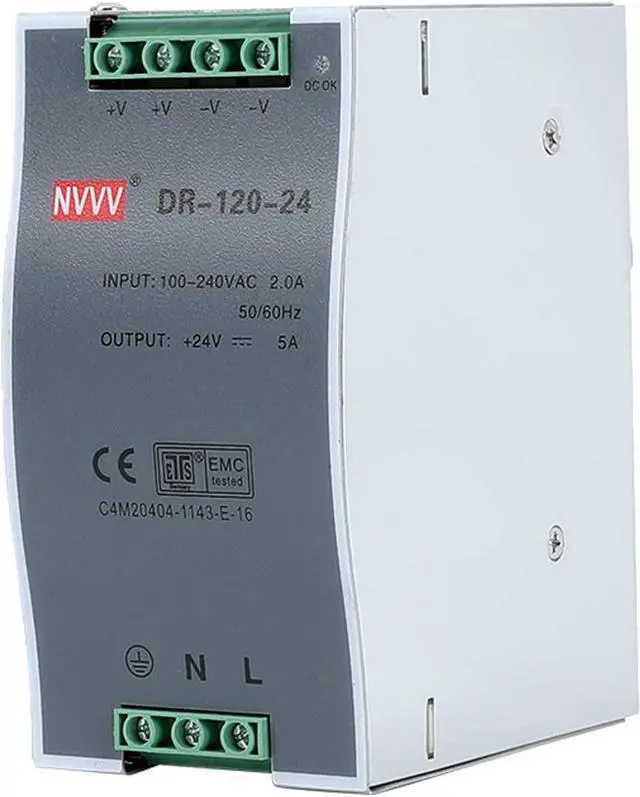

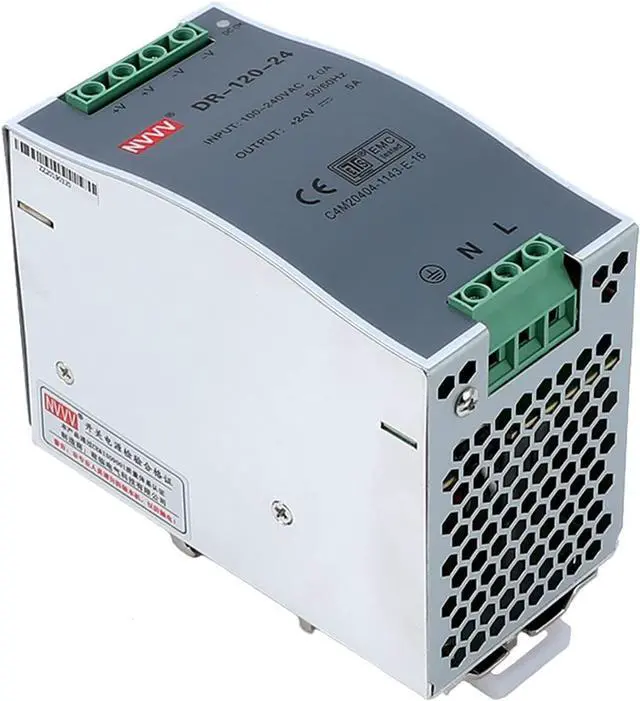

NVVV DR-120-24 AC to DC DIN-Rail Mount Power Supply, 24V, 5Amp, 120W Single Extreme -30 to 70 °C (-22 to 158 °F) Operating Temp, Overload Protection, Metal
- POWER - The DR-120 specs out with 24 volts at 5 amps and has a universal AC input range; Gone through 100% full load burn-in tests; Input voltage 85-264 VAC at 47-63Hz

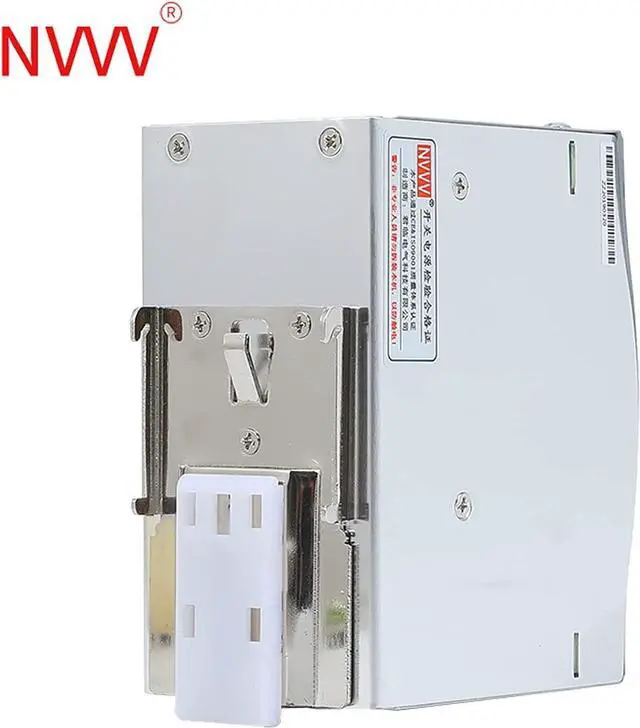

- Easy install - the door-120 series power supply was designed to easily install on din rail ts-35/7.5 or 15 rails to provide for an efficient and organized work space
- Protections - the power supply protects against short-circuits, overloading, over-voltage, and over temperature ensuring you and your place of work remain safe and recovers automatically after failure
- Industrial - this power supply is designed to work with the most rigorous of machinery and adaptations including heavy machinery like cnc machines
- MONEY BACK GUARANTEE - If you are not 100% satisfied with your power supply just return the device and we will refund your purchase; or you can take advantage of the unique NVVV 3-year warranty
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Package Include:
1 x 120W 24V single output industrial DIN rail power supply DR-120-24

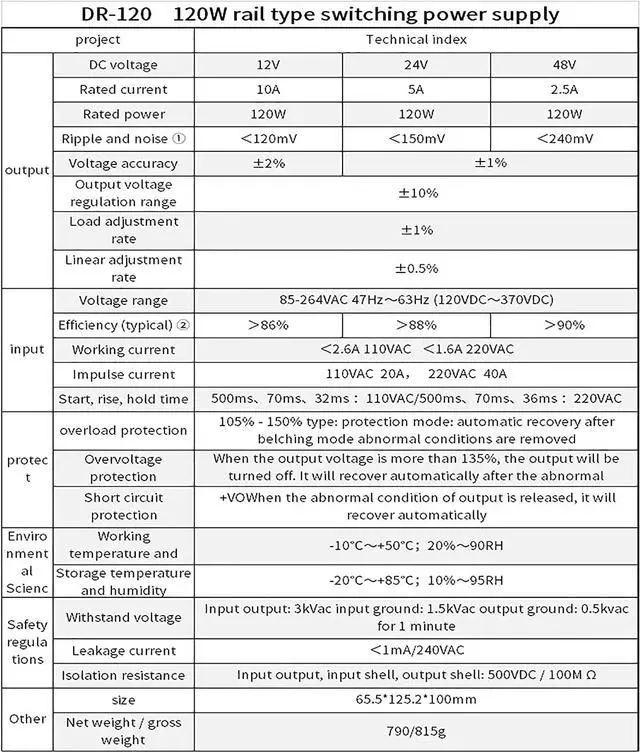

specifications:
output power (W): 120
ripple & noise (mV p-p): 150 mV
load regulation: ± 1 %
line regulation: ± 0.5 %
efficiency: 88%

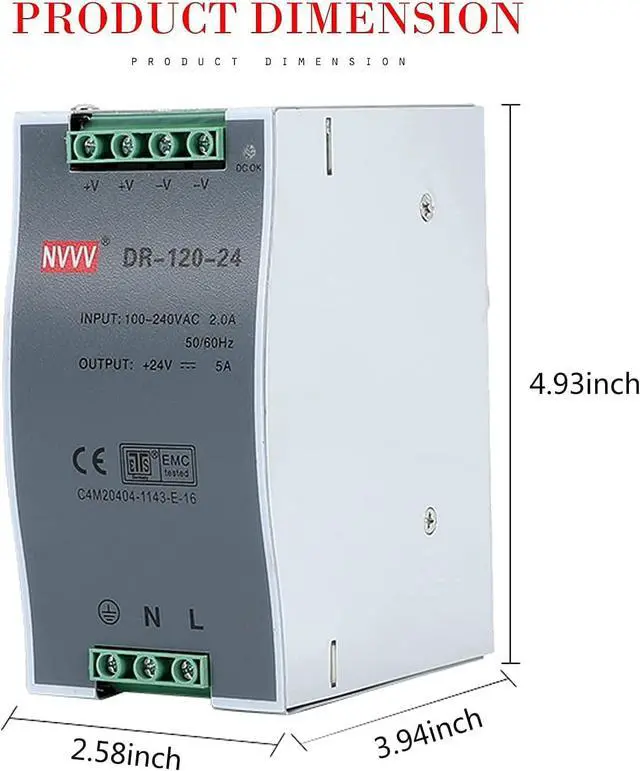

size (L x W x H): 2.58 x 3.94 x 4.93 inches
Overvoltage Protection: When the outputvlotage is more than 135%, the output will be turned off. It will recover automatically after the abnormal.
detailed specifications:
primary output voltage (VDC): 24
output current (a): 5
maximum output power (W): 120
family: DR-120
input voltage: 85 to 264 VAC
input frequency: 47Hz to 63Hz
maximum input current (a): 2.25
output connector Type: screw terminal
operating temperature-min (CEL): -30 to 70 °C
operating temperature-max (CEL): 50
agency approvals: 3C/CE/ISO
color: silver
style: DIN.
Brand Name: NVVV

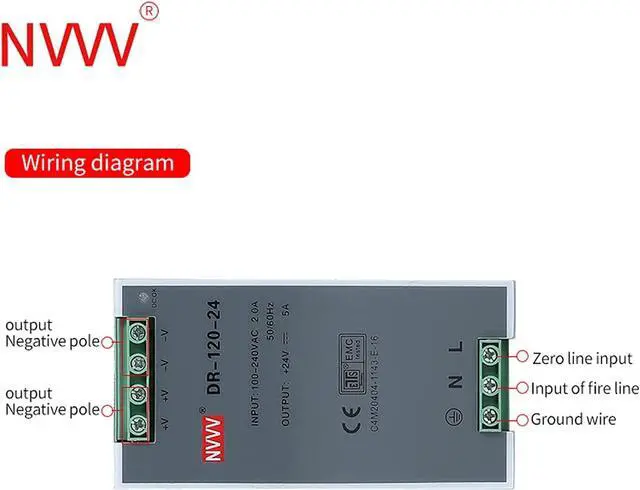

Connection instruction
: Ground wire
L: Live wire
N: Negative wire
+V: DC power output +
-V: DC power output -
+V ADJ: output voltage regulation
1 x 120W 24V single output industrial DIN rail power supply DR-120-24
specifications:
output power (W): 120
ripple & noise (mV p-p): 150 mV
load regulation: ± 1 %
line regulation: ± 0.5 %
efficiency: 88%
size (L x W x H): 2.58 x 3.94 x 4.93 inches
Overvoltage Protection: When the outputvlotage is more than 135%, the output will be turned off. It will recover automatically after the abnormal.
detailed specifications:
primary output voltage (VDC): 24
output current (a): 5
maximum output power (W): 120
family: DR-120
input voltage: 85 to 264 VAC
input frequency: 47Hz to 63Hz
maximum input current (a): 2.25
output connector Type: screw terminal
operating temperature-min (CEL): -30 to 70 °C
operating temperature-max (CEL): 50
agency approvals: 3C/CE/ISO
color: silver
style: DIN.
Brand Name: NVVV
Connection instruction
: Ground wire
L: Live wire
N: Negative wire
+V: DC power output +
-V: DC power output -
+V ADJ: output voltage regulation
