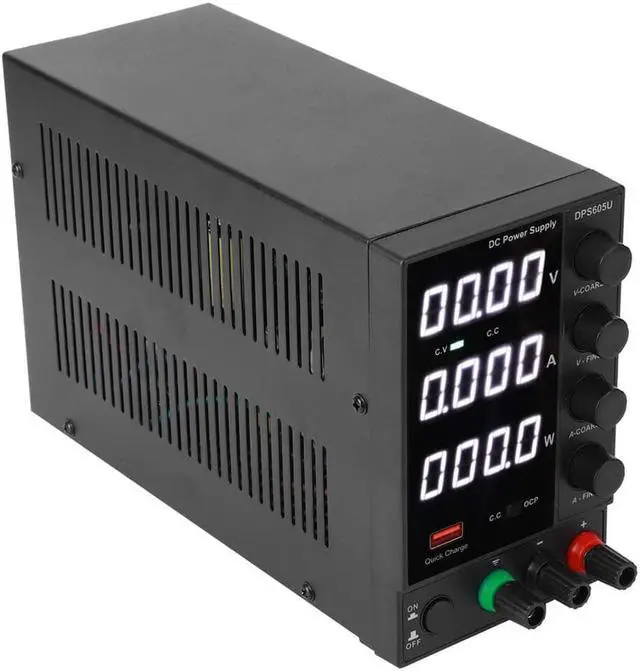

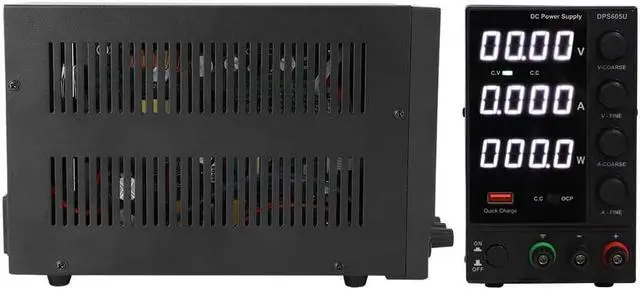

Adjustable DC Power Supply, 60V 5A Adjustable DC Power Supply With USB Quick Charging for Phone Computer Maintenance, Regulated Benchtop Power Supply(US 110V)

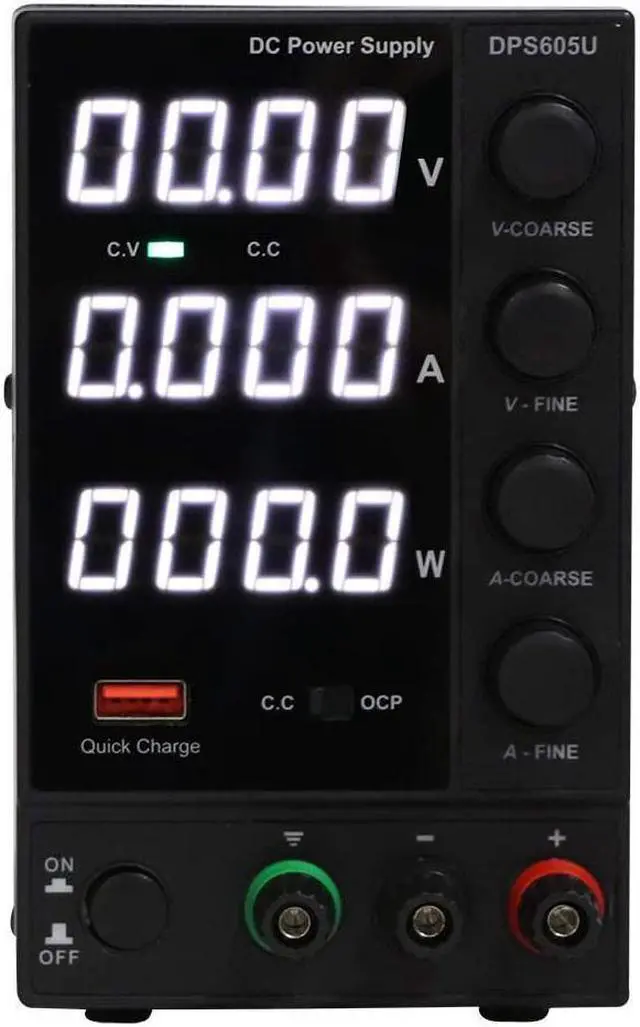

- 4 digit digital displayThis DC adjustable power supply is equipped with an LED 4-digit digital display, which can clearly display voltage, current and power, and is easy to operate
- Fast chargingThis DC adjustable power supply has a built-in fast charging protocol recognition chip and supports USB fast charging function

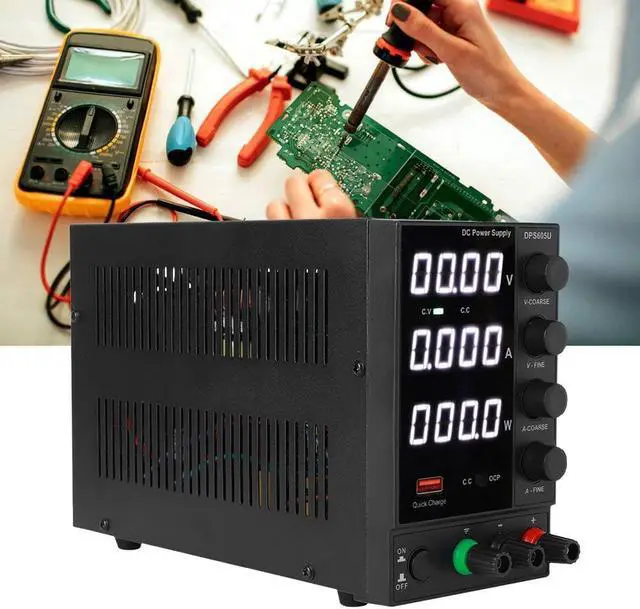

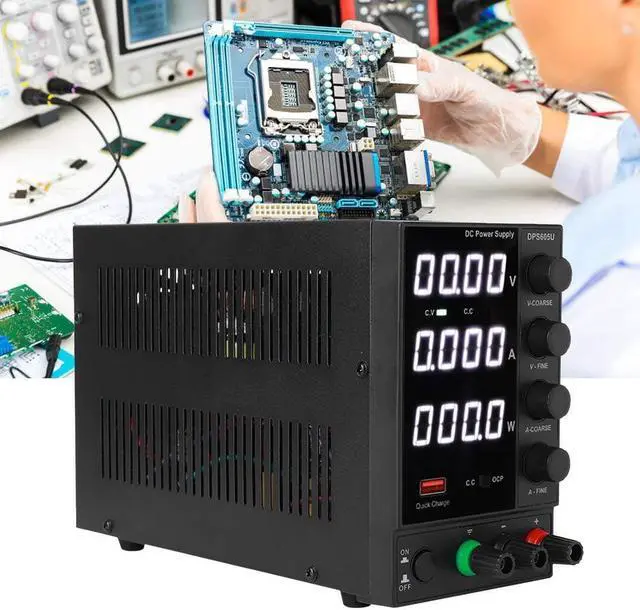

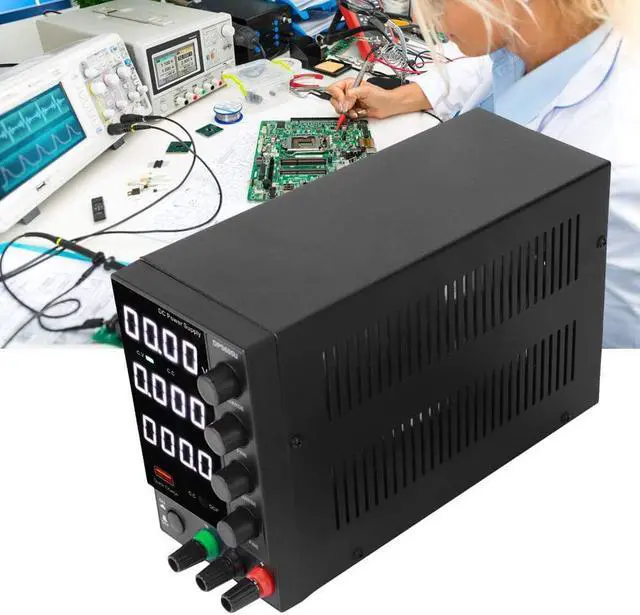

- Wide useThis DC stabilized power supply can be used for telephone repair, computer repair, electrical repair, school laboratory research and production line use
- AdjustableThe variable voltage power supply can continuously adjust the output voltage and current from 0 to the rated value through fine adjustment and coarse adjustment
- FunctionThe DC power supply has over-voltage protection (OVP), over-current protection (OCP), over-heat protection and improved short-circuit alarm function
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Condition: 100% Brand New
Item Type: DC Power Supply
Material: Aluminum Alloy
Product Model: DPS605U
Output Power: 300W
Output Voltage: 0-60V
Output Current: 0-5A
Auxiliary Function: USB fast charge, support multiple fast charge protocols
Protection Mode: Current limit protection/short circuit alarm stop output, self-recovery
Working Environment:
Input Power: AC 230V/115V±10%; 50Hz/60Hz
Working Temperature: 0-40; Relative Humidity: <80%RH
Storage Temperature: -10-70; Relative Humidity: <70%RH
Regulated State CV:
Voltage Stability: 0.1%±3mV
Load Stability: 0.2%±3mV
Ripple Voltage: 0.5% Vp-P
Adjustable Voltage: 0 to rated voltage continuously adjustable
Steady Flowing State CC:
Current Stability: 0.1%±3mA
Load Stability: 0.2%±3mA
Ripple Current: 0.5% Vp-P
Recovery Time: 500S
Temperature Coefficient: 100ppm/
Adjustable Current: 0 to rated current continuously adjustable
Meter Display: 0.56in white light 4-digit digital tube display
Display Accuracy: 0.5%±3 words
Display Resolution: Voltage 0.01V, Current 0.001A

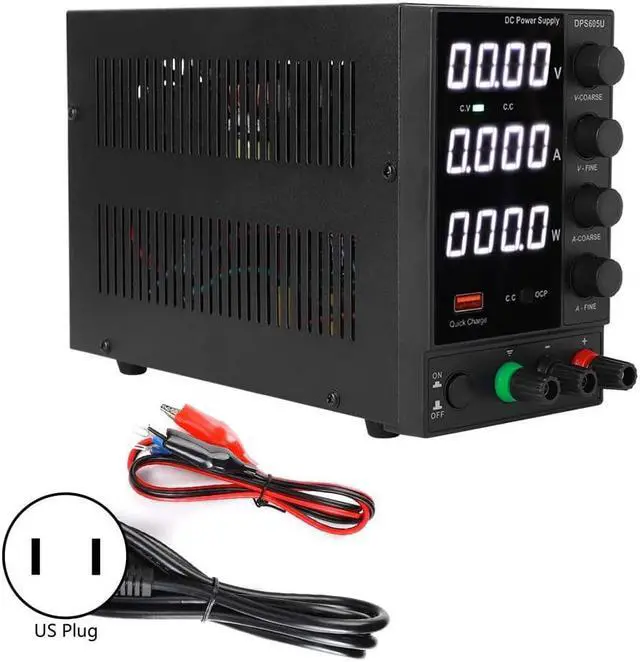

Package List:
1 x DC Power Supply
1 x Data Cable
1 x Clip Line
Note:
When see the 230V switch behind the power supply, allowable input voltage: AC230±10%;
when see the 115V switch behind the power supply, allowable input voltage: AC115±10%.
Condition: 100% Brand New
Item Type: DC Power Supply
Material: Aluminum Alloy
Product Model: DPS605U
Output Power: 300W
Output Voltage: 0-60V
Output Current: 0-5A
Auxiliary Function: USB fast charge, support multiple fast charge protocols
Protection Mode: Current limit protection/short circuit alarm stop output, self-recovery
Working Environment:
Input Power: AC 230V/115V±10%; 50Hz/60Hz
Working Temperature: 0-40; Relative Humidity: <80%RH
Storage Temperature: -10-70; Relative Humidity: <70%RH
Regulated State CV:
Voltage Stability: 0.1%±3mV
Load Stability: 0.2%±3mV
Ripple Voltage: 0.5% Vp-P
Adjustable Voltage: 0 to rated voltage continuously adjustable
Steady Flowing State CC:
Current Stability: 0.1%±3mA
Load Stability: 0.2%±3mA
Ripple Current: 0.5% Vp-P
Recovery Time: 500S
Temperature Coefficient: 100ppm/
Adjustable Current: 0 to rated current continuously adjustable
Meter Display: 0.56in white light 4-digit digital tube display
Display Accuracy: 0.5%±3 words
Display Resolution: Voltage 0.01V, Current 0.001A
Package List:
1 x DC Power Supply
1 x Data Cable
1 x Clip Line
Note:
When see the 230V switch behind the power supply, allowable input voltage: AC230±10%;
when see the 115V switch behind the power supply, allowable input voltage: AC115±10%.
