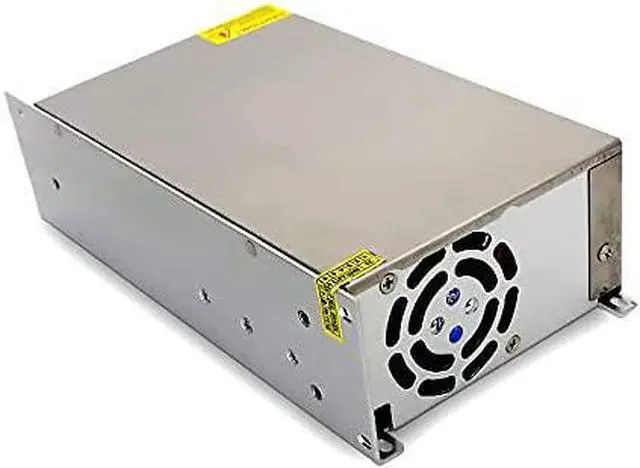

Switching Power Supply 1000W 53V 54V 55V 56V 57V 58V TOTIWO Power Adapter Driver Transformer 220V/110VAC for CCTV, Computer Project, 3D Printer, LED Strip Light (57V1000W(100-120VAC))

Parameter:
Input: AC 100-120V or AC 200-240V 50-60Hz
Output Voltage : DC 53V/ 54V/ 55V/ 56V / 57V/ 58V
Output Current: 0~18.87A /0~18.52A/0~18.18A/0~17.86A/0~17.54A/0~17.24A
Output Wattage: 1000W
Input Efficiency:>0.85

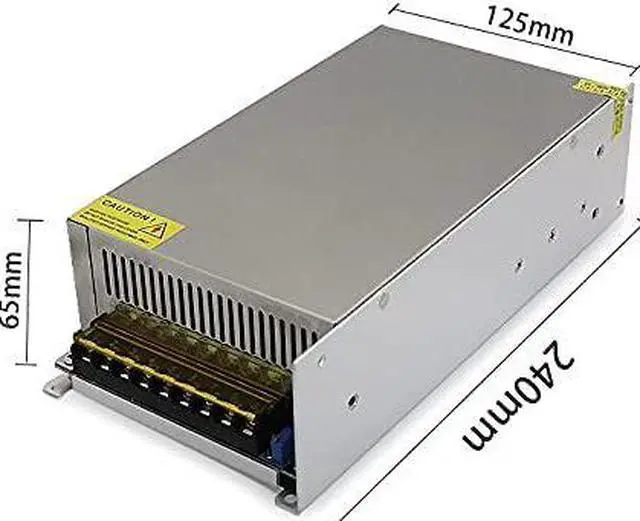

Size: 240*125*65mm
Safety Compliance: CE / RoHS
Shell Material: Aluminum case ,5 years warranty
Protections: short circuit, over load, over voltage
High efficiency, long life, high reliability
100% full load burn-in test
Working Temp. & humidity: "-20°C~+60°C, 20%~90%RH
Storage Temp. & humidity:"-40°C~+85°C, 10%~95%RH
Overload:Above 110%-150% of rated power,Shut-down output voltage, auto recovery after fault condition is removed.
Connection instruction:
L: Live wire
N: Negative wire
+V: DC power output \u201c+\u201d
-V: DC power output \u201c-\u201c
+V ADJ: Adjust the output voltage (±2v)
Kindly note:

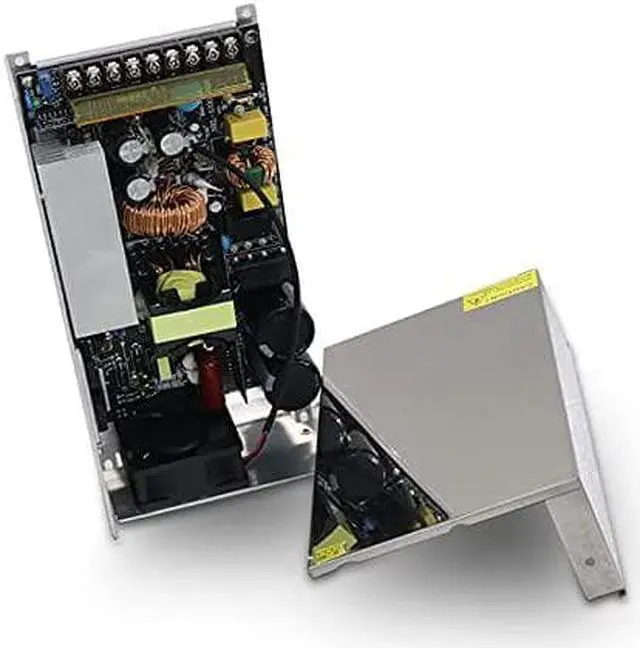

1,High Voltage inside, do not remove the cover.
2,It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified electrician is highly recommended.
3,The above mentioned data were measured at 230VAC input and 25°C.
4,Dis-connect the AC input before checking any mal-phenomenons.
5, Make sure the INPUT&OUPUT were in right situation before connected to power supply.
6, Datasheet for reference only.
Package included:
1 X 1000W Switching Power Supply
