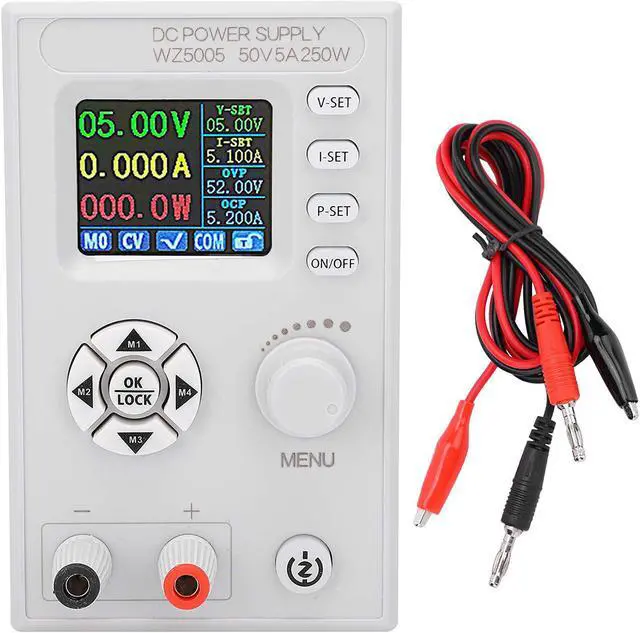

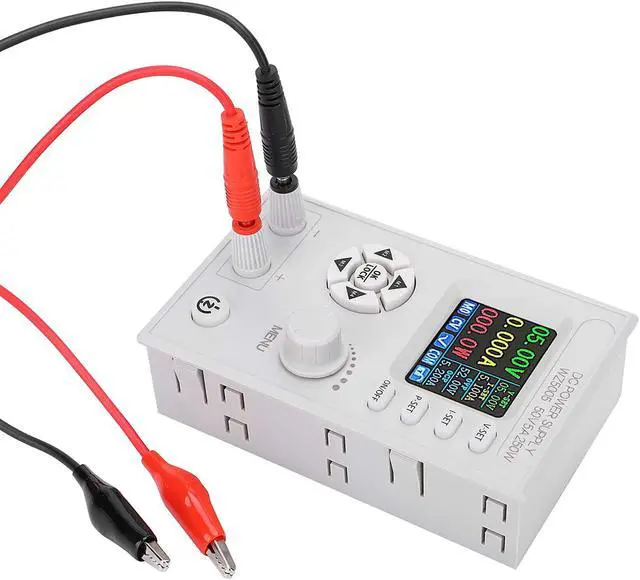

Regulated Power Supply DC6-55V to DC0-50V 250W 5A Adjustable Switching Control with 4?Digit LCD Display WZ5005
- Flame retardant material with small size and light weight, possess constant voltage and constant current output, overvoltage and overcurrent protection, overtemperature and undervoltage protection
- The output over?voltage (OVP)/over?current (OCP) data can be set through the buttons on the panel, and the over?temperature protection (OTP)/under?voltage protection (LVP) is built?in.
- When the output voltage, current and device temperature exceed the protection value, input voltage is less than the protection value, the power supply is automatically shut off to protect the safety of electrical equipment
- USB to TTL module (U2T)/RS485 to TTL module (T485) can be selected with remote connection control. Come with convenient and quick data storage, key lock function to prevent misoperation
- High-power and high-accuracy, 1.8-inch high-definition LCD screen with LCD 4-digit display, support PC upper computer, support for Android APP
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

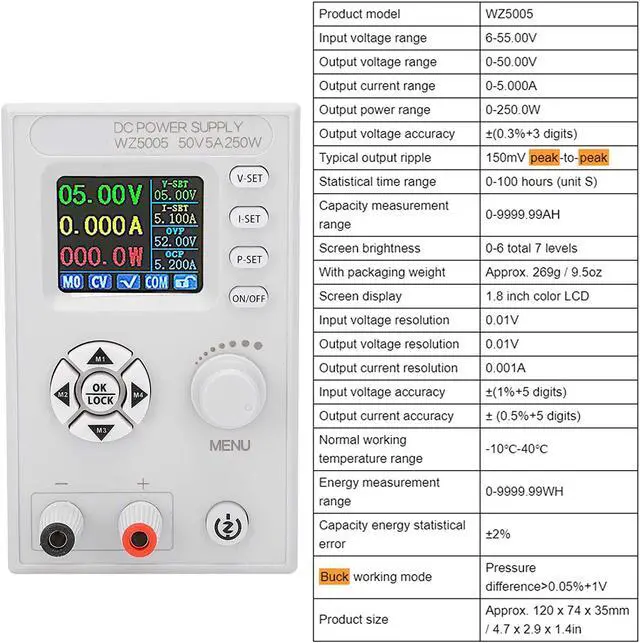

Specification:
Item Type: DC Regulated Power Supply
Material: ABS
Model: WZ5005
Input Voltage Range: DC6-55V
Output Voltage Range: DC0-50V
Output Current Range: 0-5A
Output Power Range: 0-250W
Screen Display: 1.8 inch color LCD

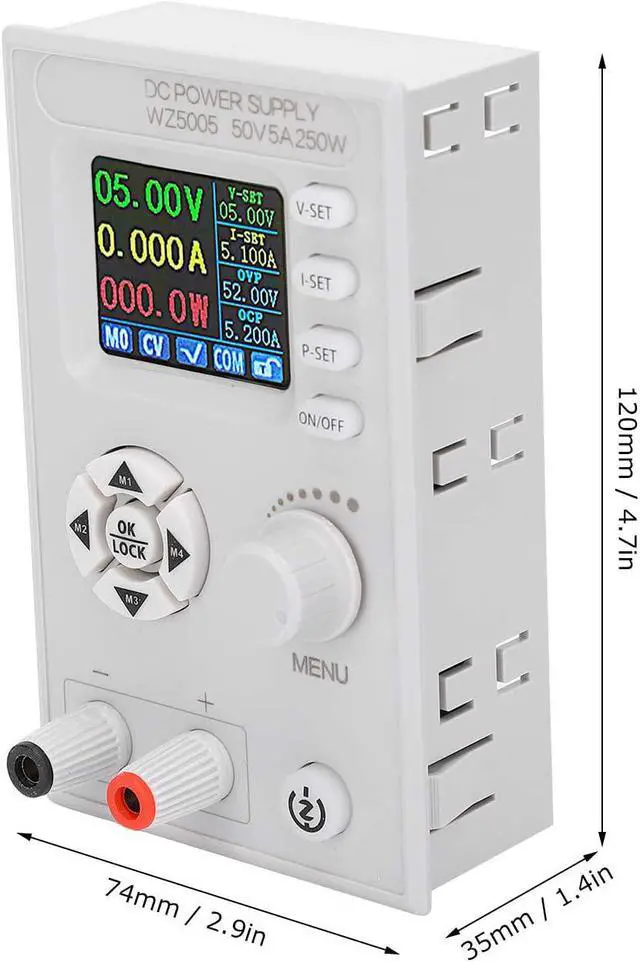

Size: H x W x H: Approx. 120 x 74 x 35mm / 4.7 x 2.9 x 1.4in
Package List:
1 x DC Regulated Power Supply
2 x Clip Line
Item Type: DC Regulated Power Supply
Material: ABS
Model: WZ5005
Input Voltage Range: DC6-55V
Output Voltage Range: DC0-50V
Output Current Range: 0-5A
Output Power Range: 0-250W
Screen Display: 1.8 inch color LCD
Size: H x W x H: Approx. 120 x 74 x 35mm / 4.7 x 2.9 x 1.4in
Package List:
1 x DC Regulated Power Supply
2 x Clip Line
