Switch Power Supply DC Power Supply 3 LED Adjustable Power Supply Power Supply Voltage stabilizer for Factory Maintenance(U.S. regulations)

Features:
1. 100% brand new and high quality
2. The power supply is a simple, accurate DC power source with full indicated power which has improved power efficiency high as 80%.
3. This power supply has output voltage current rating range of continuous adjustable, constant voltage constant current (CV/CC) automatic conversion mode of operation.

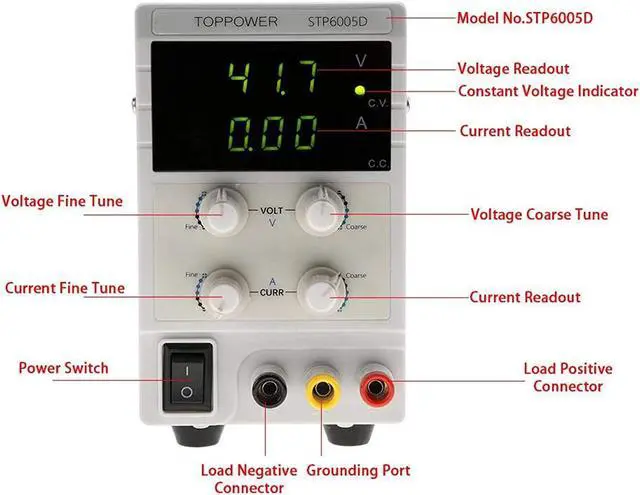

4. Dual-display head displays output voltage and output current independently, multiple protection functions including current-limiting buck, short-circuit protection, over-temperature protection.

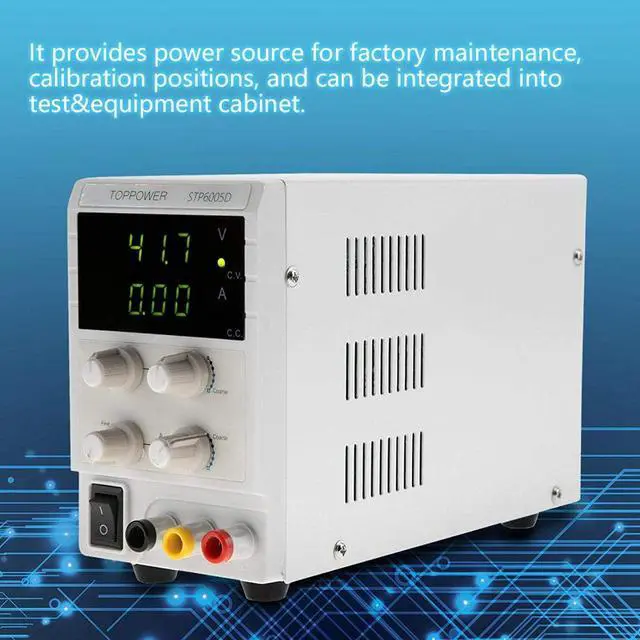

5. It provides power source for factory maintenance, calibration positions, and can be integrated into test&equipment cabinet.
6. Available in three styles for your choice.

Specification:
Condition: 100% Brand New
Model: STP6005D
Working Temperature: 0 ~ 40
Relative Humidity: 80%
Fuse: F5AL, 250VAC
Output Voltage: 0-60V
Output Current: 0-5A

Voltage Regulation:
Regulation Rate: 0.5% + 3mV
Load Regulation Rate: 0.1% + 3mV (Rated Current 3A)
0.2% + 5mV (Rated Current> 3A) Ripple and Noise: 50mVrms (5Hz ~ 1MHz)
Current Regulation:
Regulation Rate: 0.2% + 3mA
load Regulation Rate: 0.2% + 6mA
Ripple and Noise: 50mArms
Restore: 300ps (with of 50% regulation rate, 0.5A)
High Voltage Test: Leakage Current 10mA (test condition: input to ground 1500VAC/1s)
Insulation Resistance: Insulation Resistance 7M (test condition: input 500VDC/5s to ground) Temperature
