About the light
LUTEC LED security lights is a part of LUTEC's continuing pursuit for creating highly efficient and convenient products for our customers.
A more sensitive, durable aluminum material design, will give you a better experience.
Also it is powered by LED lamp beads, ensure to provide better illumination(soft light, anti-glare); IP65 Waterproof, perfect for your outdoor usage.
MOTION ACTIVATED OUTDOOR FLOOD LIGHT
TEST MODE
Tests the sensor’s functionality even during daylight hours.
After motion stops, the light will remain on full brightness for 5 seconds and then turn to low brightness.

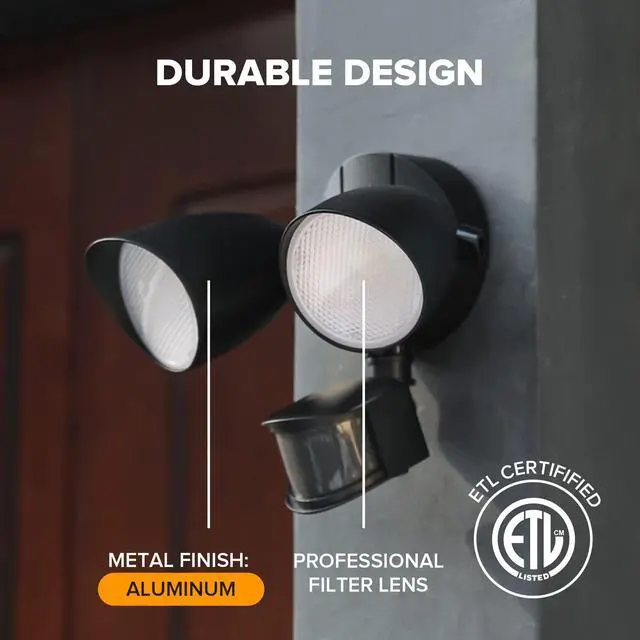

- Main Material: Aluminium(except motion sensor head)+PC

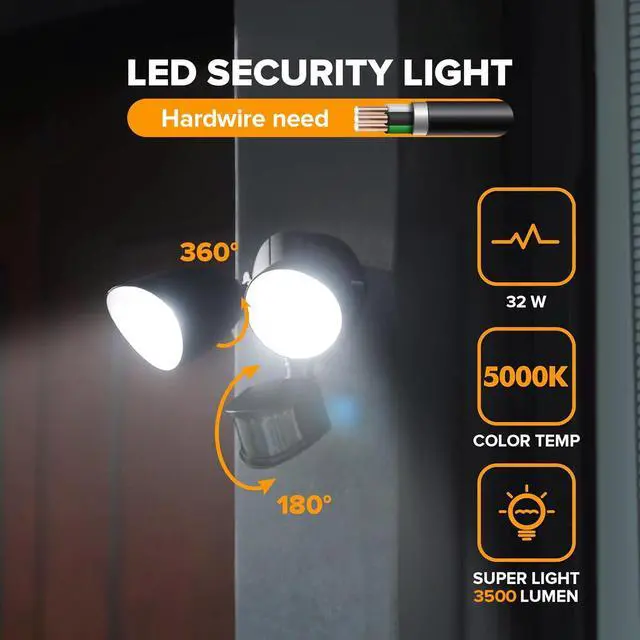

- Watt: 32W(whole light fixture)
- Lumen: 3500LM(whole light fixture)
- Color Temp: 5000K(daylight)
- Certification: ETL Listed

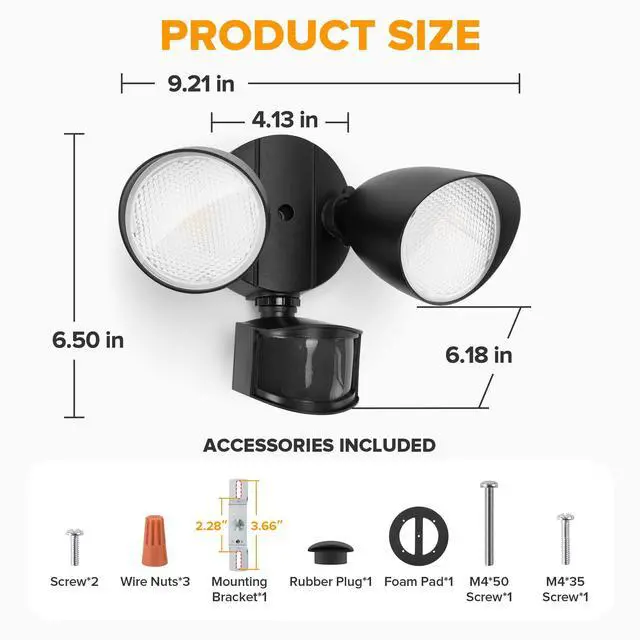

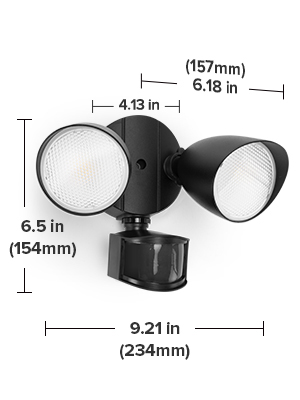

- Base Size("): 4.13“X4.13"
- IP Rating: IP65 Waterproof
- Voltage: AC 120V (110V-130V) and required to be hardwired to the junction box
SECURITY MODE

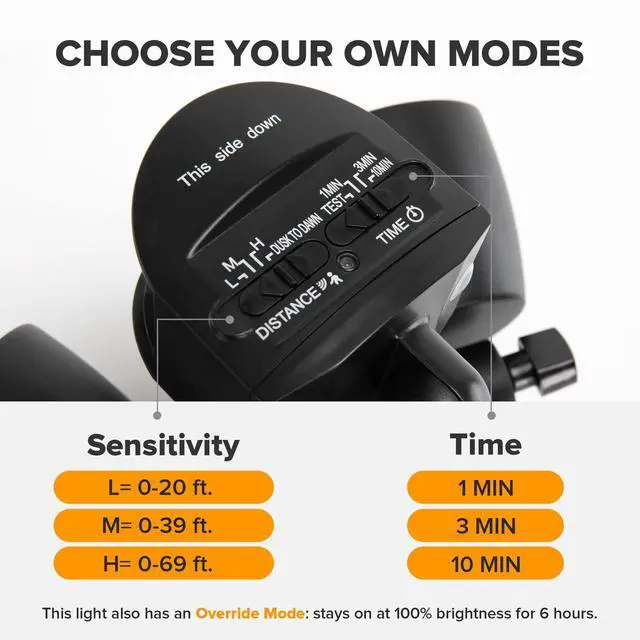

Adjust the “DISTANCE” to L/M/H, you will enter the SECURITY MODE.

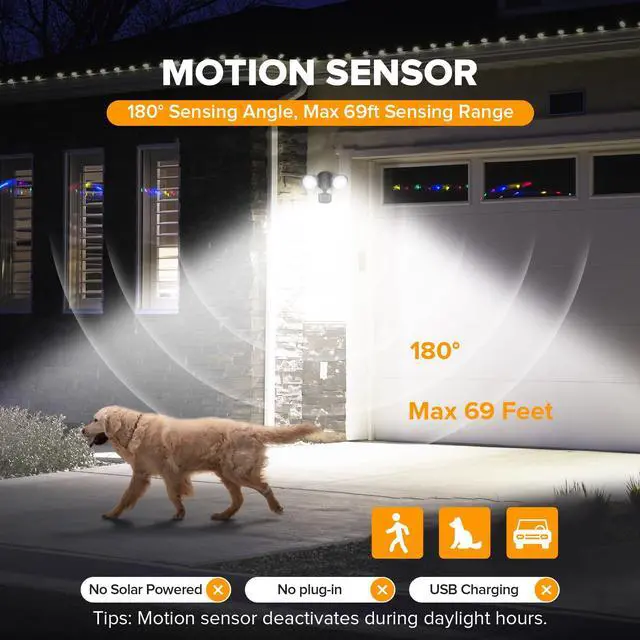

Turns on at full brightness at night only when motion is detected.

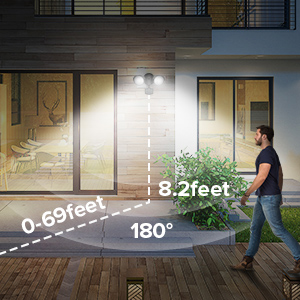

Deactivates during daylight hours. Recommended installation height: 8.2 feet

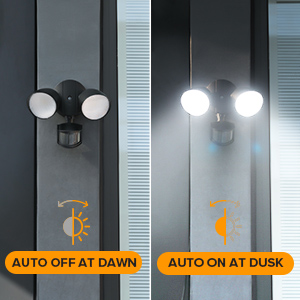

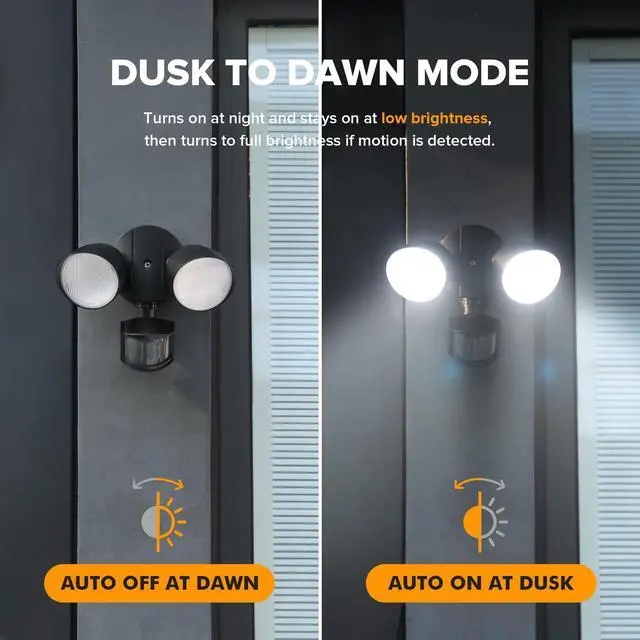

DUSK TO DAWN MODE
In D2D mode, light turns on at night and stays on at low brightness(20%), then turns to fullbrightness(100%) if motion is detected.
The holding time at high brightness can be customized from 1/3/10 MIN.
Deactivates during daylight hours.

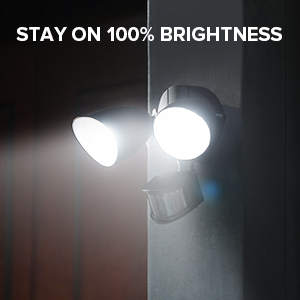

MANUAL OVERRIDE MODE
Stay on at 100% brightness, suitable for nighttime gatherings in the courtyard.
Turn the light on manually from the wall switch. With the fixture already in the ON position, continuously flip the wall switch off and then back on twice in 3 seconds.
Warm tips:
Manual mode requires a wall switch to operate, please make sure that the light fixture in your home is equipped with a normal switch, not only controlled by the sensor.

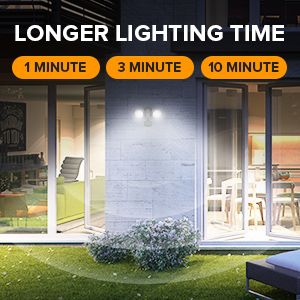

LONGER LIGHTING TIME
When the security light is triggered, the lighting time is 1, 3 or 10 minutes, which can be customized by yourself.

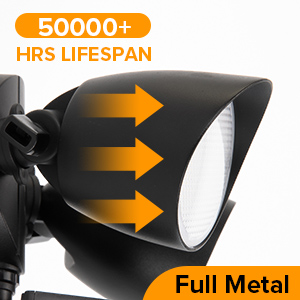

EXCELLENT HEAT DISSIPATION
Durable aluminum design, can spread the heat effectively and increase the lifespan up to 50,000+ Hours.

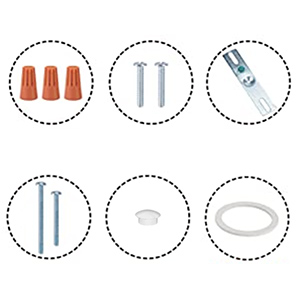

ACCESSORIES INCLUDED
3 X 18AWG Wire connectors
2 X Outler Box Screw
1 X Mounting Bracket
1 X M4*50 Fixture Screw
1 X M4*35 Fixture Screw
1 X Rubber Stopper
1 X Gasket
Q1: Is this floodlight solar-powered or plug-in ?
A1: No. This is a hardwired light that needs to be connected to your home electrical system.
Q2: Why doesn’t the light turn on during the day?
A2: This is normal in Auto Mode or Dusk to Dawn Mode. Use Test Mode for daytime testing.
Q3: Can this be used under rain or snow?
A3: Absolutely! It’s IP65 waterproof and designed for all outdoor conditions.
Q4: Why does the light not stay on continuously? How can I enable constant lighting?
A4: The light has a Manual Override Mode for constant-on. Use Manual Override Mode by quickly flipping the wall switch OFF and ON within 3 seconds.
To activate: Flip the wall switch OFF ? ON ? OFF ? ON within 3 seconds. The light will stay on at 100% brightness for 6 hours, then return to motion sensing. Note: This only works with a wall switch. Smart plugs or motion-only controls may not support this feature.
