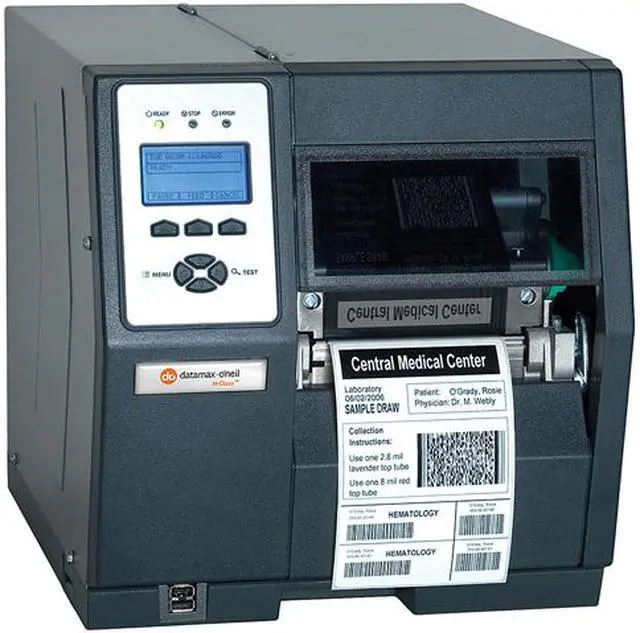

Honeywell Datamax H-Class H-4310X 4" Bi-Directional Thermal Transfer Industrial Printer - Standard Kit - Tall Version - C33-00-48000004

Thermal Transfer, 254 mms (10 ips), 12 mmps (300 dpi), 3.0" Metal Media Hub
Serial RS232, parallel bi-directional, ethernet-wired LAN 10/100, USB 2.0 compatible; USB-Host, SDIO memory slot
They’re built for high-volume and high-resolution labeling applications
H-Class printers excel in the high productivity category with easy-to-maintain modular features and field-installable options
Features a gear-driven design and durable die-cast aluminum frame; clear side window lets you easily monitor media supply levels
Large 240 x 320 graphical LCD display makes navigating menus and data collection easy
Multi-language menu available in English, Spanish, German, Italian and French
Supports coated-side-in or coated-side-out ribbons without the purchase of any options or the need for re-configuration resulting in easier ribbon inventory management
Includes 110v Black Power Cord w/ U.S. Plug

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

DATAMAX-O'NEIL C33-00-48000004 DMX,H-4310X,300 DPI,10 IPS,SER PAR/USB/SDIO/ETHERNET,TT,8MB

General
Brand	Honeywell
Model	C33-00-48000004

Printer
Print Technology	Direct Thermal/Thermal Transfer Printer
Printer Type	Industrial
Print Speed	10 in/s
Memory	16MB SDRAM/8MB Flash
Fonts Included	Resident Fonts: Ten alphanumeric fonts from 2.5- to 23-point including OCR-A, OCR-B, CG Triumvirate smooth font from AGFA; Scalable Fonts: CG Triumvirate Bold Condensed, CG Triumvirate & CG Times with Cyrillic, Greek Arabic and Hebrew character support Downloadable Font Types: True-Type, Bitmap Character Set: More than 50 resident character sets: Unicode/UTF8 support Font Expansion/Rotation: All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
Barcode Type	Linear: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Postnet, UCC/EAN Code 128, Telepen, Planetcode, FIM, USPS-4 State; 2D Symbologies: MaxiCode, PDF417, USD-8, Datamatrix, QR Code, Codeablock, Code 16k, Aztec, TLC 39, Micro PDF417, GS1 Databar
Ribbon Characteristics	Ribbon Width Range: 101.6 mm (4 in) models: 25.4 mm (1.0 in) to 114.3 mm (4.5 in); 152.4 mm (6 in) models: 50.8 mm (2.0 in) to 170.2 mm (6.7 in); 203.2 mm (8 in) models: 76.2 mm (3.0 in) to 228.9 mm (9.0 in) Ribbon Core: 25.4 mm (1.0 in) Ribbon Length: 600 m (1,968 ft) Coated-side-in or coated-side-out

Media Handling
Media Type	Media type: Roll-fed: 203.2 mm (8.00") max O.D. on a 76.2 mm (3.00") core; fan-fold stock: accepted from rear and bottom of printer; die-cut or continuous labels; perforated or continuous tag/ ticket stock
Media sizes supported	Media Width Range: 101.6 mm (4 in) models: 25.4 mm (1.0 in) to 118.1 mm (4.65 in); 152.4 mm (6 in) models: 50.8 mm (2 in) to 170.2 mm (6.7 in); 203.2 mm (8 in) models: 76.2 mm (3 in) to 228.9 mm (9.0 in) Minimum Media Length: Tear-off and rewind modes: 6.4 mm (0.25 in) Peel and cutter modes: 25.4 mm (1.0 in) Media Thickness Range: 0.0635 mm (0.0025 in) to 0.254 mm (0.01 in) Media Sensing: “See through” for liner-backed die-cut labels and tags, reflective sensor for black- mark label media Label Backfeed: For use with optional cutter and peel & present

Connections
Interface	Ethernet / Parallel / Serial / USB

Dimensions & Weight
Dimensions	19.30" x 12.60" x 16.40"
Weight	53 lbs.

Additional Information
First Listed on Newegg	March 02, 2018
