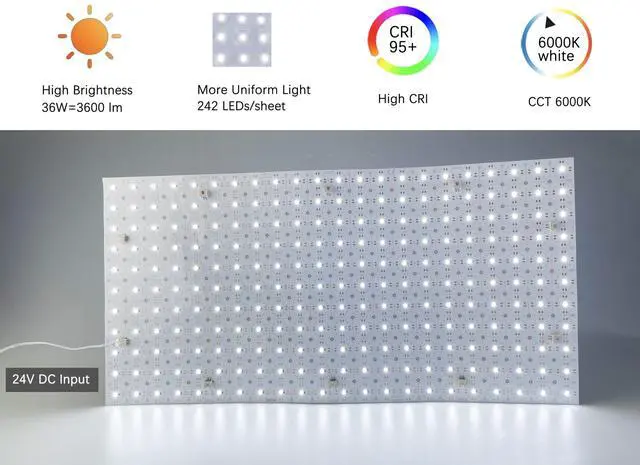

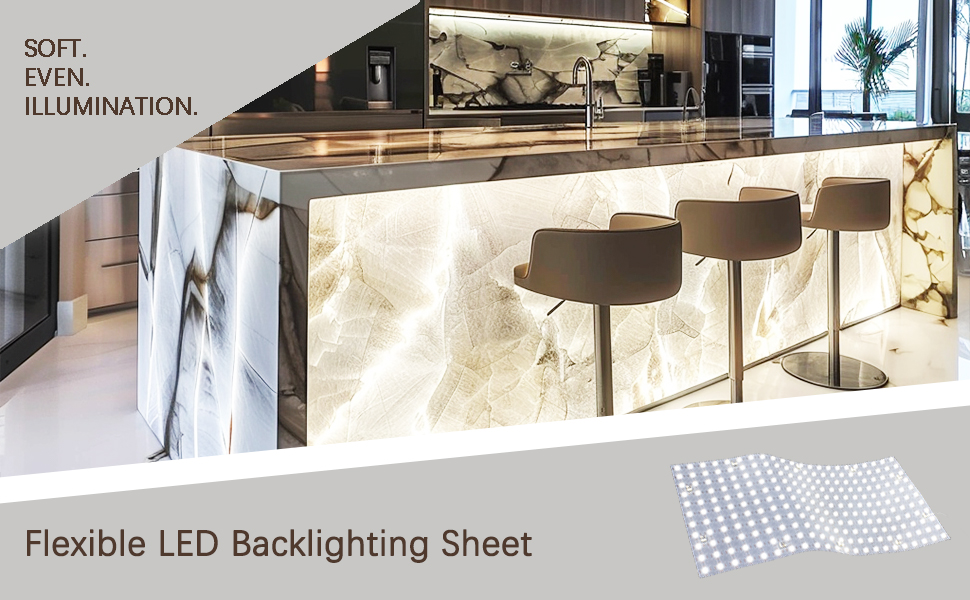

Valikiy LED backlight sheets provides stable, enduring brightness and true-to-life colors, bring you a gentle and inviting lighting ambiance.

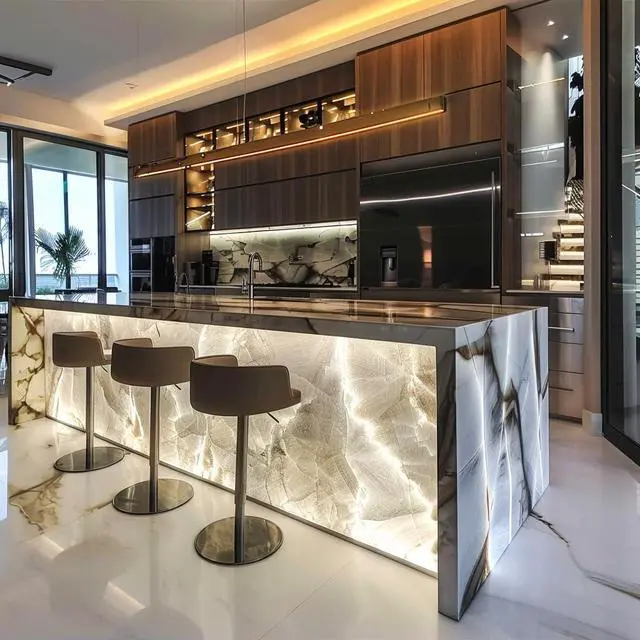

This led light sheet provides perfect backlighting solutions for home kitchen countertops bartops also commercial large scaled backlighting projects
- Valikiy LED backlighting sheets are thin, flexible and daisy-chainable, producing bright, even illumination across its surface.

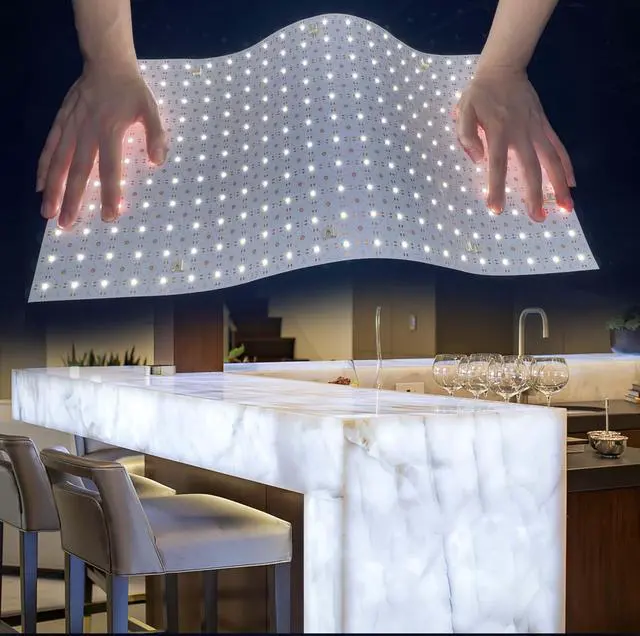

- These led light sheets are specilly designed to backlit translucent materials such as Onyx, marble, displays lightboxes, showcases, billboards etc.
- All of the LED sheets are dimmable, flexible, cuttable, and backed with 3M adhesive strips and pre-aligned mounting holes which makes them very easy to install and use. Click-in power cable and interconnectors are available for easy setup and installation.

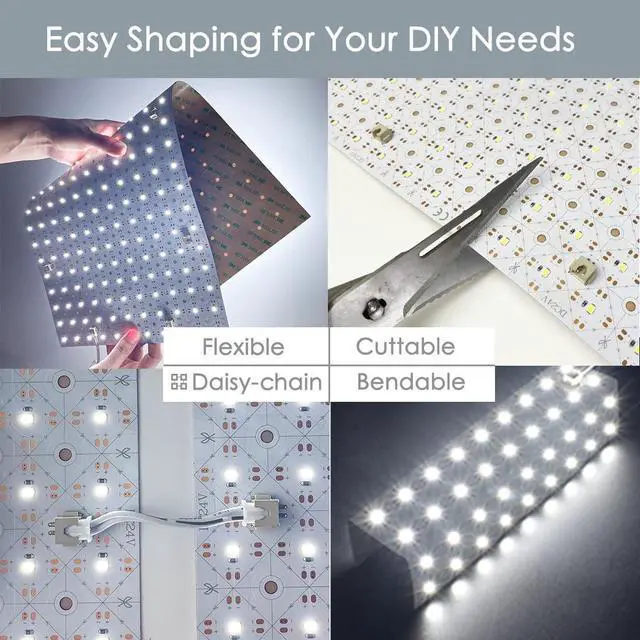

SUPER-THIN, FLEXIABLE & CUTTABLE
- Only 0.87 inches (1mm) thinkness, super thin and light weight.
- Cut single LEDs or groups while maintaining illumination of all other LEDs.
ULTRA-BRIGHT & UNIFORM LIGHTING
- High efficiency 100LM/W, each led sheet eimits 3600 lumens.
- High quality led with CRI over 95+ , restore the true color natrual stone.
6000K BRIGHT WHITE LIGHT
- Reveals the most inherent colors and veining of natural stone. Create a cool and sterile atmosphere, enhance the visibility.
- Long LED lifespan over 50,000+ hours
FAST & EASY INSTALLATIONS
- Cut led sheet to size right at the job site.

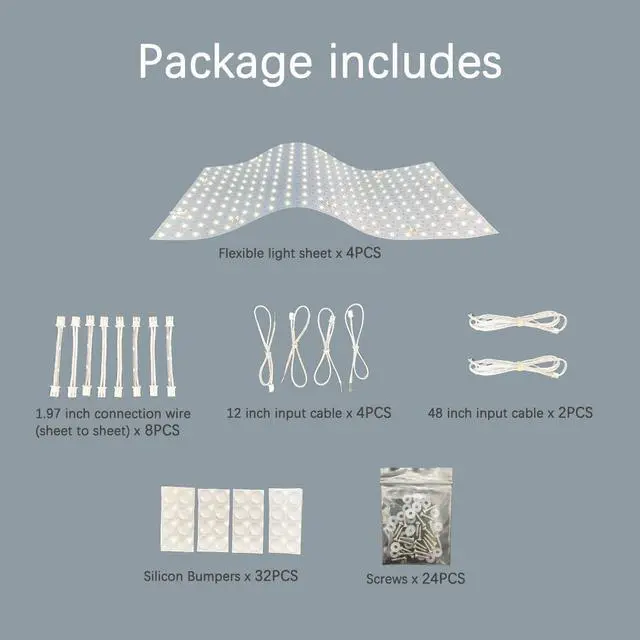

- Connect up to eight light sheets with the included plug & play sheet-to-sheet connection wires.
Technical Data
 36W 6000K Cool White Flexible LED Backlight Sheet |  36W 6000K Cool White IP54 Waterproof Flexible LED Backlight Sheet |  36W 3000K Warm White Flexible LED Backlight Sheet |  12W 6000K Cool White Flexible LED Backlight Sheet |  12W 3000K Warm White Flexible LED Backlight Sheet | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — no data |
| INPUT VOLTAGE | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| WATTAGE | 36W per sheet (28.8w/ft²), 0.15W per LED | 36W per sheet (28.8w/ft²), 0.15W per LED | 36W per sheet (28.8w/ft²), 0.15W per LED | 12W per sheet (9.3w/ft²), 0.05W per LED | 12W per sheet (9.3w/ft²), 0.05W per LED |
| Color Temperature | 6000K | 6000K | 3000K | 6000K | 3000K |
| Light Output | 3600 lumens per sheet | 3600 lumens per sheet | 3600 lumens per sheet | 1200 lumens per sheet | 1200 lumens per sheet |
| CRI | 95+ | 95+ | 95+ | 95+ | 95+ |
| Dimension | 19.3" L x 9.65" W | 19.3" L x 9.65" W | 19.3" L x 9.65" W | 19.3" L x 9.65" W | 19.3" L x 9.65" W |
| LED Qty | 242 LEDs/sheet | 242 LEDs/sheet | 242 LEDs/sheet | 242 LEDs/sheet | 242 LEDs/sheet |
| LED Type | 2835 high-efficiency LED | 2835 high-efficiency LED | 2835 high-efficiency LED | 2835 high-efficiency LED | 2835 high-efficiency LED |
| Life span | >50,000 hours | >50,000 hours | >50,000 hours | >50,000 hours | >50,000 hours |
| Enviroment | IP20, Indoor dry location | IP54 damp location for option | IP20, Indoor dry location | IP20, Indoor dry location | IP20, Indoor dry location |
Valikiy LED backlight sheets provides stable, enduring brightness and true-to-life colors, bring you a gentle and inviting lighting ambiance.
This led light sheet provides perfect backlighting solutions for home kitchen countertops bartops also commercial large scaled backlighting projects
- Valikiy LED backlighting sheets are thin, flexible and daisy-chainable, producing bright, even illumination across its surface.
- These led light sheets are specilly designed to backlit translucent materials such as Onyx, marble, displays lightboxes, showcases, billboards etc.
- All of the LED sheets are dimmable, flexible, cuttable, and backed with 3M adhesive strips and pre-aligned mounting holes which makes them very easy to install and use. Click-in power cable and interconnectors are available for easy setup and installation.
SUPER-THIN, FLEXIABLE & CUTTABLE
- Only 0.87 inches (1mm) thinkness, super thin and light weight.
- Cut single LEDs or groups while maintaining illumination of all other LEDs.
ULTRA-BRIGHT & UNIFORM LIGHTING
- High efficiency 100LM/W, each led sheet eimits 3600 lumens.
- High quality led with CRI over 95+ , restore the true color natrual stone.
6000K BRIGHT WHITE LIGHT
- Reveals the most inherent colors and veining of natural stone. Create a cool and sterile atmosphere, enhance the visibility.
- Long LED lifespan over 50,000+ hours
FAST & EASY INSTALLATIONS
- Cut led sheet to size right at the job site.
- Connect up to eight light sheets with the included plug & play sheet-to-sheet connection wires.
Technical Data
| INPUT VOLTAGE | 24V DC |
| WATTAGE | 36W per sheet (28.8w/ft²), 0.15W per LED |
| Wires | 20AWG 2-conductor( white+ / grey striped-) |
| Color Temperature | 6000K |
| Light Output | 3600 lumens per sheet |
| Beam Angle | 120 degree |
| CRI | 95+ |

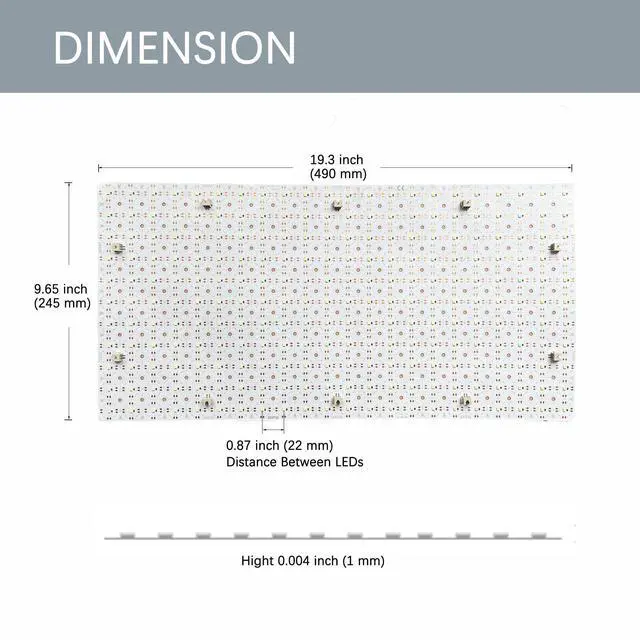

| Dimension | 19.3" L x 9.65" W |
| LED Qty | 242 LEDs/sheet |
| LED Type | 2835 high-efficiency LED |
| Cut Increments | Every 22.30 mm (0.87”) |
| Mounting Methods | 3M Double Sided Tape or Screw on |
| Life span | >50,000 hours |
| Working temperature | -4ºF to 113ºF (-20ºC to 45ºC) |
| Enviroment | IP20, Indoor dry location |
36W 6000K Cool White Flexible LED Backlight Sheet | 36W 6000K Cool White IP54 Waterproof Flexible LED Backlight Sheet | 36W 3000K Warm White Flexible LED Backlight Sheet | 12W 6000K Cool White Flexible LED Backlight Sheet | 12W 3000K Warm White Flexible LED Backlight Sheet | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — no data |
| INPUT VOLTAGE | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| WATTAGE | 36W per sheet (28.8w/ft²), 0.15W per LED | 36W per sheet (28.8w/ft²), 0.15W per LED | 36W per sheet (28.8w/ft²), 0.15W per LED | 12W per sheet (9.3w/ft²), 0.05W per LED | 12W per sheet (9.3w/ft²), 0.05W per LED |
| Color Temperature | 6000K | 6000K | 3000K | 6000K | 3000K |
| Light Output | 3600 lumens per sheet | 3600 lumens per sheet | 3600 lumens per sheet | 1200 lumens per sheet | 1200 lumens per sheet |
| CRI | 95+ | 95+ | 95+ | 95+ | 95+ |
| Dimension | 19.3" L x 9.65" W | 19.3" L x 9.65" W | 19.3" L x 9.65" W | 19.3" L x 9.65" W | 19.3" L x 9.65" W |
| LED Qty | 242 LEDs/sheet | 242 LEDs/sheet | 242 LEDs/sheet | 242 LEDs/sheet | 242 LEDs/sheet |
| LED Type | 2835 high-efficiency LED | 2835 high-efficiency LED | 2835 high-efficiency LED | 2835 high-efficiency LED | 2835 high-efficiency LED |
| Life span | >50,000 hours | >50,000 hours | >50,000 hours | >50,000 hours | >50,000 hours |
| Enviroment | IP20, Indoor dry location | IP54 damp location for option | IP20, Indoor dry location | IP20, Indoor dry location | IP20, Indoor dry location |
