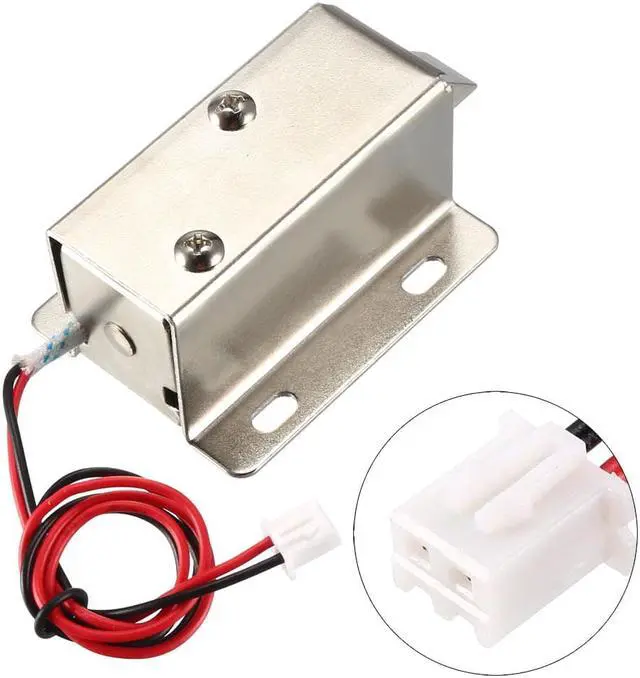

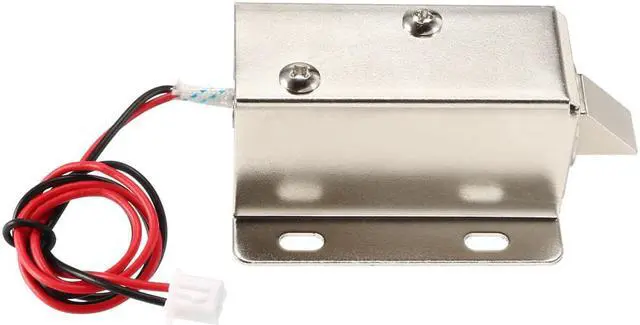

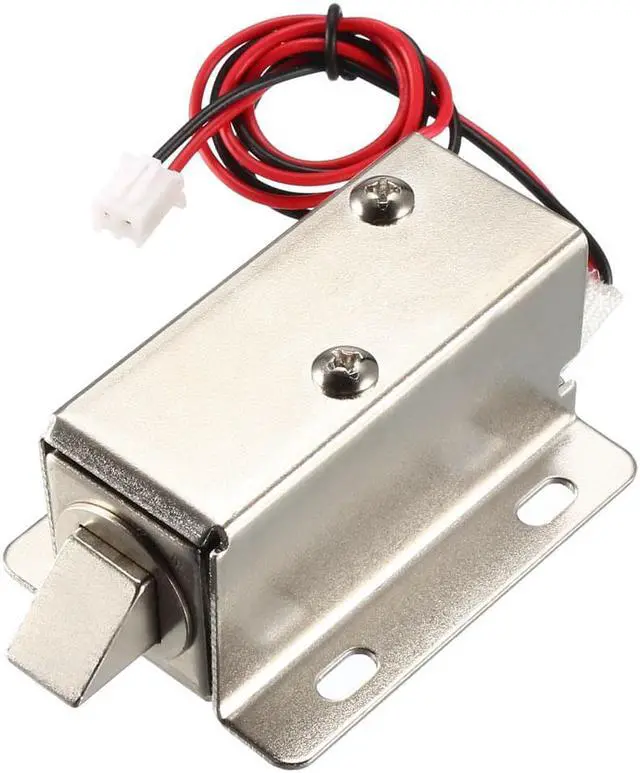

DC 24V 0.8A 11.4mm Electromagnetic Solenoid Lock Assembly for Electirc Lock Cabinet Door Lock

Description:

- Easy to install for the electric door lock or other automatic door lock systems with the mounting board.

- Widely used for the cabinet lock,locker locks,file cabinet locks ,luggage locks,electric locks,door locks,solenoid locks,drawer,newspaper boxes lock ,sauna lock,locker electromagnetic.

KEY_TAB

Specification:

- Voltage & Current : DC24V 0.8A

- Stroke & Force : 11.4mm, 350g

- Action Type: Push Pull

- Energized Forms: Intermittent

- Lock Tongue Size: 11.4 x 10 x 10mm / 0.45 x 0.39 x 0.39inch (L*W*H)

- Body Size: 54 x 42 x 30mm / 2.13 x 1.65 x 1.18inch (L*W*H)

- Mounting Hole Size: 7 x 3.5mm / 0.28 x 0.14 inch (L*W)

- Mounting Hole Distance: 30 x 32mm / 1.18 x 1.26 inch (L*W)

- Package Content : 1 x Electromagnet Solenoid Lock

KEY_TAB

Instructions for Use:

- When the circuits is charged, the lock tongue will pull back by 11.4mm and the door will be unlocked.

- After the circuits is powered off, the lock tongue will extend to lock the door.

- The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.

- When it has been connected the wire and the current is available, the electric lock can control door's opening and closing.
