Spring Loaded Latch Pin 5.71", Iron Security Latch Sliding Barrel Bolt Latch Lock for Gate Door Shed Window

The spring loaded latch lock is a durable lock hardware designed for door, window, cupboard, shed, bathroom, bedroom to provide secure and quiet locking performance.

Specification
Color: Silver Tone
Material: Iron

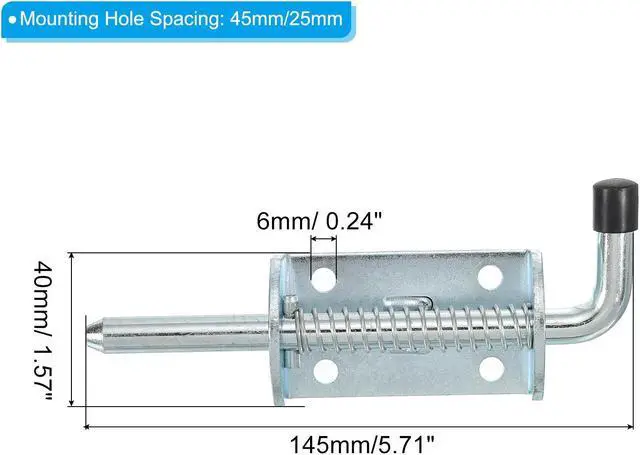

Total Size: 145*40mm/ 5.71*1.57inch (L*W)
Bolt Diameter: 10mm / 0.39inch
Mounting Hole Dimension: 6mm/ 0.24inch
Mounting Hole Spacing: 45mm/25mm
Packing List: 1 x Spring Loaded Latch

Advantage

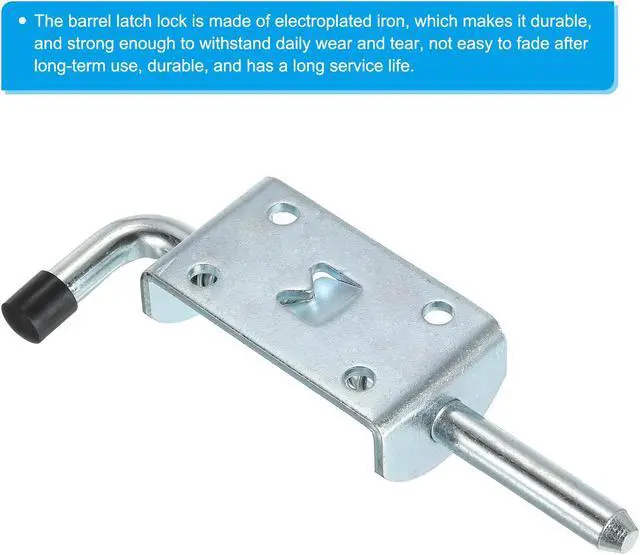

1. The barrel latch lock is made of electroplated iron, which makes it durable, and strong enough to withstand daily wear and tear, not easy to fade after long-term use, durable, and has a long service life.
2. With a sturdy barrel bolt design, this latch provides a secure locking mechanism that keeps your door firmly closed.

Instruction
The spring bolt latch is designed with a groove on the button, allowing you to easily pull out the bolt and rotate it 90 degrees to stop at the groove to open the door. Not limited by the installation angle, vertical and horizontal installation are both suitable. (Screws are not included)

NOTE: Make sure to measure correctly when installing the lock, including door thickness, etc.
