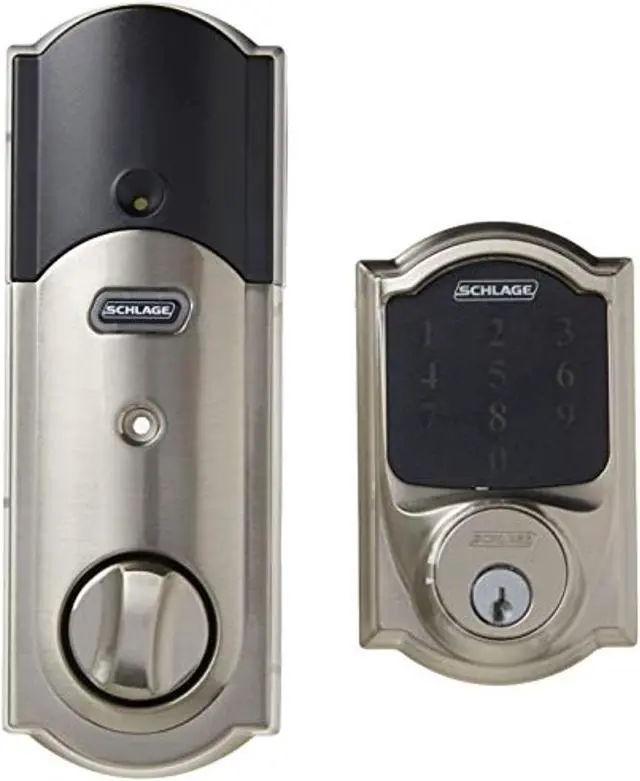

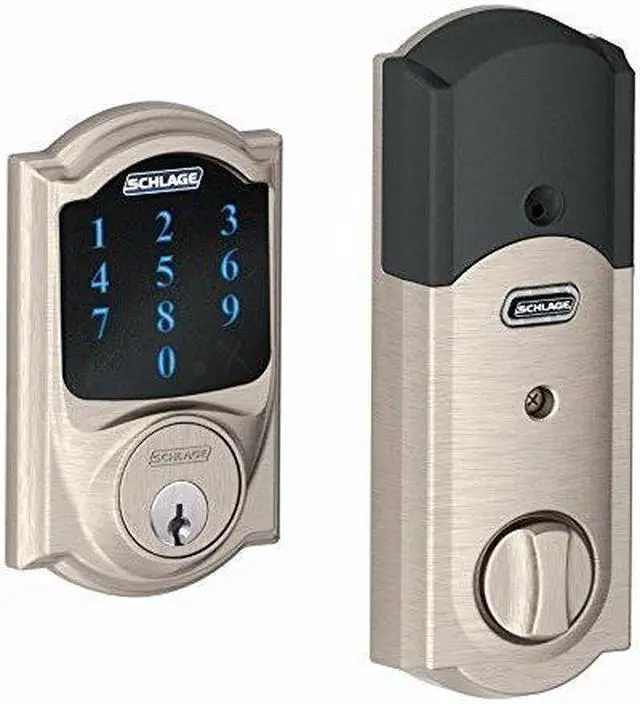

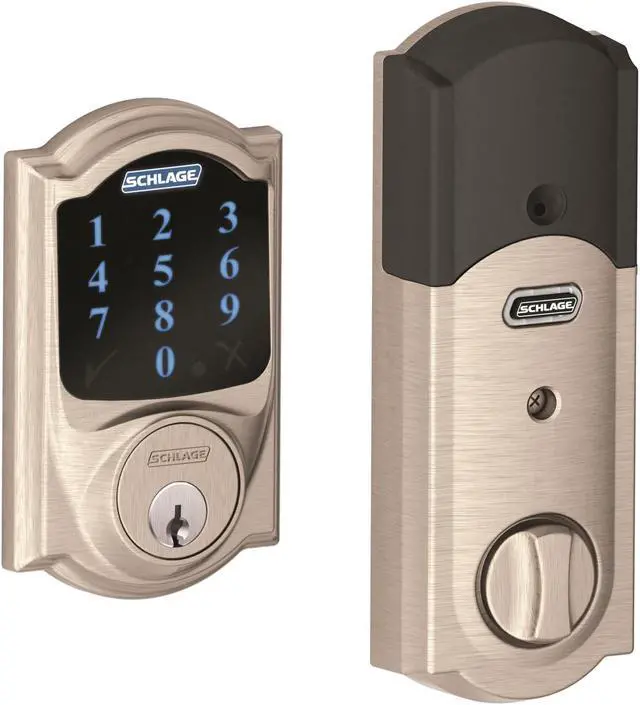

Schlage Connect Z-Wave Deadbolt with Built-In Alarm, Camelot Style, Satin Nickel (BE469NX CAM 619)

Featuring built-in Z-Wave technology and integrated audio alerts, the Schlage Connect Z-Wave Deadbolt with Built-In Alarm (Camelot Style) makes it easy to feel more secure at home. When you enter your user code into the deadbolt’s touchscreen keypad, the heavy-duty motorized locking bolt automatically locks/unlocks. You can also operate the lock through your Z-Wave network.

- Motorized deadbolt with touchscreen keypad and alarm
- Stores up to 30 user codes, 4-8 digits long

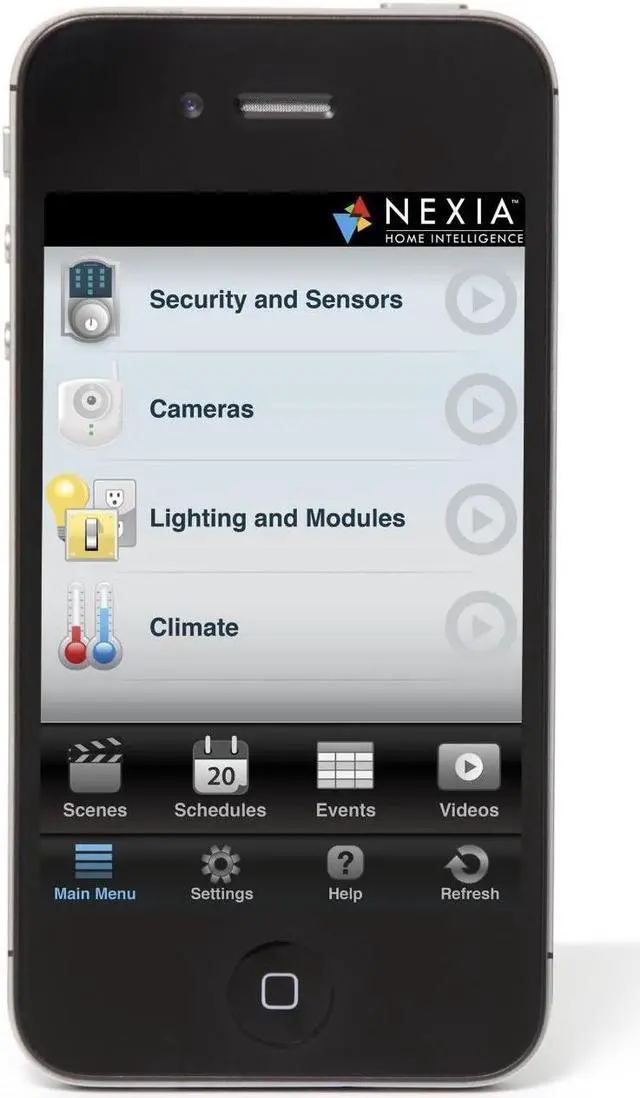

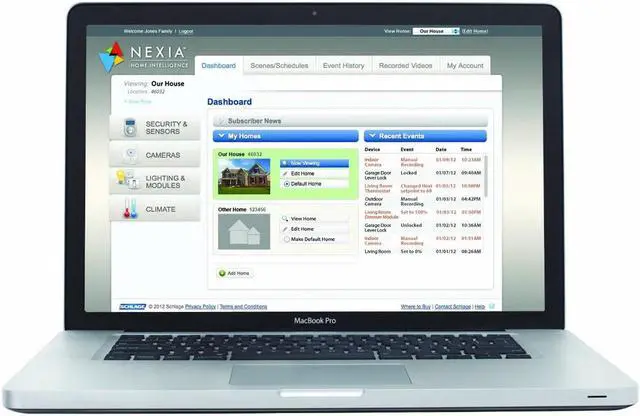

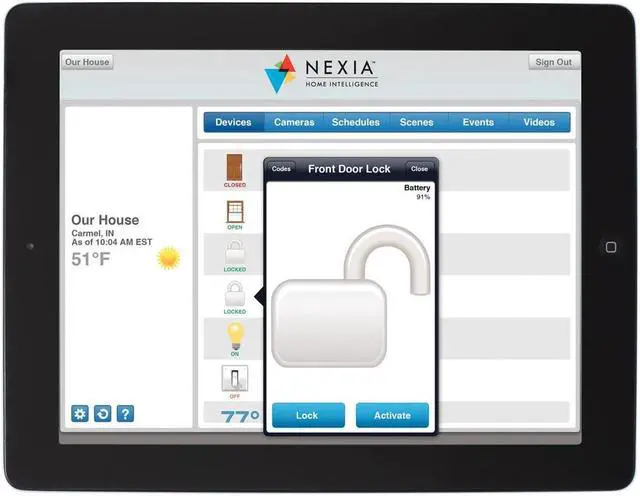

- Built-in Z-Wave technology for network integration
- Meets ANSI Grade 1 security standards
- Anti-pick shield prevents tampering
- Battery-powered, no wiring required

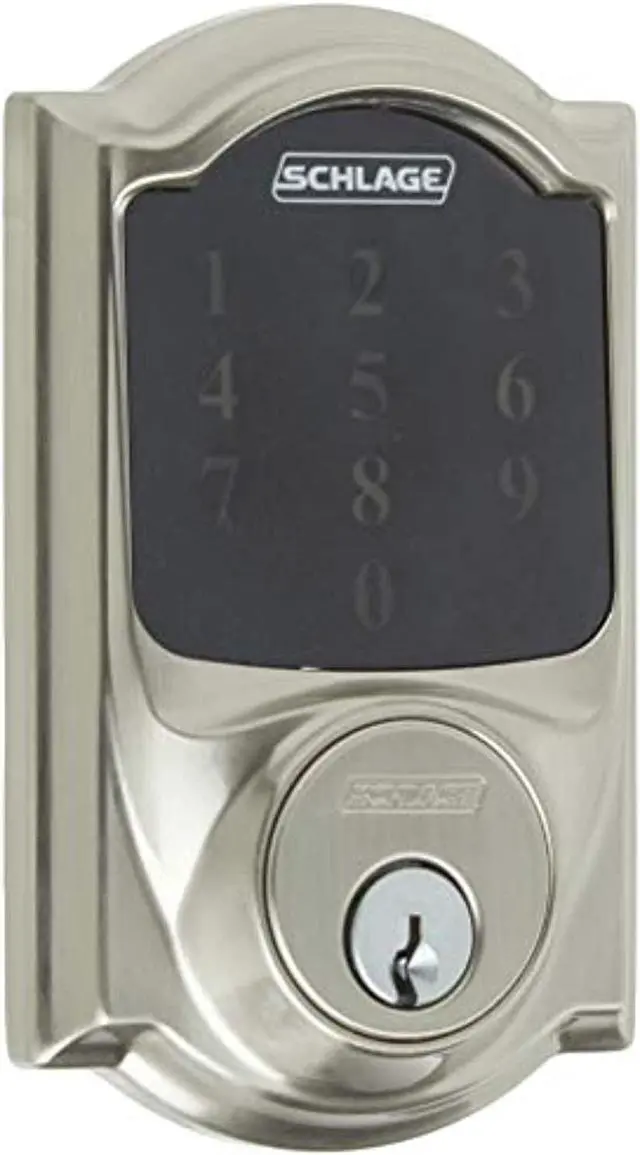

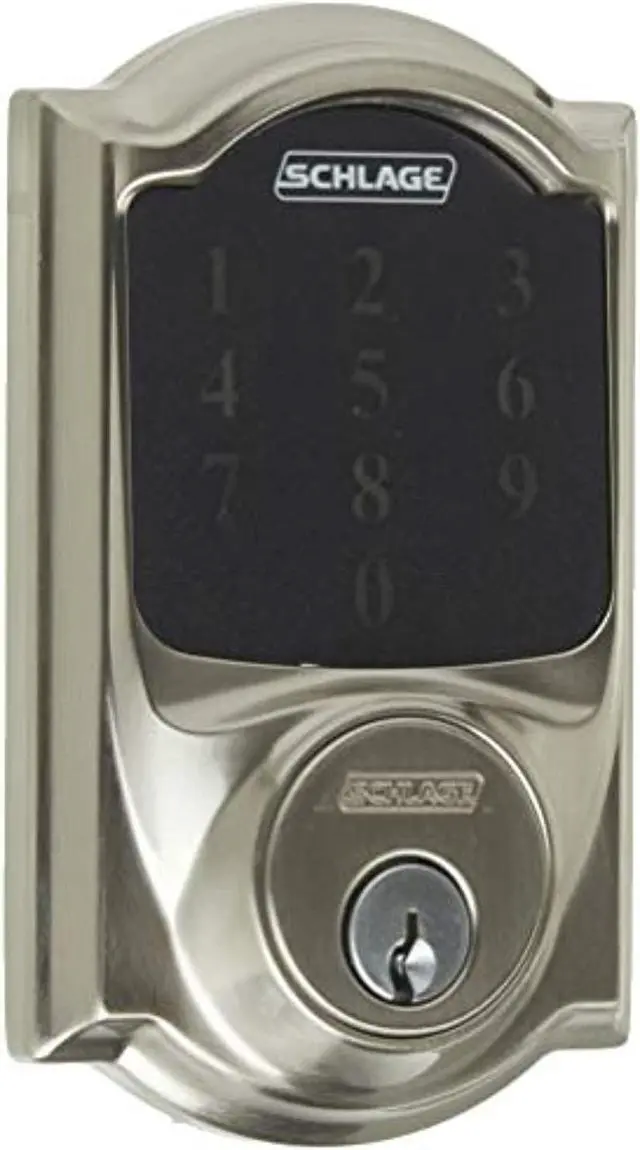

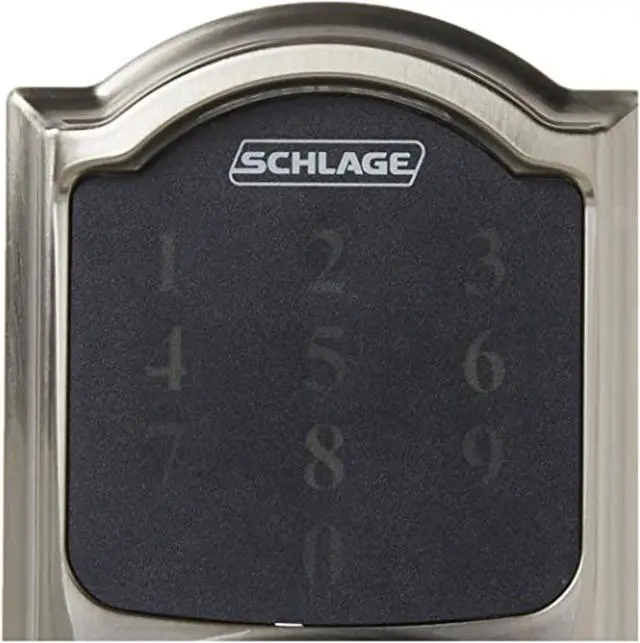

The Schlage Connect touchscreen deadbolt has achieved the ANSI Grade 1 security rating, the highest rating offered to residential locks. In addition to exceptional durability, the deadbolt’s resistive touchscreen has a matte finish to prevent fingerprints/smudges, keeping unauthorized users from seeing which digits you’ve pressed.

This model provides built-in alarms to alert you to one of three selectable events: 1) activity of any kind, such as a code being entered, 2) tampering, and 3) forced entry. Choose the event you want to monitor, and if the lock detects an occurrence, it will immediately emit a loud audible alert.

Installation Details

The Schlage Connect Z-Wave Deadbolt is simple to install; all you need is a screwdriver to remove your old lock and screw in your new one. The deadbolt is powered by four standard AA alkaline batteries (included), so no wiring is required.

Contents

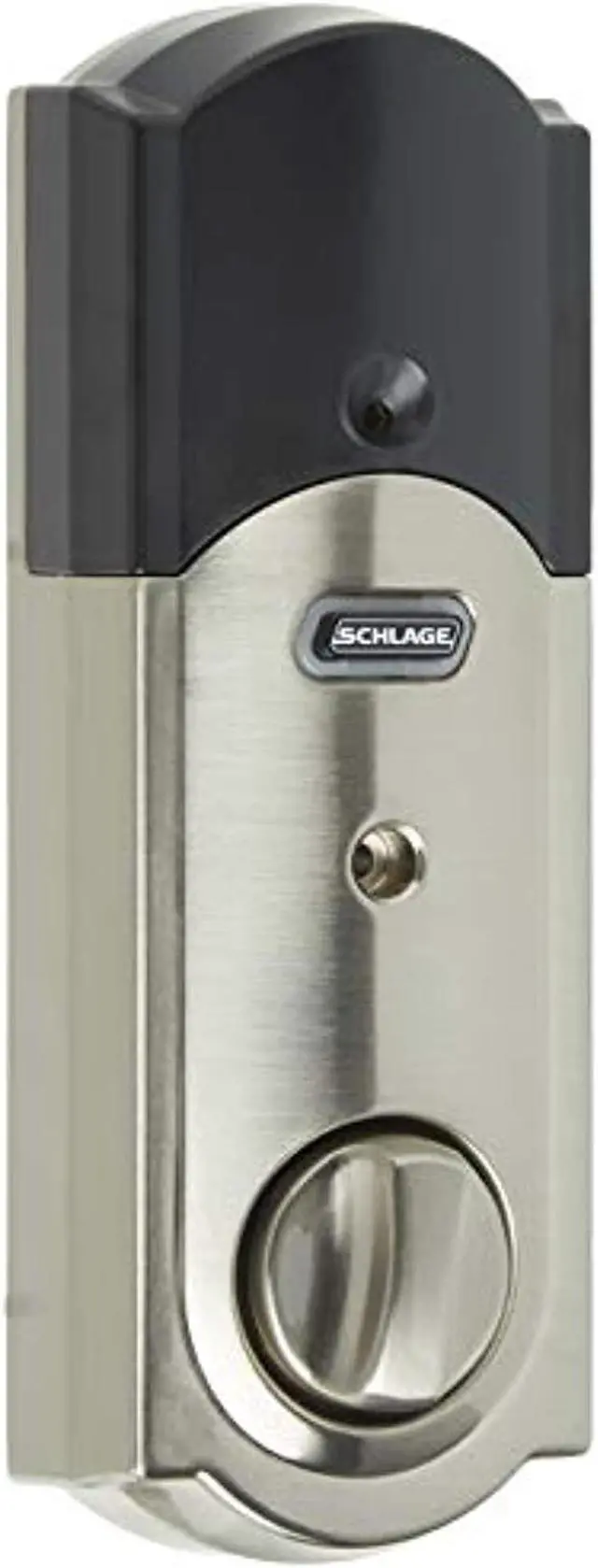

- Touchscreen Assembly
- Alarm Assembly
- Support Plate
- Door Strike
- Reinforcement Plate
- Installation Hardware
- Backup Key
- (4) Batteries

Technical Details

MPN: BE469NX CAM 619
UPC: 43156312214
Finish: Satin Nickel
Batteries: 4 x AA batteries (included)
Battery Life: 1 year avg.
Protocol: Z-Wave

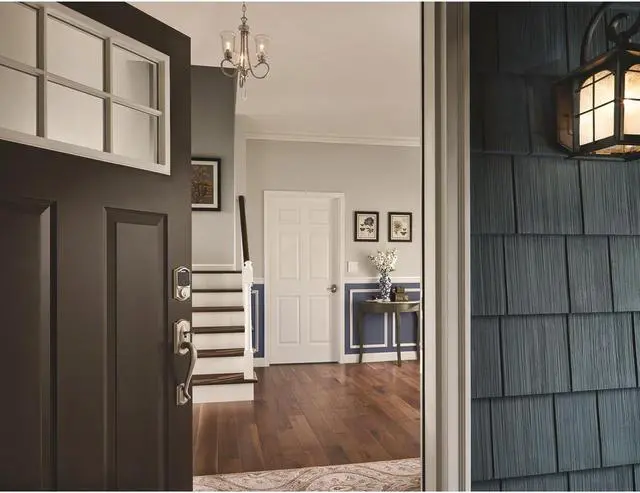

Applications: Residential single family doors
Certifications: Grade 1 ANSI/BHMA certified
Keying: 5-pin tumbler, C Keyway, 1 key included
Door Range: 1-3/8 to 1-3/4 inches (35 to 44mm) standard
Operating Temperatures:
- Outside escutcheon: -35 to 66 degrees C
- Inside escutcheon: -10C to 49 degrees C
Approvals: FCC
