ACR122U NFC RFID Reader USB Smart Card Writer SDK M-ifare Copy Clone Software Copier Duplicator Writable S50 13.56mhz UID(with 5 UID Keys)

Note:
Due to air transport restrictions, CDs are not available by default. Please download the software from the link below:
http: //download. 5yoa. com/NFCW
Software. zip

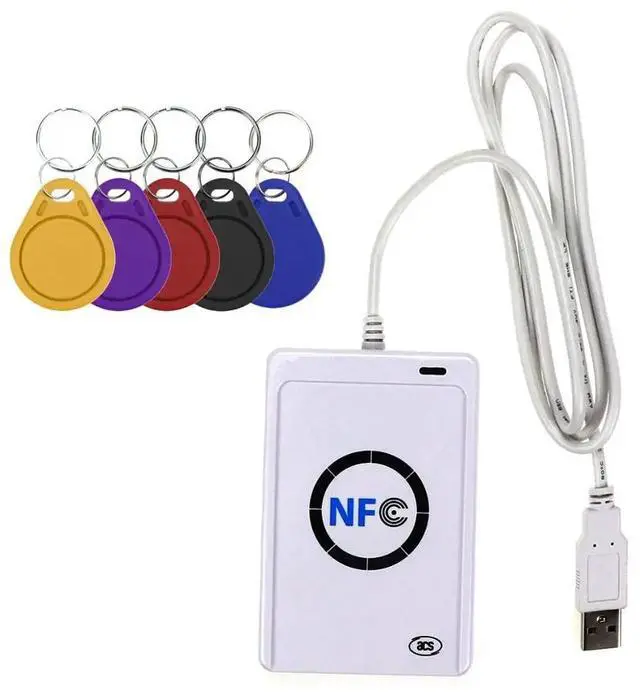

ACR122U Introduction
The ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology. It is the worlds first CCID-compliant contactless card reader/writer that follows both ISO 14443 and ISO
18092. This device is designed to support not only MIFARE and ISO 14443 Type A and B cards but also FeliCa and NFC tags.
By making use of up to 424 Kbps read/write speed for NFC tag access and up to 12 Mbps for USB full speed, ACR122U can efficiently read from and write to various contactless cards/tags. It is also PC/SC-compliant which allows interoperability across different applications and platforms.
You can experience the convenience in using ACR122U, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.
Features
USB Full Speed Interface
CCID-compliant
Smart Card Reader:
o Read/Write speed of up to 424 Kbps
o Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
o Supports ISO 14443 Part 4 Type A and B cards, MIFARE Classic, FeliCa, and all four types of NFC (ISO/IEC 18092 tags)
o Built-in anti-collision feature (only one tag is accessed at any time)
Built-in Peripherals:
o User-controllable bi-color LED
o User-controllable buzzer
Application Programming Interface:
o Supports PC/SC
o Supports CT-API (through wrapper on top of PC/SC)
Communication Flow Chart of ACR122U
The Standard Microsoft CCID and PC/SC drivers are used; thus, no ACS drivers are required because the drivers are already built inside the Windows operating system. Your computers registry settings can also be modified to be able to use the full capabilities of the ACR122U NFC Reader. See Appendix A for more details.
Software Samples
