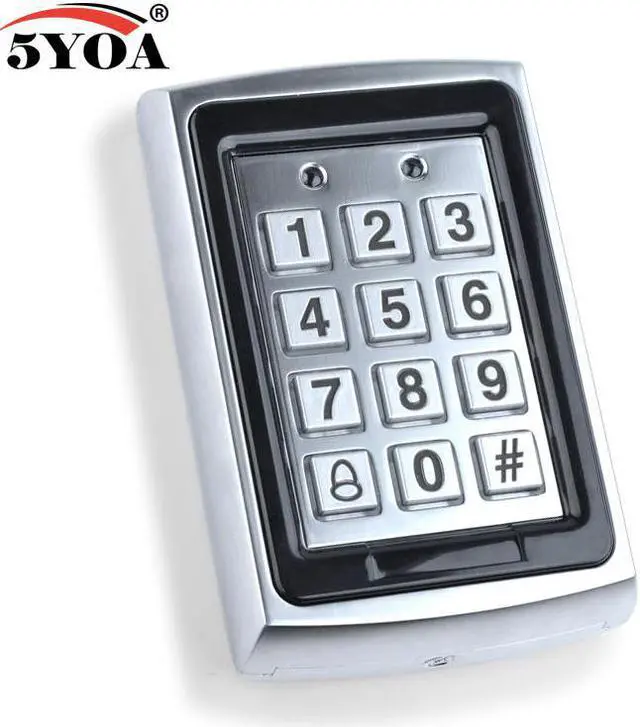

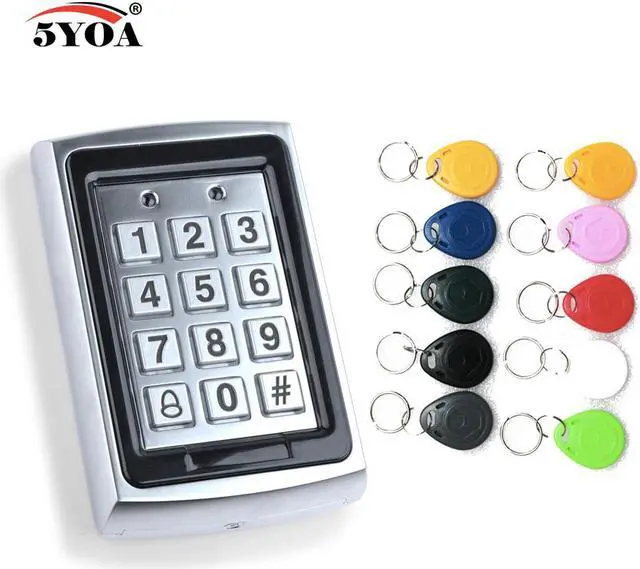

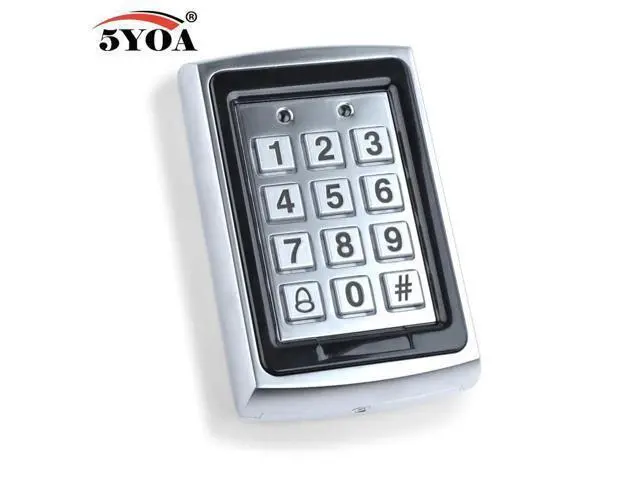

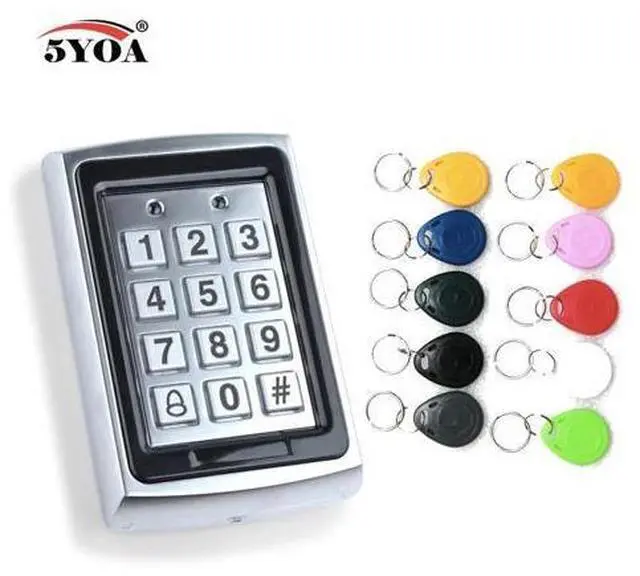

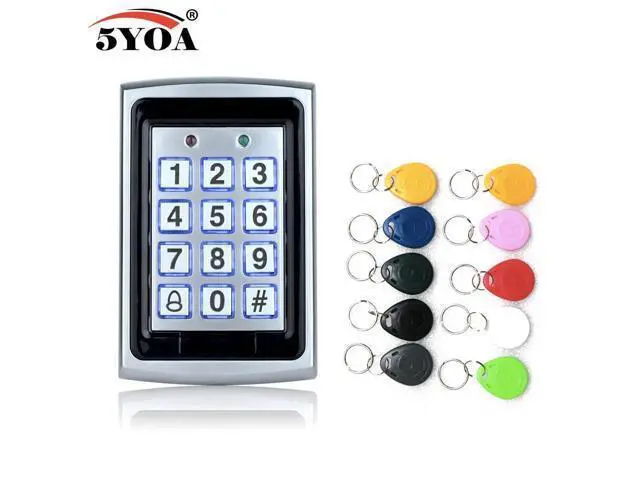

Waterproof Metal Rfid Access Control Keypad With 1000 Users+ 10 Key Fobs For RFID Door Access Control System

Features:
High quality and high security
Metallic case for better protection
Support 1000 standard users
Support entry modes: Password Only / ID Card Only / Password + ID Card
Can add card number and delete card number as your requirement
Classical appearance with useful function
Alarm function
With lock relay output, secure / normal Mode, NO / NC output
Built-in bell button can connect a external bell
Designed for home and office
Built-in proximity card reader (125KHZ ASK modulation)
Built-in keypad for PIN code entry
Sensitively and response quickly
Auxiliary input & auxiliary output
8 Auxiliary Modes including: door ajar, forced door, shunt, door monitor, normal / secure
Internal buzzer
2 status / programming interface LED'S
2 modes of operation: normal mode, secure mode
3 user levers: normal user, secure user, master user
Code search feature that helps make maintaining user codes easier
Built-in case and back tamper bell, chime, siren, battery backup, tamper output features available with IBA power supplies
Programmable siren time
Programmable lock strike release time

Specifications

:
Input Voltage:
DC 12 ~ 18V
Input Current:
- Standby: 40mA (not including attached devices)
- Max: 130mA (not including attached devices)
Frequency:
125kHz
Read range:
65mm
Modulation:
ASK at 125kHz
Compatible Cards:
ALL 26-bit EM cards
Operation Temperature:
-31C ~ 63C
Dimension:
- Approx. 76 (W) x 120 (H) x 27 (D) mm
- Approx. 3 (W) x 4-3/4 (H) x 1 (D) inch
Net Weight:
Approx. 450g
Lock Strike Relay:
5A
Auxiliary Relay:
5A
LockStrike Control Output:
Collector open output (25mA)
Auxiliary Control Output:
Collector open output (25mA)
REX:
N. O., dry contact
Auxiliary Input (In / Monitor):
N. C., dry contact in
Monitor Mode:
N. O., dry contact input modePackage
Included:
1 x Metal Door Access Control RFID Reader with Keypad
1 x User Manual
