EASY SETTINGS
- Human friendly: Function switches designed outside the device, easy to set the sound effects, working mode and delay time.
- Sound effects feedback: Built-in buzzer provides feedback on operation and can be turned off as needed.

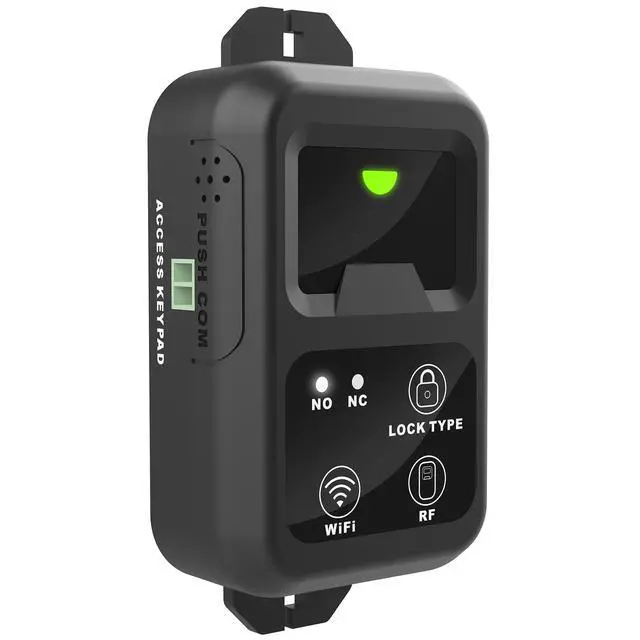

- Expansion port: The expansion port support to add a access control keypad. Please search ASIN B00UX03JCS, B00X56ALEG or B00UX03A7W to get the keypad.
FEATURES

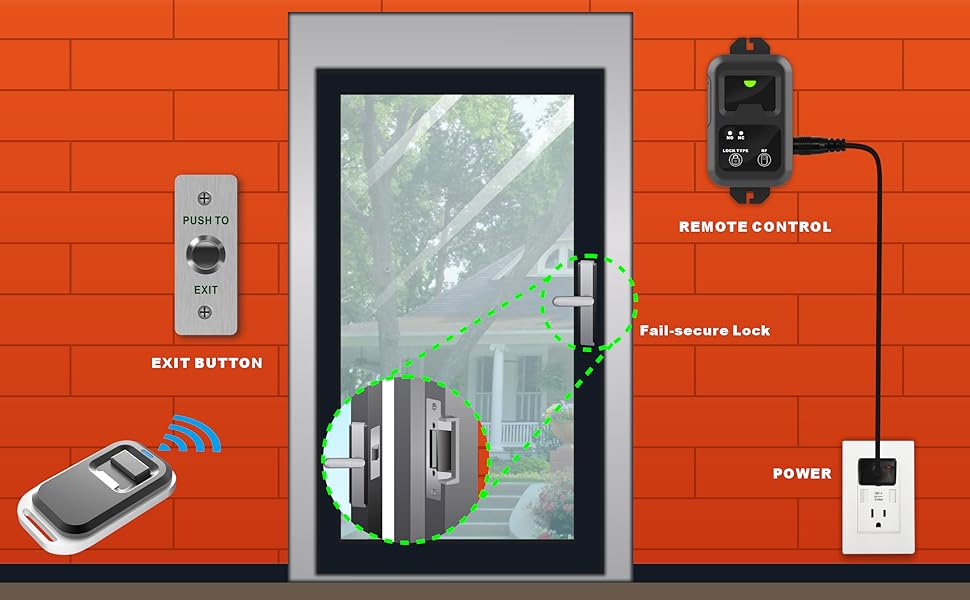

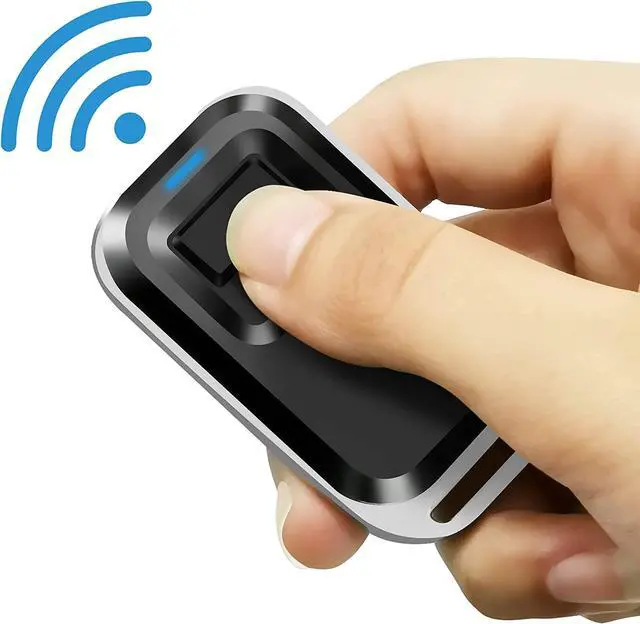

- The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can support 40 remotes, and it has a range of 164 feet.
- The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote the lock will unlock temporarily to open the door.
- Requires 2.4 GHz Wi-Fi connection. Quick & easy installation without the need of a professional.
- Tuya is a smart home center that can let you control and manage your favorite smart devices of different brands in a single APP.
- Easy Use: Transmits data to a cloud platform through the Wi-Fi Router, which enables you to remotely control the connected appliances via free Tuya Smart App. You can download the iOS version in App Store and the Android version in Google Play.
- Grouping Function: It allows users to assign all added devices to different groups so that they can easily check and manage the devices. To use this feature, simply click the drop-down menu on the top of device list.
- Smart Scene: The smart scene allows users to use one device to automatically trigger ON/OFF one or more devices.
- Share Control: Device owners can share control of their own devices to other Tuya Smart users. Invite your family members to control your smart home together!
- Scheduled Timing: User can reset repeat or single timing schedules to turn on/off devices according to your needs. Imaging that the door is off in the evening and on in the morning every day automatically.
- Loop Timing: A loop timer allows users to turn on/off the door at preset intervals.
- Tuya provides a multi-language version, which supports Chinese, English, Danish, French, Russian, Italian, Polish, Deutsch, Spanish, Japanese, etc.
- Tuya offers cloud service at a global scale, ranging from Asia, North America, South America to Europe, etc.
- The exit button doesn’t bring a delay, it means you have to press the exit button at the same time for open the door.
- ATTENTION: Strike lock will work with mechanical lock or knob lock which need buy separately.

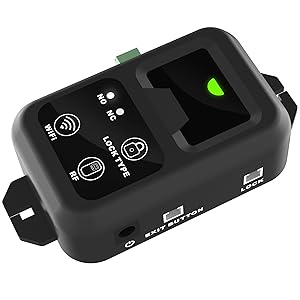

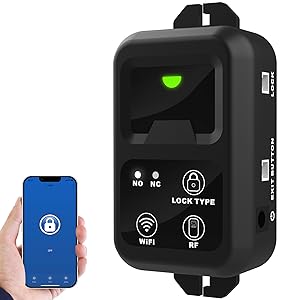

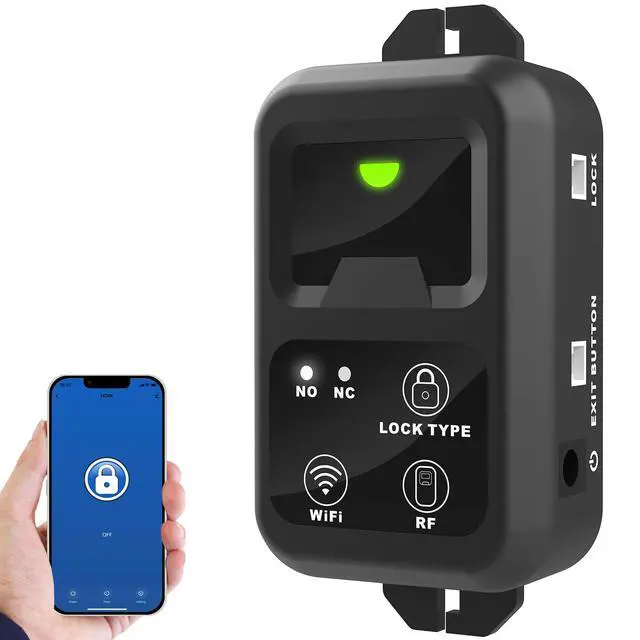

WiFi REMOTE CONTROL
- WiFi Standard: 2.4GHz (Can't support 5GHz)
- Operating Voltage: 12VDC
- RF Frequency: 433.92MHz
- Output Current: 1A
- Built-in Buzzer: Yes
- Working Mode: Momentary/Toggle
- DC Encoding Type: Learning code
- Adjustable Time Delay: 0/5/10sec
- Operating Distance: 164 feet (50 meters) without block
- Transmitter Support: Max. 40
Tuya SMART APP
- Smartphone remote control from any where at anytime
- Phone APP remotely control the device and manage users from anywhere
- View door opening records

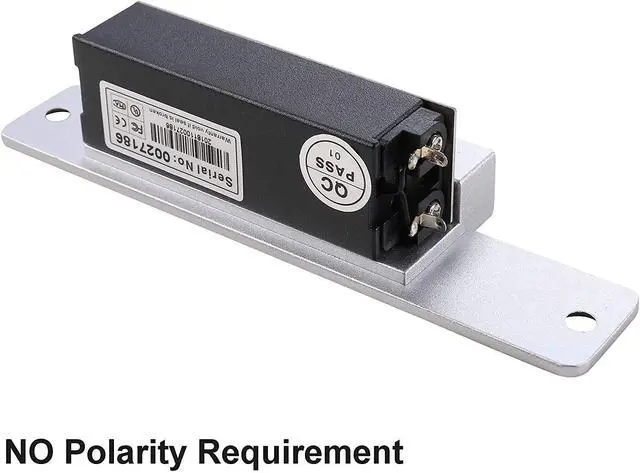

ELECTRIC STRIKE LOCK
- It structure: Zinc alloy
- Finishing: Electroplating
- Input Voltage: 12VDC/200mA
- Holding: 1100lbs (500kg)
- Fail Secure, NO mode (Locked when power is removed)

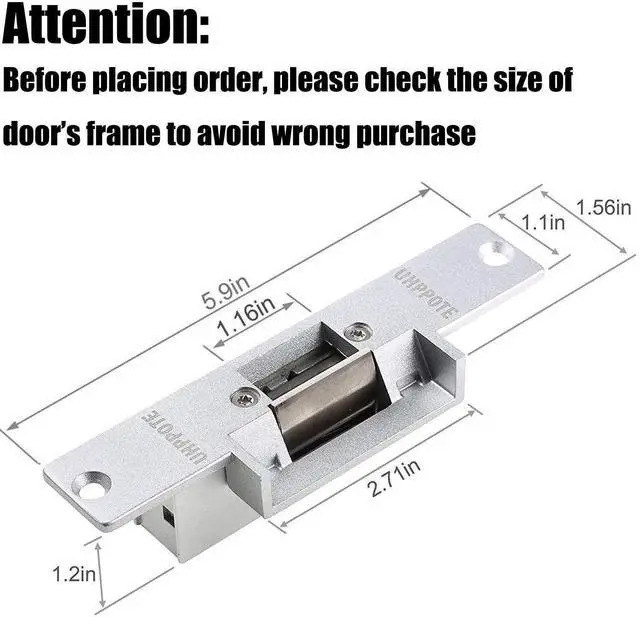

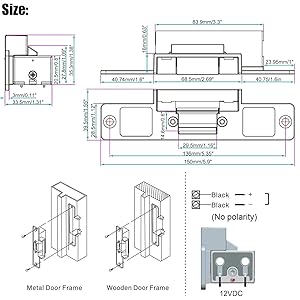

- Lock Dimensions (LxWxH): 5-29/32"x1-9/16"x1-5/16" (150x39.5x33.5mm)
- Suitable For: Wooden door, metal door, PVC door
- Before placing order, please check the size of door’s frame to avoid wrong purchase.
- ATTENTION: Strike lock will work with mechanical lock or knob lock which need buy separately.
Details:

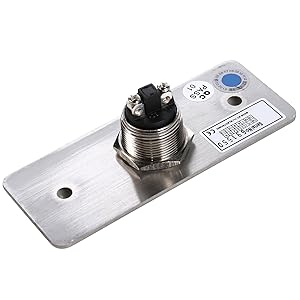

PUSH TO EXIT BUTTON
- Panel Material: Stainless steel panel, wire drawing finished
- Dimensions (LxWxH): 3-35/64"x1-3/8"x1-3/64" (90x35x26.5mm)
- Current Rating: 3A@36VDC Max.
- Output Contact: NO/COM
- Suitable for Door: Hollow door

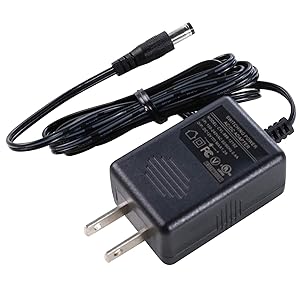

POWER ADAPTER
- Input: AC100V-240V 50/60Hz
- Max Output: 12VDC/1A (1000mA)
- AC Cord length: 4 feet (1.2 meters)
- Wire Type: 22AWG
- Output transformer adapter : 5.5x 2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)

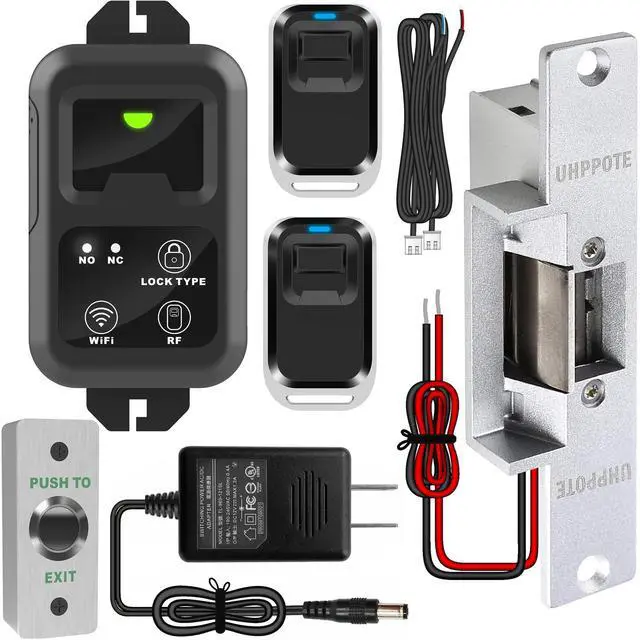

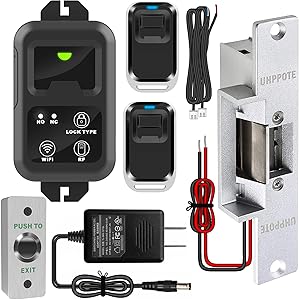

PACKAGE LIST
- 1 x Electric strike lock
- 1 x Remote receiver
- 2 x Remote transmitter
- 1 x Exit button
- 1 x Power adapter
- 1 x English user manual
- Tips: Please search ASIN B07DVY4BB2 to get more transmitters.

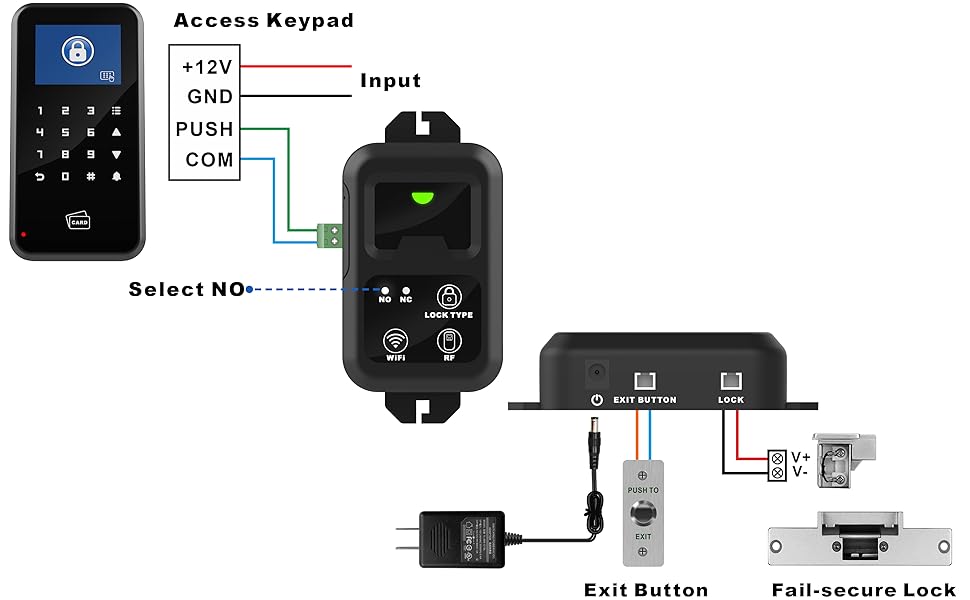

WIRING DIRGRAM
OPERATING SETTINGS
- Clear Code: Tap and hold RF icon for 8 seconds until the indicator changes from green to red, indicating the code is cleared successful.
- Match Transmitter and Receiver: Tap RF icon followed by press the button on the remote transmitter within 20 seconds.
