Access Control System with Remote Control – 600lbs Magnetic Door Lock Kit
DESCRIBE

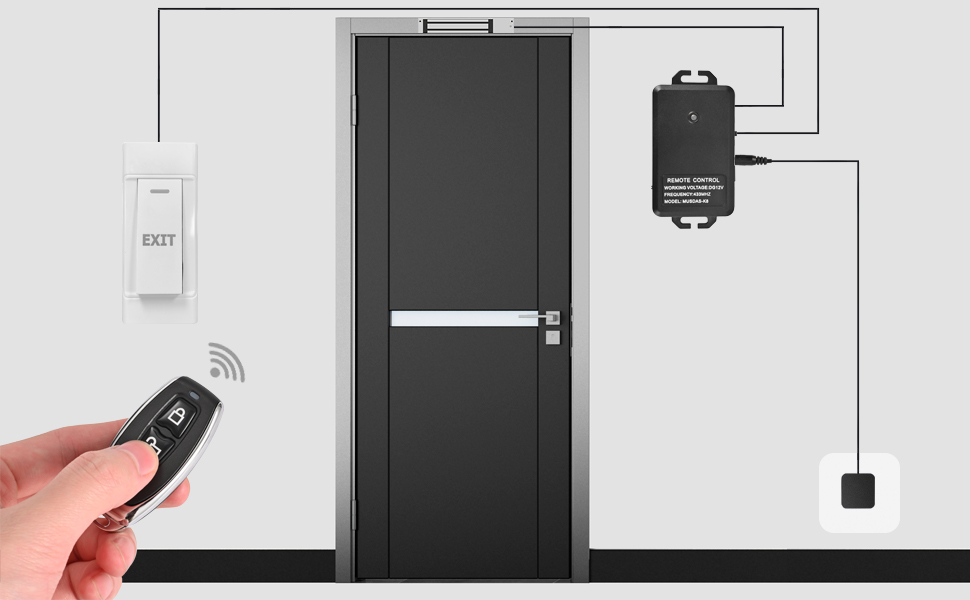

The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits.
The function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the mag lock will unlock temporarily to open the door.
0/5/10 seconds locking delay time adjustable, default is 5 seconds.
An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.

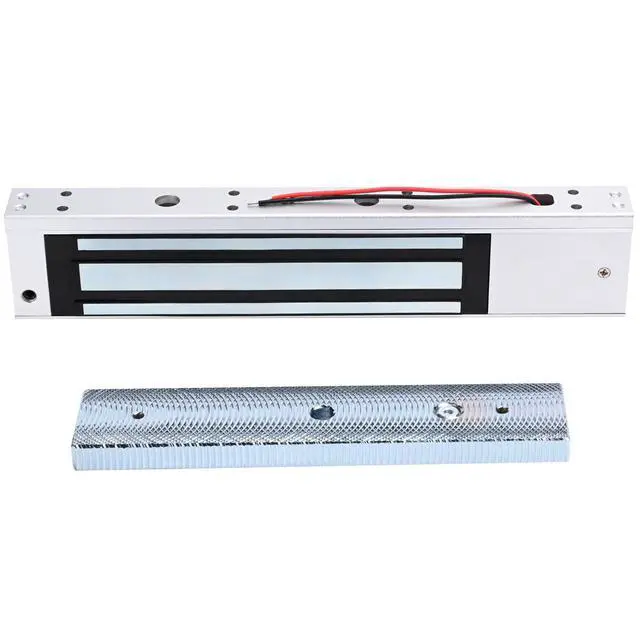

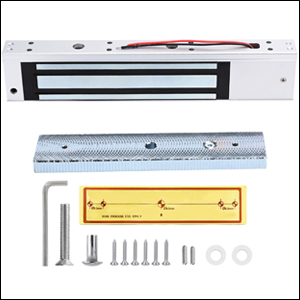

ELECTRIC MAGNETIC LOCK
Input Voltage: 12VDC
Current: 520mA
Holding Force: 600lbs (280kg)
Fail Safe mode: Unlocked while power is removed
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Size (L x W x H): 250 x 49 x 25 (mm) / 9.84x 1.93 x 0.98 (inch)
Armature Plate Dimension (L x W x H): 180 x 38 x 11(mm) / 7.09 x 1.50 x 0.43 (inch)

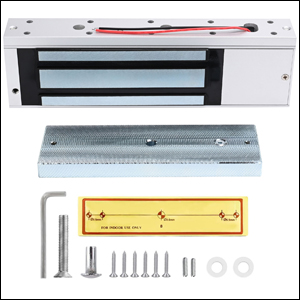

1200lbs Magnetic Lock
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Input Voltage: 12V DC
Current: 12V/480mA
Holding: 500kg / 1200Lbs
Fail safe: Unlocked while power is removed (NC Mode)
Size (L x W x H): 265 x 75 x 39 (mm) / 10.43x 2.95 x 1.54 (inch)
Armature Plate Dimension (L x W x H): 185 x 60 x 13(mm) / 7.28 x 2.36 x 0.51 (inch)

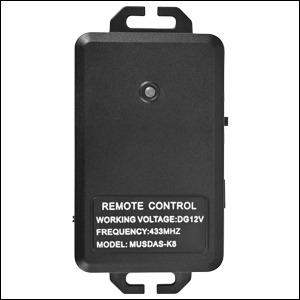

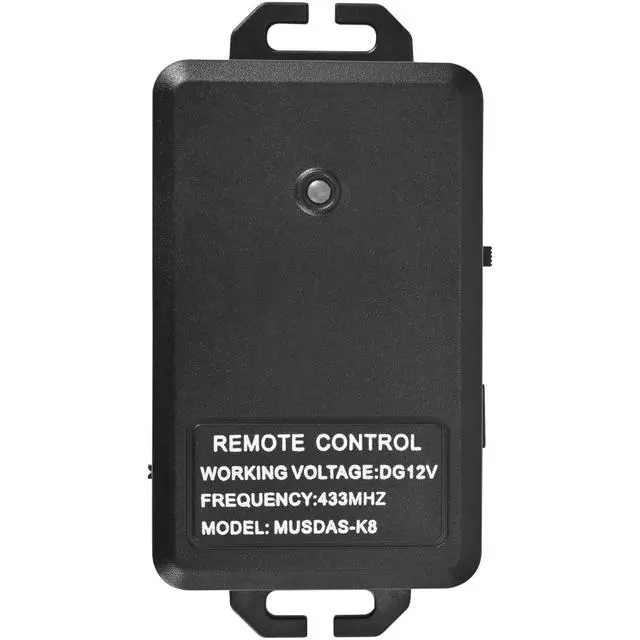

REMOTE CONTROL
Voltage: 12VDC
Frequency: 433MHz
RF channels: One
Remote Transmitter Support: Max. 40
DC Encoding Type: Learning code
Adjustable Locking Delay: 0/5/10sec
Size (L x W x H): 92 x 46 x 25 (mm) / 3.62x 1.81 x 0.98 (inch)

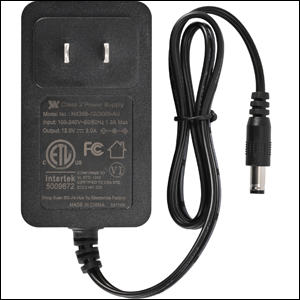

POWER ADAPTER
Type: 12V 2A Power Supply Wall Charger
Input: AC100V-240V 50/60Hz
Max Output: DC12V / 2A (2000mA)
AC Cord Length: 2.95 feet (0.9 meters)
Wire Type: 22AWG
Size (L x W x H): 75 x 40 x 30 (mm) / 2.95x 1.57 x 1.18 (inch)

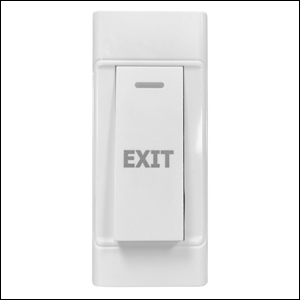

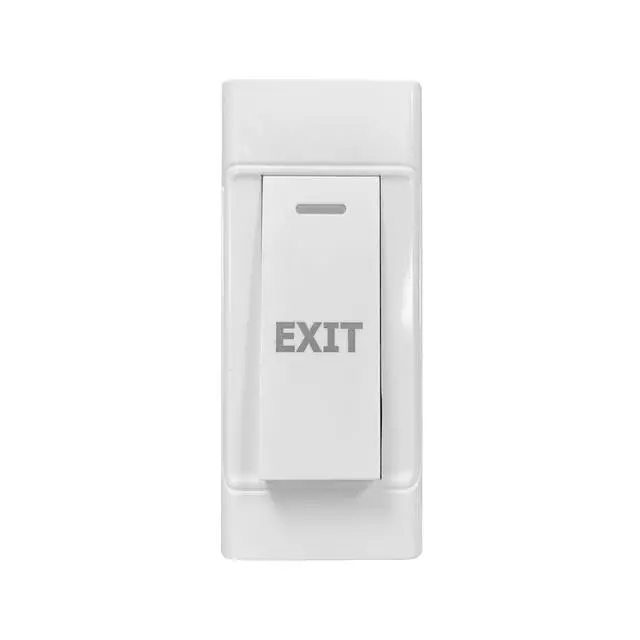

PUSH to EXIT BUTTON
Mechanical Life: 500000 tests
Current Rating: 3A@36VDC Max.
Output Contact: NO/COM
Operating Temperature: 14?~131? (-10?~55?)
Operating Humidity: 0-95% (relative humidity)

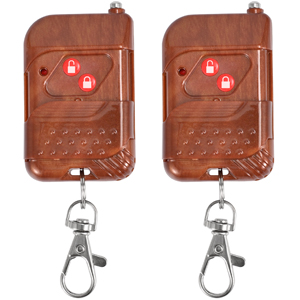

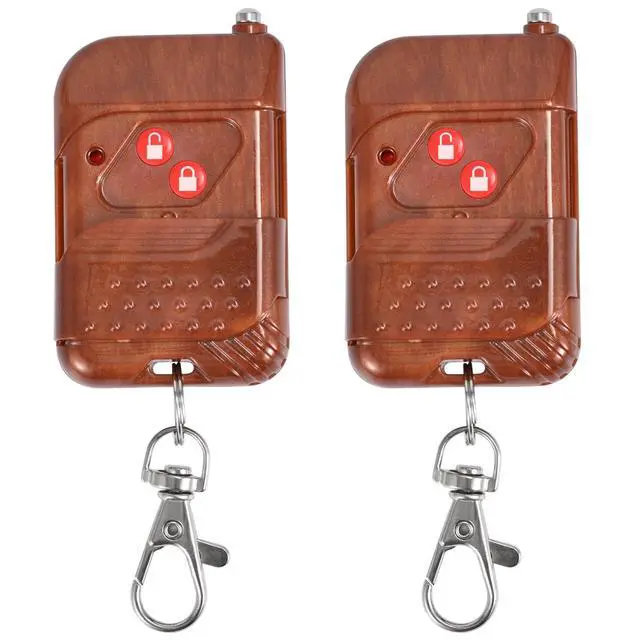

REMOTE TRANSMITTER
Working voltage: 6VDC
Operating Current: 3mA
Powerd by: 1pcs Alkaline battery (Built-in)
Service Life of the Battery: 50000 cycles tests
Transmitting Frequency: 433MHZ
Buton: 2
Enclosure Material: ABS Plastic
Size (L x W x H): 60 x 28 x 11 (mm) / 2.36x 1.1 x 0.59 (inch)

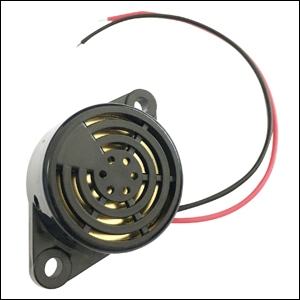

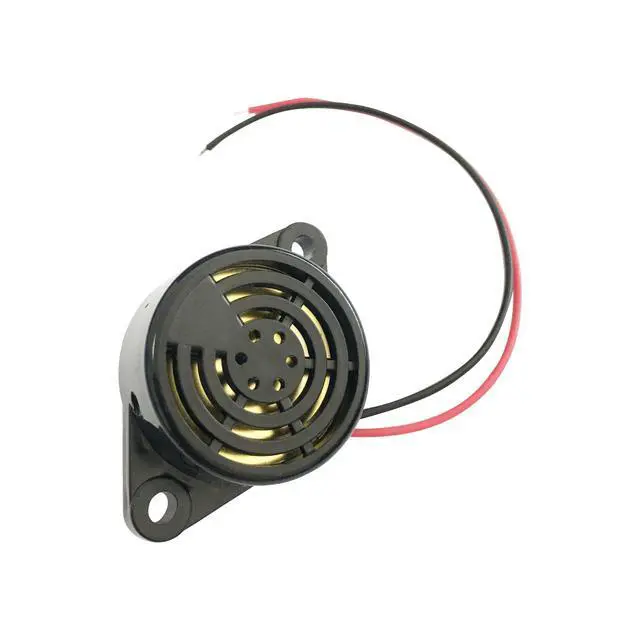

Magnetic Buzzer
Rated Voltage: 12V
Rated Current (MAX): =12mA
Min Sound Output at 10cm:=95dB
Resonant Frequency:3000 ±500Hz
Operating Temperature:-20~+70? (-4-158)?
Enclosure Material: ABS Plastic
Size (L x W x H): 46 x 30 x 15 (mm) / 1.81x 1.18 x 0.59 (inch)

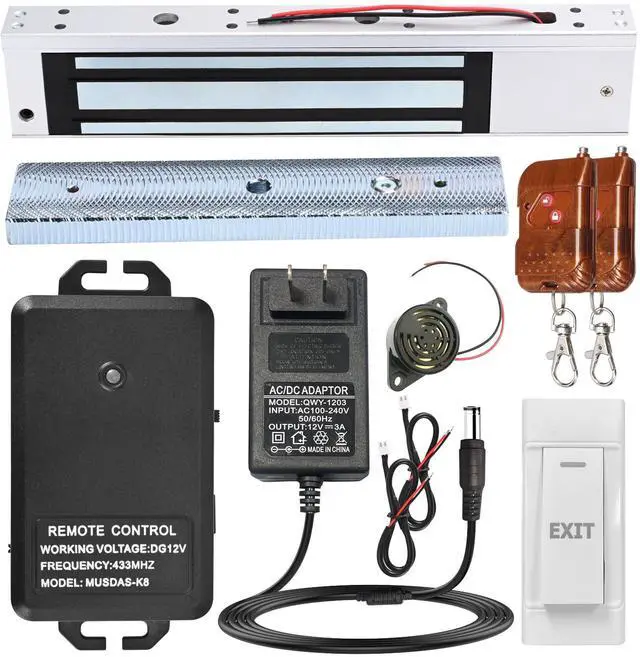

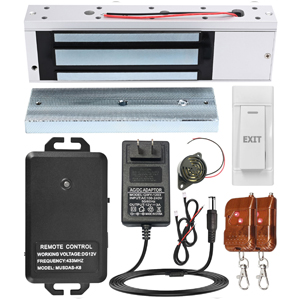

PACKAGE LIST
1 x Electric Magnetic Lock
1 x Remote Receiver
2 x Remote Transmitter
1 x Push to Exit Button
1 x Power Adapter
1 x English User Manual
1 x Magnetic Buzzer
