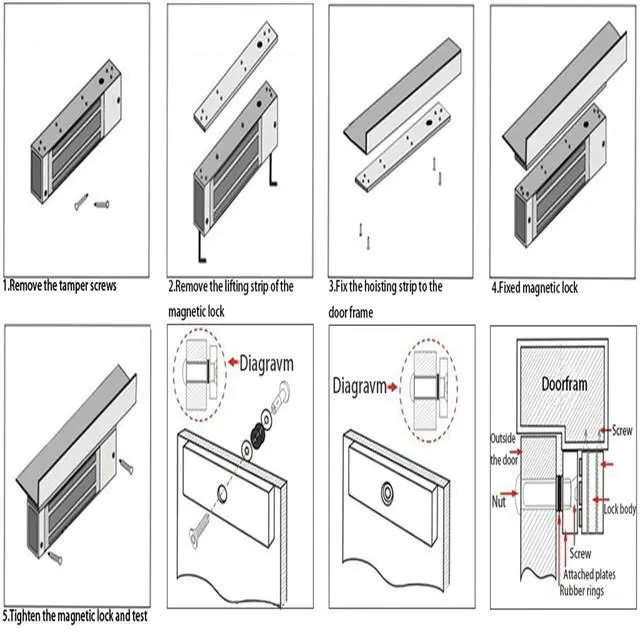

Installation:
- No Drilling Installation: Pre-set standard mounting holes on bracket, all installation screws included

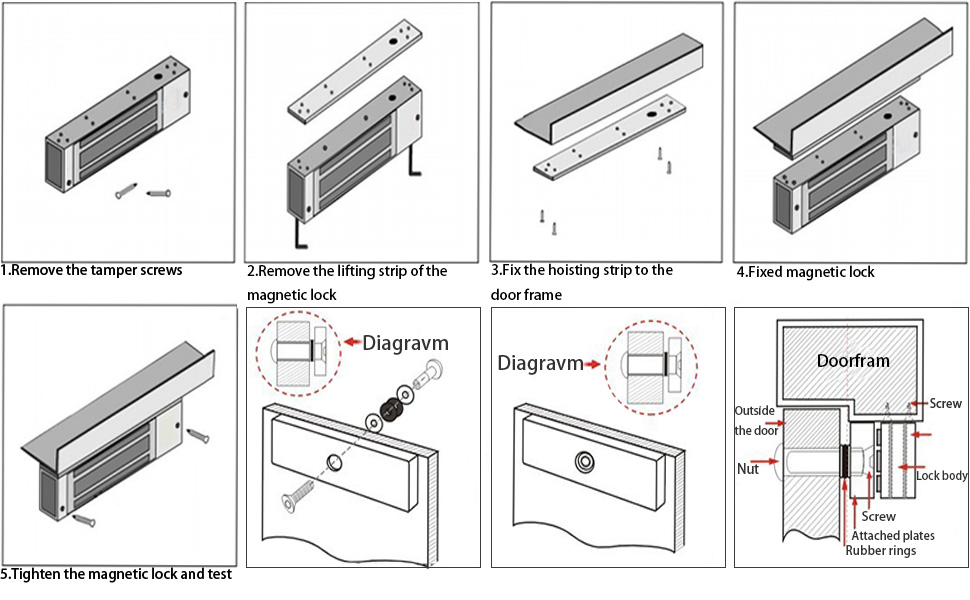

- Easy Installation:
- Attach positioning template to door frame
- Mark screw hole positions
- Tighten screws
- Hang loc body to complete
- NC Mode (Fail-Safe Mode): The door will be closed when power is on; when power off, the door will open.
- It is suitable for wooden door, glass door, metal door, fire-proof door, etc.

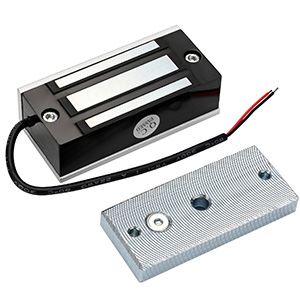

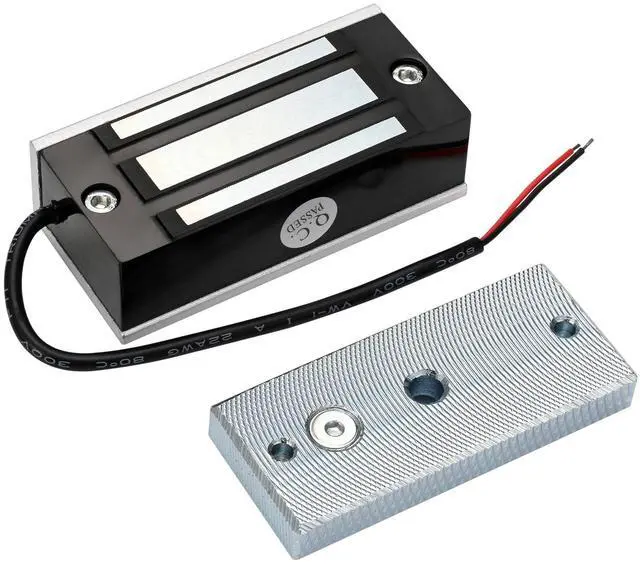

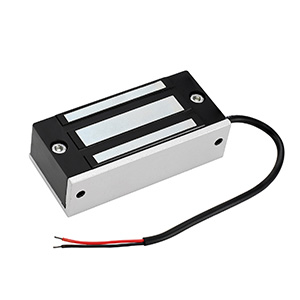

130lb Magnetic Lock
- Electromagnetic plate Material: Aluminum Alloy + Metal Plate
- Armature Plate Material: Zinc
- Cover Finish: Anodized aluminum
- Holding Force: 60kg/130lbs
- Input Voltage: DC 12V
- Operating Temp: -10 ~ +55C (14-131F)

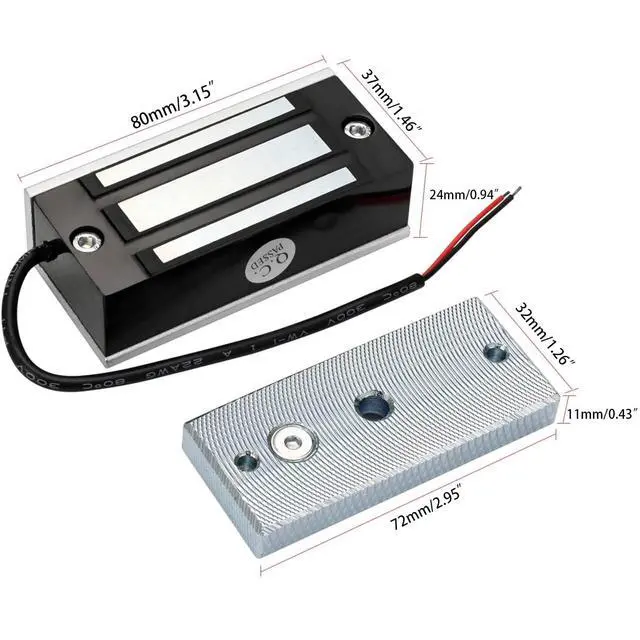

- Size:2.95L x 1.26W x 0.43H (in)/ 80L x 37W x 24H (mm)
- Armature plate: 2.95L x 1.26W x 0.43H (in)/ 75L x 32W x 11H (mm)
- Package Weight: Approx. 1.2lb (0.54KG)
Use
- Opening Mode: 90 degree door
- Suitable for Door: Wooden and metal door etc
- Easy to install and convenient to use

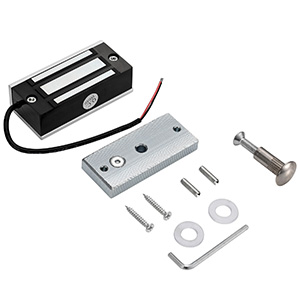

Package list:
- 1 * Electromagnetic Lock
- 1 * Armature Plate
- 1 * Screws Pack
- 1 * User Manual (English)

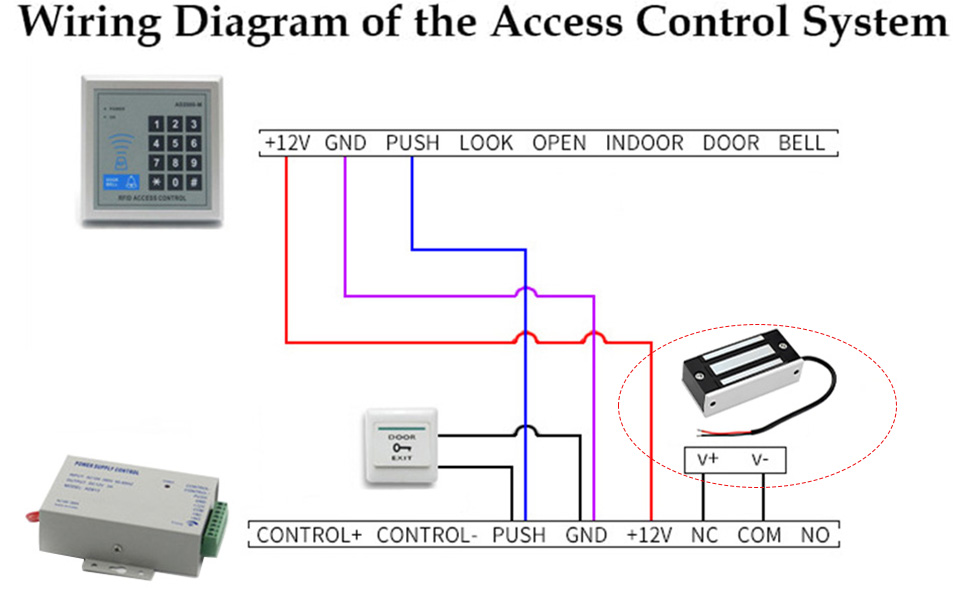

Wiring Diagram
Installation:
- No Drilling Installation: Pre-set standard mounting holes on bracket, all installation screws included
- Easy Installation:
- Attach positioning template to door frame
- Mark screw hole positions
- Tighten screws
- Hang loc body to complete
- NC Mode (Fail-Safe Mode): The door will be closed when power is on; when power off, the door will open.
- It is suitable for wooden door, glass door, metal door, fire-proof door, etc.
130lb Magnetic Lock
- Electromagnetic plate Material: Aluminum Alloy + Metal Plate
- Armature Plate Material: Zinc
- Cover Finish: Anodized aluminum
- Holding Force: 60kg/130lbs
- Input Voltage: DC 12V
- Operating Temp: -10 ~ +55C (14-131F)
- Size:2.95L x 1.26W x 0.43H (in)/ 80L x 37W x 24H (mm)
- Armature plate: 2.95L x 1.26W x 0.43H (in)/ 75L x 32W x 11H (mm)
- Package Weight: Approx. 1.2lb (0.54KG)
Use
- Opening Mode: 90 degree door
- Suitable for Door: Wooden and metal door etc
- Easy to install and convenient to use
Package list:
- 1 * Electromagnetic Lock
- 1 * Armature Plate
- 1 * Screws Pack
- 1 * User Manual (English)

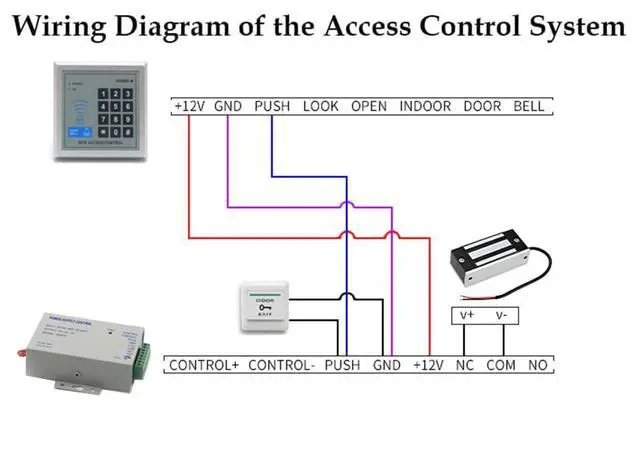

Wiring Diagram
