DESCRIBE

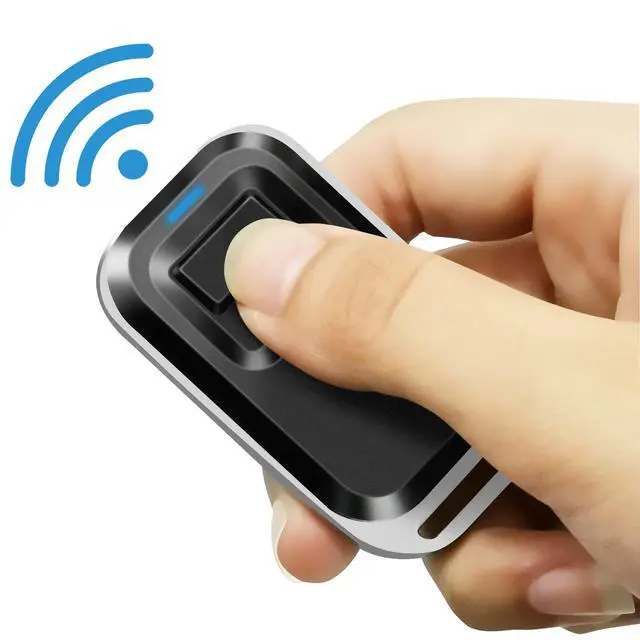

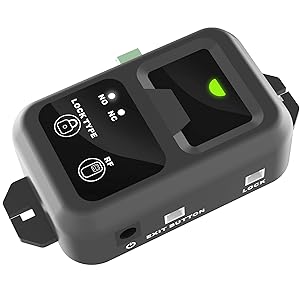

- The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the RF receiver which can programed up to 40 transmitters, and it has a range of 164ft.
- The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote once the lock will unlock temporarily to open the door.
- An exit button is included in this electric strike lock system kit, and you could exit from indoors easily by pushing it once.
- 0/5/10 seconds locking delay time adjustable.
EASY SETTINGS

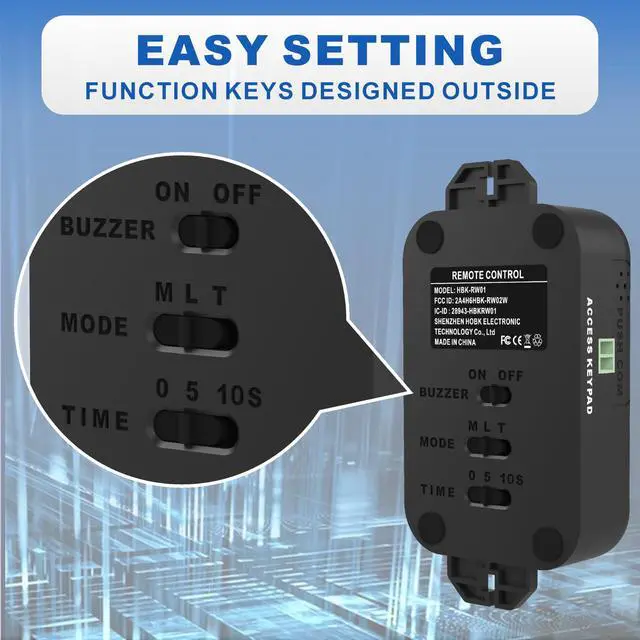

- Human friendly: Function switches designed outside the device, easy to set the sound effects, working mode and delay time.
- Sound effects feedback: Built-in buzzer provides feedback on operation and can be turned off as needed.
- Expansion port: The expansion port support add a access control keypad. Please search ASIN: B00UX03JCS, B00X56ALEG or B00UX03A7W to get the keypad.

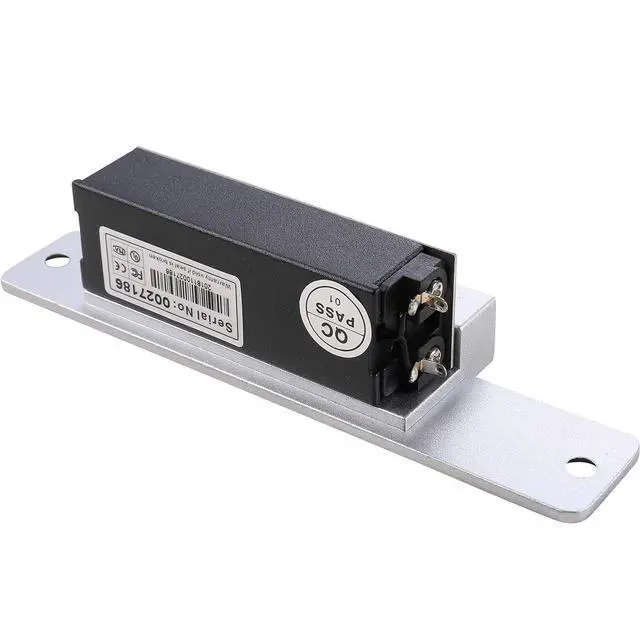

STRIKE LOCK
- Input Voltage: 12VDC
- Current: 200mA
- Holding Force: 1100lbs (500kg)
- Fail secure, NO mode (Locked when power is removed)
- Suitable For: Wooden door, metal door, PVC door
- Strike lock needs to work with mechanical lock. Mechanical lock should buy separately.
- With two contacts and no polarity requirement. (The lock will have polarity when a diode added.)
- Dimensions (LxWxH): 5-29/32"x1-9/16"x1-11/32" (150x39.5x34mm)
- Function: Built-out MOV
- Net Weight: 0.64lb (0.29kg)
POWER ADAPTER
- Input: AC100V-240V 50/60Hz
- Max Output: DC12V / 1A (1000mA)
- Wire Type: 22AWG
- AC Cord length: 4 feet (1.2 meters)
- Output transformer adapter: 5.5x2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
- Certificate: FCC
ATTENTION
- Strike lock will work with mechanical lock or knob lock which should buy separately.
REMOTE CONTROL
- Voltage: 12VDC
- Frequency: 433.92MHz
- RF Channel: 1
- Transmitter Support: Max. 40
- DC Encoding Type: Learning code
- Working Range: 164ft (50m) in open area, 15%-30% in reality
- Adjustable Locking Delay: 0/5/10sec
- Working Mode: Momentary/Toggle
- Enclosure Material: ABS Plastic

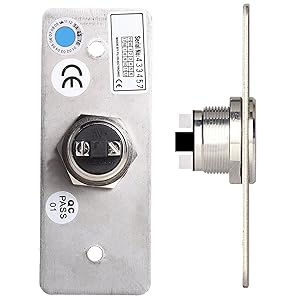

PUSH TO EXIT BUTTON
- Dimensions (LxWxH): 3-35/64"x1-3/8"x1-3/64" (90x35x26.5mm)
- Standard Structure: Stainless steel panel, steel button
- Mechanical Life: 500000 tests
- Current Rating: 3A@36VDC Max.
- Output Contact: NO/COM
- Operating Temperature: 14?~131? (-10?~55?)
- Operating Humidity: 0-95% (relative humidity)
- Panel Material: Stainless steel panel, wire drawing finished
- Suitable for hollow door
REMOTE TRANSMITTER
- Working Voltage: 6VDC (Built-in button battery)
- Operating Current: 3mA
- Powerd By: 2pcs CR2016 batteries
- Service Life of the Battery: 50000 cycles tests
- Transmitting Frequency: 433.92MHZ
- Enclosure Material: ABS plastic
- Button: 1
- EncodingType: Fixed code

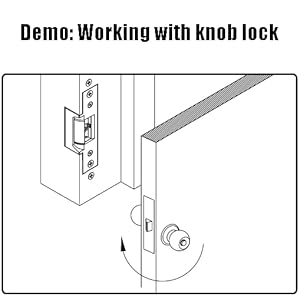

DEMO FOR KNOB LOCK
- Works with knob lock
- Strike lock will work with mechanical lock or knob lock which should buy separately.

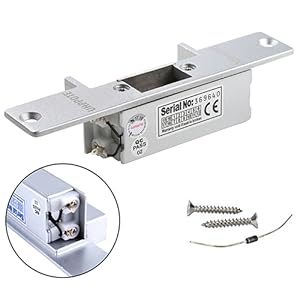

No Polarity Requirement
- With two contacts and no polarity requirement.
Tip:
- The lock will have polarity when a diode added.
- The diode can protects strike from over voltage, so would solder it into the positive side.

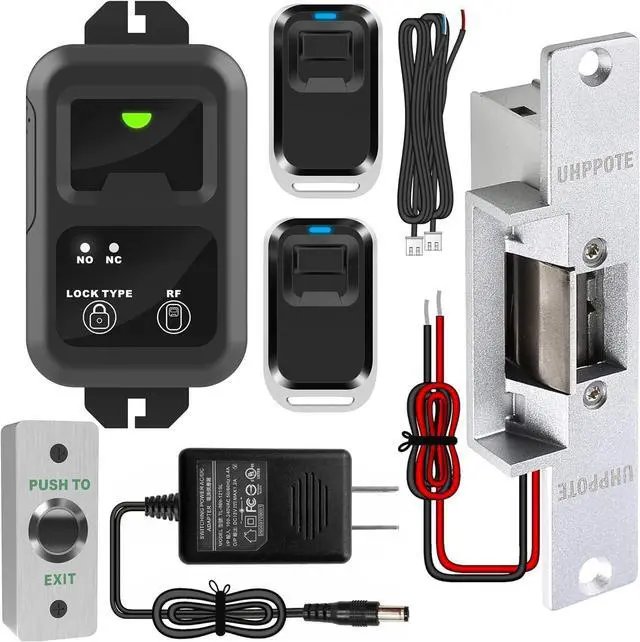

PACKAGE LIST
- 1 x Electric Strike Lock
- 1 x Remote Receiver
- 2 x Remote Transmitter
- 1 x Exit Button
- 1 x 12V Adapter (Cord Length: 4ft)
- 1 x English User Manual
- Tips: Please search ASIN B07DVY4BB2 to get more transmitters.
WIRING DIAGRAM
OPERATING SETTING
- Clear Code: Tap and hold RF icon for 8 seconds until the indicator changes from green to red, indicating the clear code is successful.
- Match Remote: Tap RF icon followed by press the button on the remote transmitter within 20 seconds.
