HFeng Door Access Control System Kit 125KHz RFID Keypad Metal Case + DC12V 3A Power Supply Controller + Door Exit Button + 10pcs Keyfobs (Without Lock)

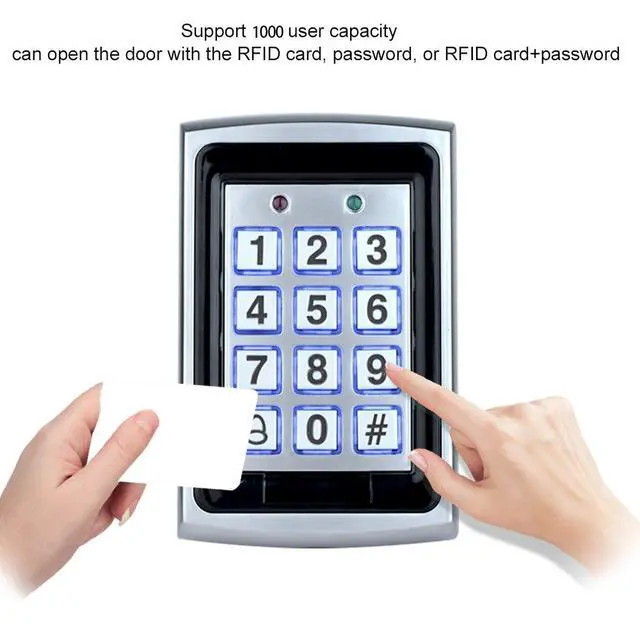

- 1) Support 1000 user capacity. Support RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
- 2) Made of high quality zinc alloy. Has a WG26/34 interface and 2 relays output. Support door bell and time delay function.
- 3) Working with DC12V system, very easy to install. Don't need to connect to computer. You can program the RFID cards or password on the device directly.
- 4) Support tamper alarm function. Prevent the outdoor access control machine from being removed and automatically alarm when dismantling.
- 5) Package including access control keypad + power supply+ door exit button +10pcs Keyfobs. NOT including electric lock.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Specifications

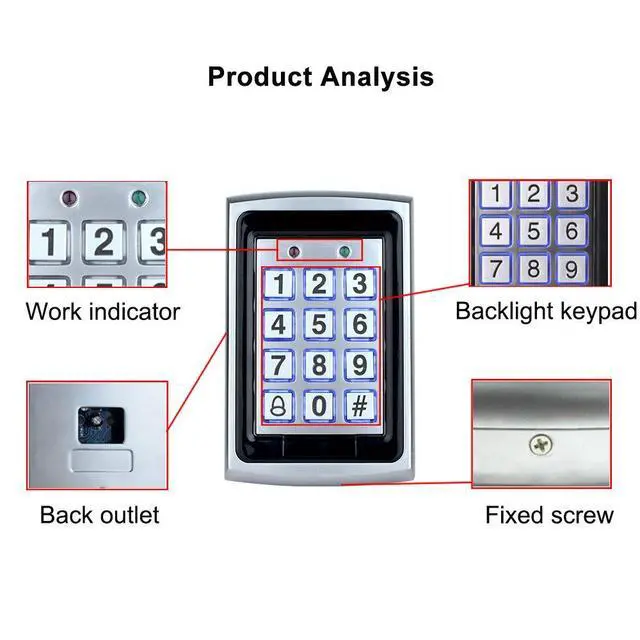

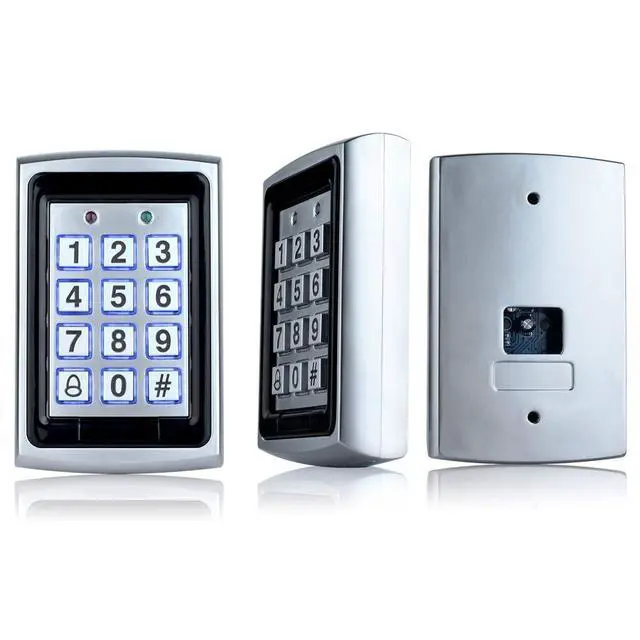

Access Control Keypad
Material: metal zinc alloy
Working frequency: 125KHz
Card reading type: EM card
Card reading distance: 0-10CM
Identification method: RFID card, password, card + password
User capacity: 1000 cards, 1 public password, 1000 private password
Door bell function: support
Digital backlit: support
Tamper alarm function: support
Time delay function: support
Has a WG26 interface, 2 relays output
Working Voltage: DC 12V ± 10%
Working Current: 1.2A
Working Temperature: -10 to +70
Relative Humidity: 20%-90%
Size: 77*120*27mm(L/H/W)

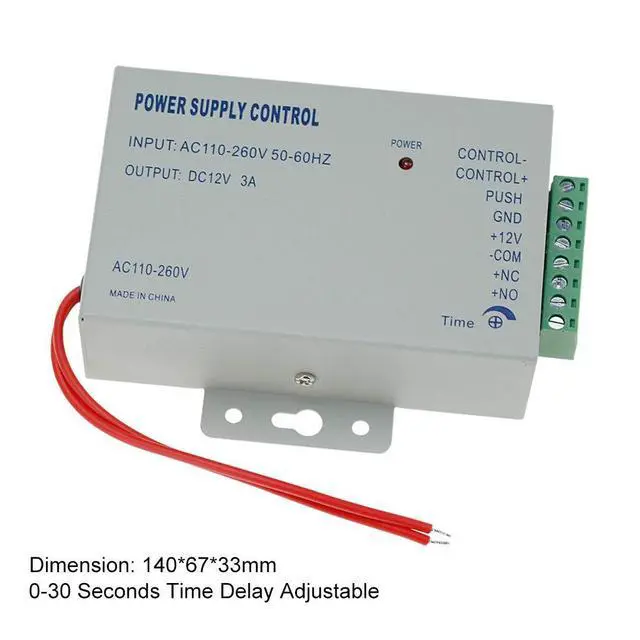

Power Supply
Material: stell
AC input: Standard AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable.
Dimension: 140X67X33mm( L/W/H )
Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A5A output
Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Dimension: 86X86MM
10* RFID Keyfobs
Material: ABS
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.

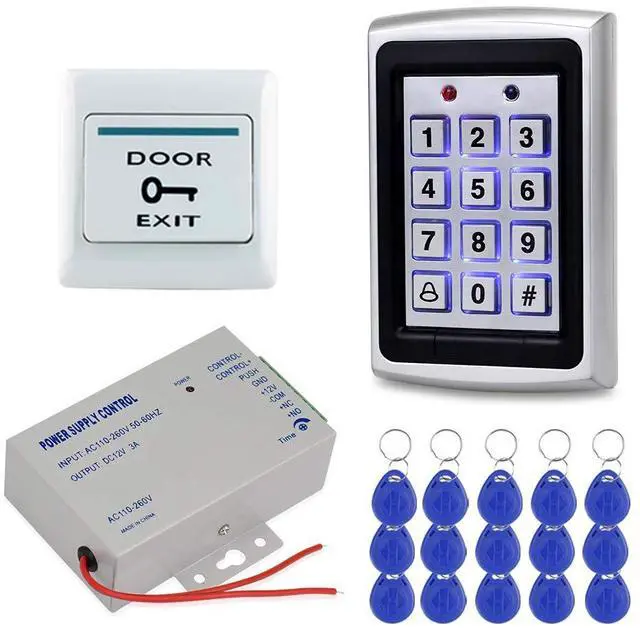

Package Including
1x RFID Access Control Keypad
1x Power supply
1x Exit button
10x RFID blue keyfobs
Not including locks
