YOUR TRUSTWORTHY ACCESS CONTROL SOLUTION
Durable, flexible, and designed for modern life.
1. NC mode - (locked while supplied with power), fail safe mode.

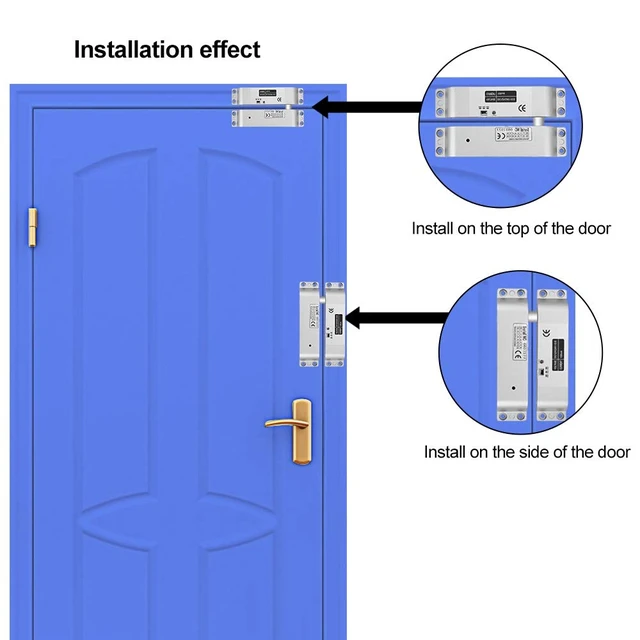

2. Installation: unfold install (surface mounted).
3. Material: Aluminum alloy material.
4. With time delay: 0s, 3s, 6s.
5. Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.
6. Surface scrub treatment, durable and wear-resistant.
7. Lock body use hexagon screw, fixed panel, anti-theft and more security.
Product Features:

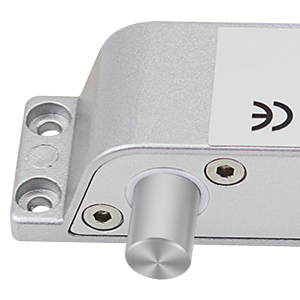

Stainless Steel Latch
Aluminum alloy lock structure, surface sandblasting process treatment, anti-corrosion and wear resistance, the inner 6 angle screw fixation, stainless Steel Latch, security and anti.

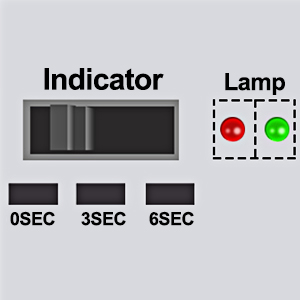

Working Indicator & Time Delay
- With working indicator: when the lamp shows in red, it indicates unlocking; when the lamp shows in green, it indicates locked.
- Time delay of unlocking can be adjusted: 0 seconds, 3 seconds, 6 seconds.

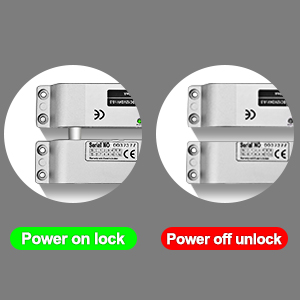

Power-On Lock, Power-Off Unlock
NC mode (Normal closed mode): fail-safe mode. Be locked when supplied with power, but be unlocked while power is removed.
Connection note:

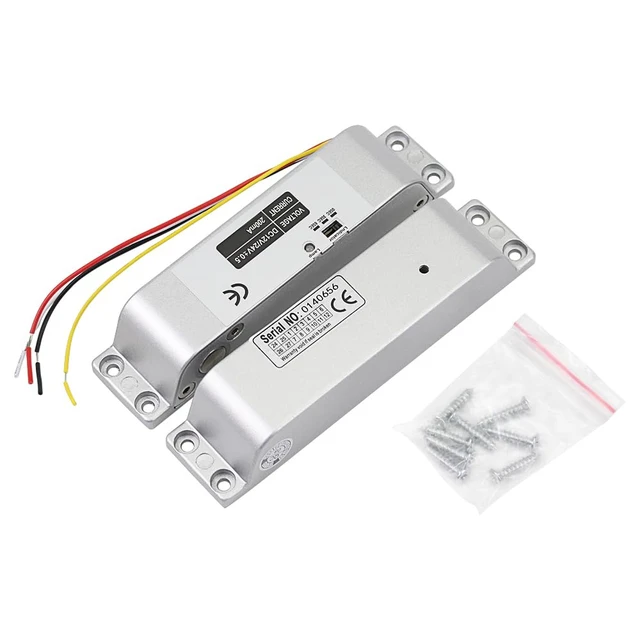

- If you want to test the lock, please connect the red cable to "+12v”, and black cable to “GND" of the 12VDC power supply.
- When you install completed access control system kit set, please connect red cable to "NC", black cable to "COM" of the power supply.
- Don’t need to connect the yellow and white cable.

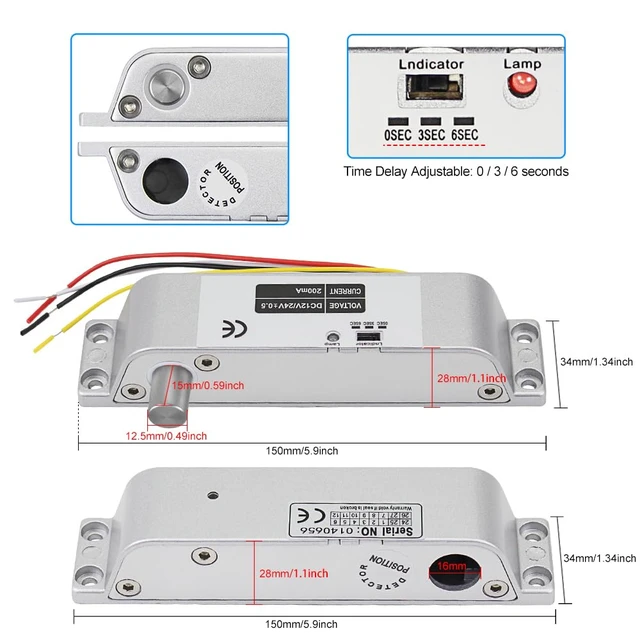

Specifications:
- Material: Aluminium Alloy
- Dimensions of Lock Body: 150x34x28mm/5.9*1.3*1.1in
- Lock Core Size: The diameter 12.5MM, extending the length of 15MM
- Working Voltage: DC 12V
- Working current: Start state 1.2A, Persistent state 120mA
- Secure Mode: NC Type / Fail-safe mode (Locked when power on, unlocked when power off)
- Holding Force: 1000KG
- Time Delay: 0s, 3s, 6s
Door Compatibility
Compatible with Multiple Door Types

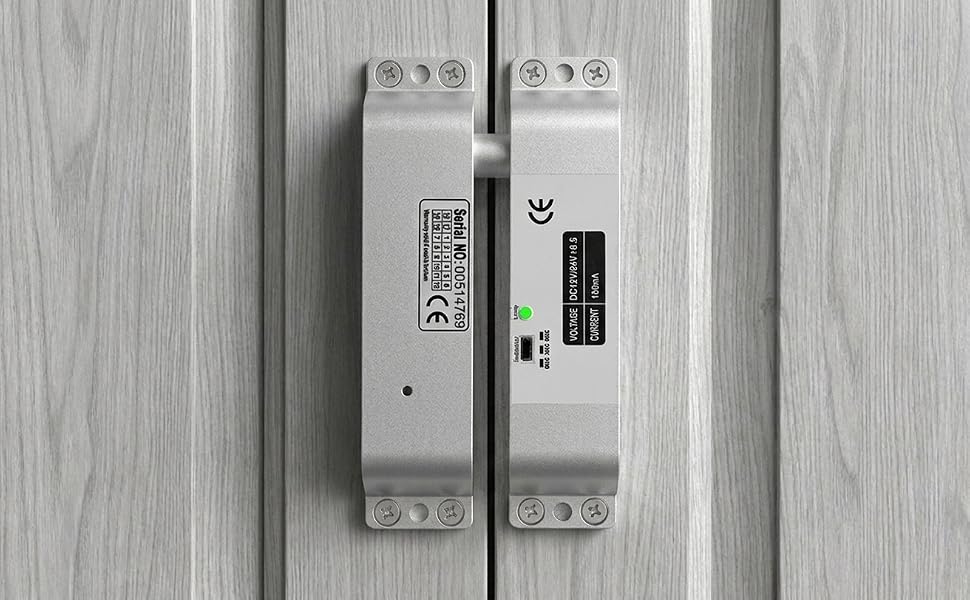

Suitable for framed glass doors, wooden doors, security doors, and fire doors.

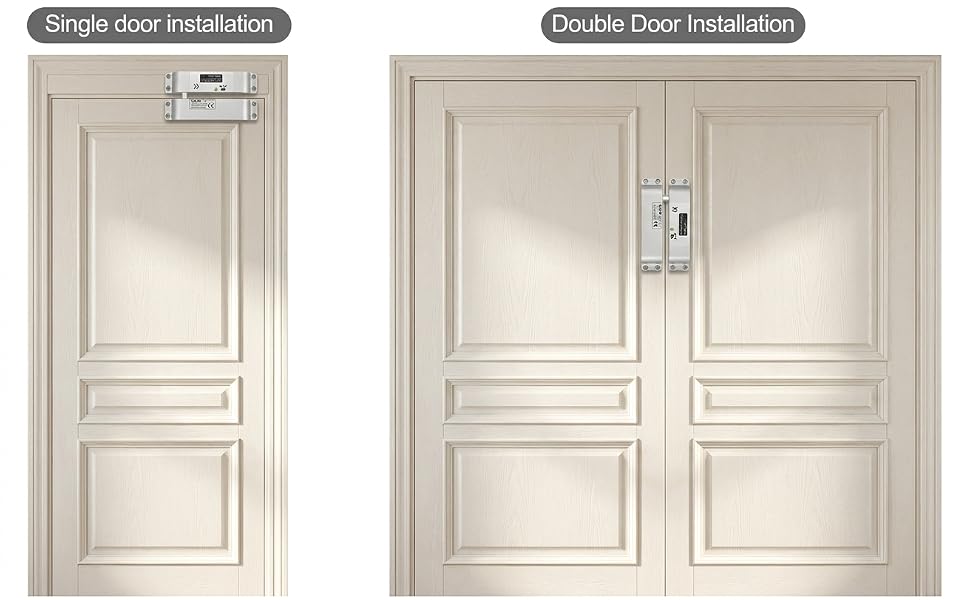

Suitable for single door or double door.
A practical access solution for apartments, offices, schools, hospitals, and more.

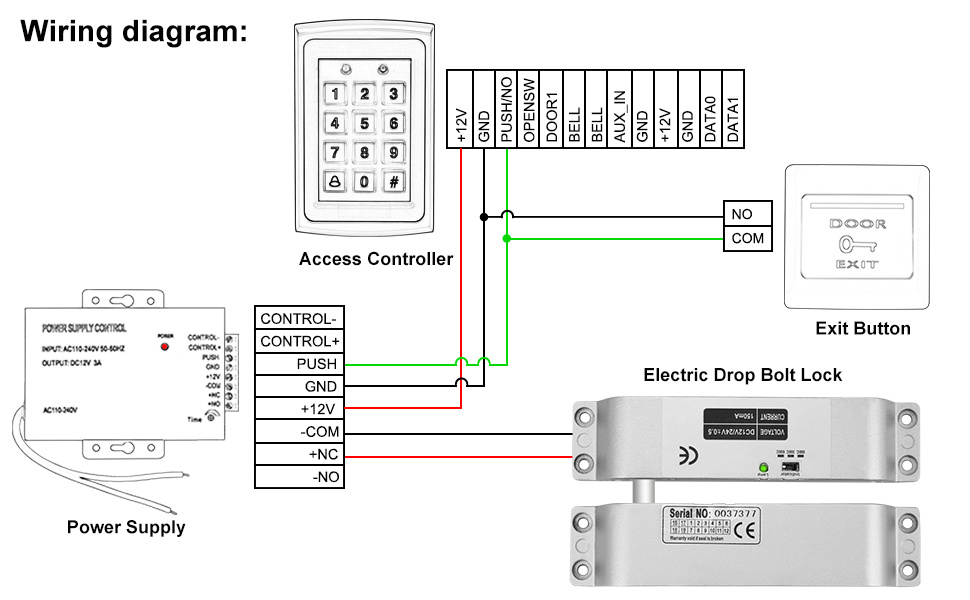

Wiring Digram:
