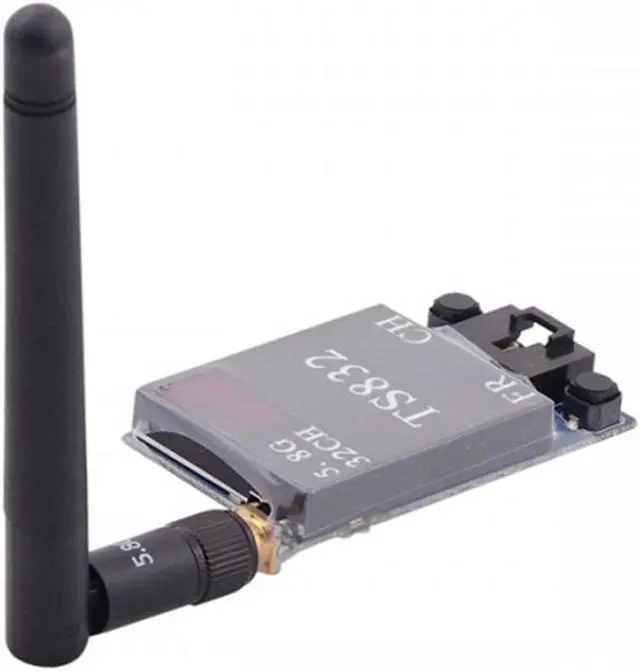

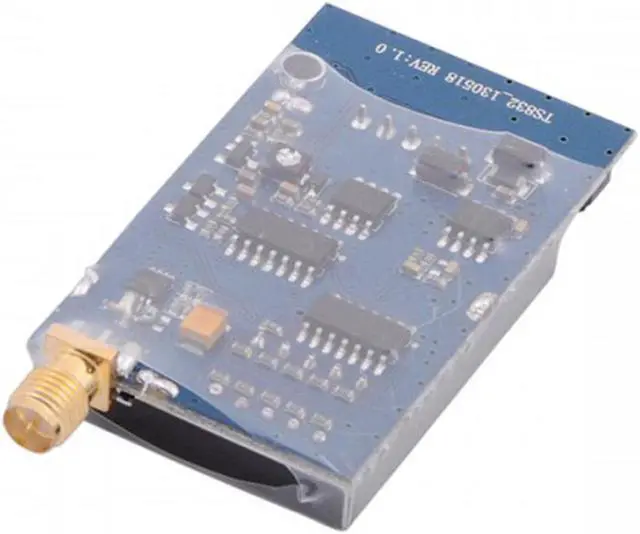

TS832 RP-SMA FPV 5.8G 600mW 32CH A/V Transmitting (TX) Module

THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.
Features:
- 32 channels: Cover A,B,E bands and F band (Airwave band),4 bands and all frequencies compactable;

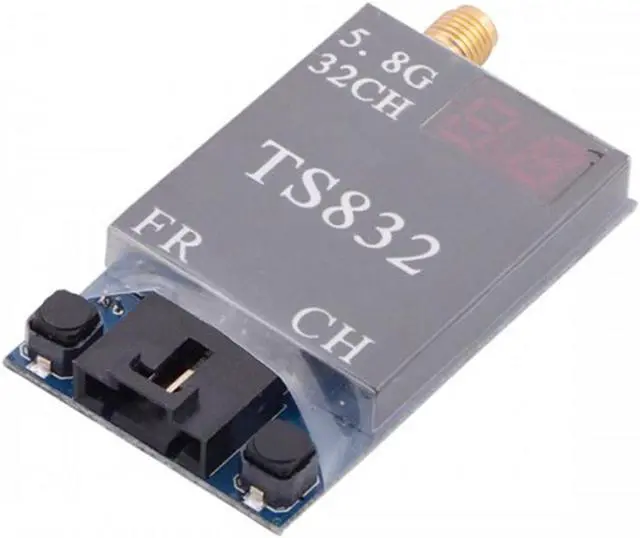

- Two switching buttons: CH button for frequencies channels switching,FR button for frequencies bands switching;
- Two digits display: one for CH and the other for FR,real-time positioning which frequency band and which channel received;
- Power off memory: Replay the very last frequency band and channel
- Independent video and audio signal outputs
Specifications:
- Video format supported: NTSC/PAL
- Antenna connection: RP-SMA,jack (module side ) See connector type diagram
- Power input: 7.4-16V (3S Lipo suggested)
- Transmitting power: 600mA
- Antenna gain: 2db
- Working current: 220mA at 12V
- Video bandwidth: 8M
- Audio bandwidth : 6.5M
- Weight: 22g
- Dimension: 54x 32x 10mm(excluding antenna)
*Note: TX antenna must be installed properly before it is switched on,power on without install antenna,or a improper antenna was used may easily burn the TX.

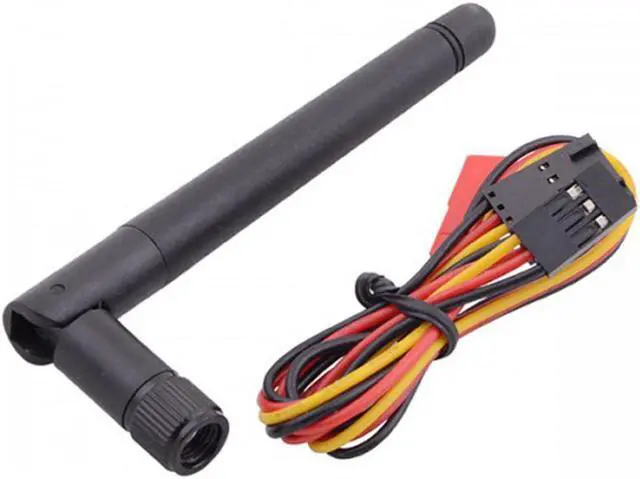

Package Included:
- 1*transmitting unit (TX)
- 1*antennas (2db)
- 1*basic wires set
model: 002751664100070
