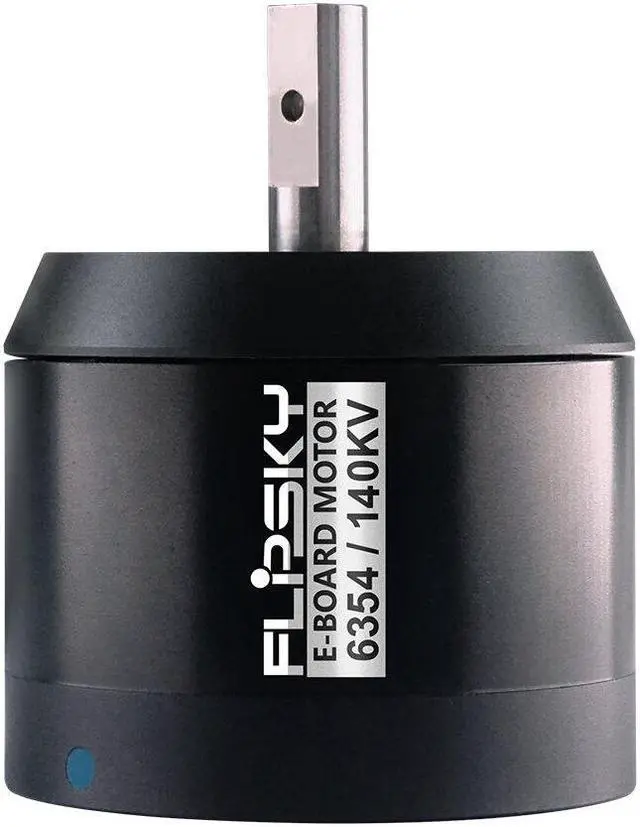

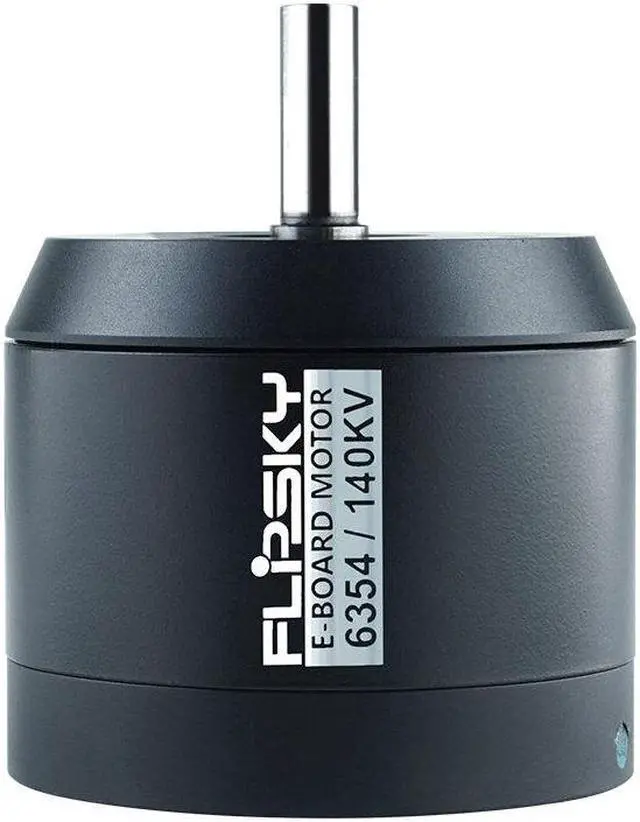

BLDC Belt Motor Battle Hardened 6354 140KV 2450W for Electric Skateboard
- Type:Round 8mm 140kv
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Max Power: 2450 Watts
Max Current: 65 Amps
Max Volts: 12S
Max Torque: 7Nm
Motor Resistance: 0.053Ohm
Recommend ESC: 3-12S 50A (
FSESC4.12 50A
or
FSESC 6.6 60A
)
Weight: 1.23 lb / 0.56 kg
The motor length:54mm
The motor diameter: 63mm
Shaft diameter: 10mm D Shaft ,24mm length/8mm Round-short shaft,24mm
length
/8mm Round-long shaft,30mm
length
Motor Wire: 320mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
Wire configuration:
Blue = A
Black = B
Yellow = C
BLDC Motor
The number of pole: 14
Reference Information:
The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
Screws to mount the motor are not included with the motor.
Package included:
1x motor
