Tenergy's TB6B Multifunctional Battery Pack Balance Charger is one of the most popular battery pack chargers on the market. It is capable of charging a large number of battery types and voltages, intending to help eliminate your need of having multiple and different chargers for all of your hobby RC or airsoft batteries.

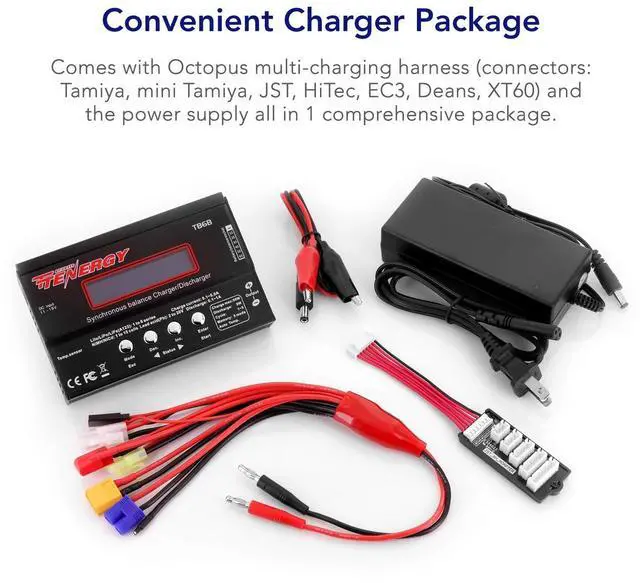

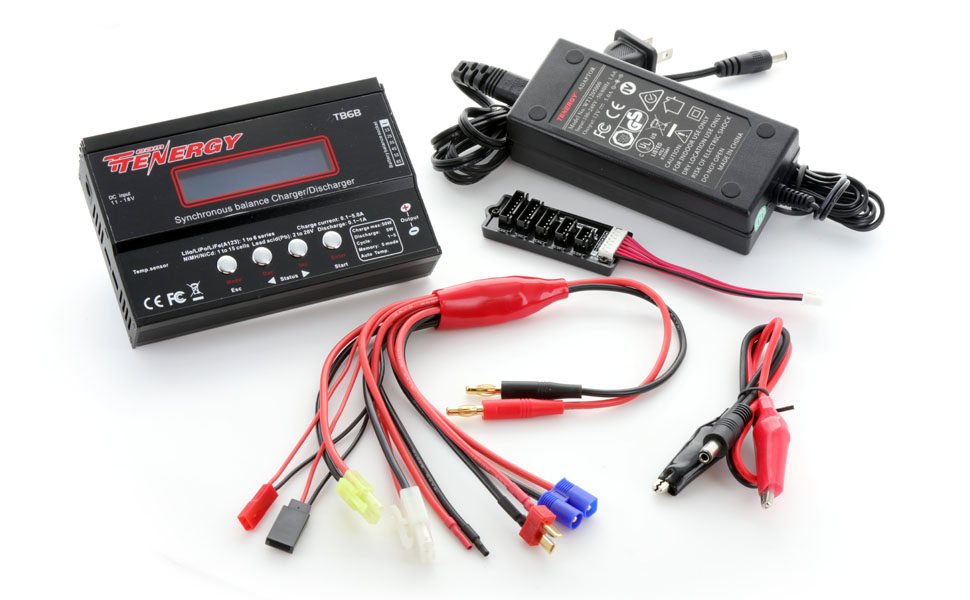

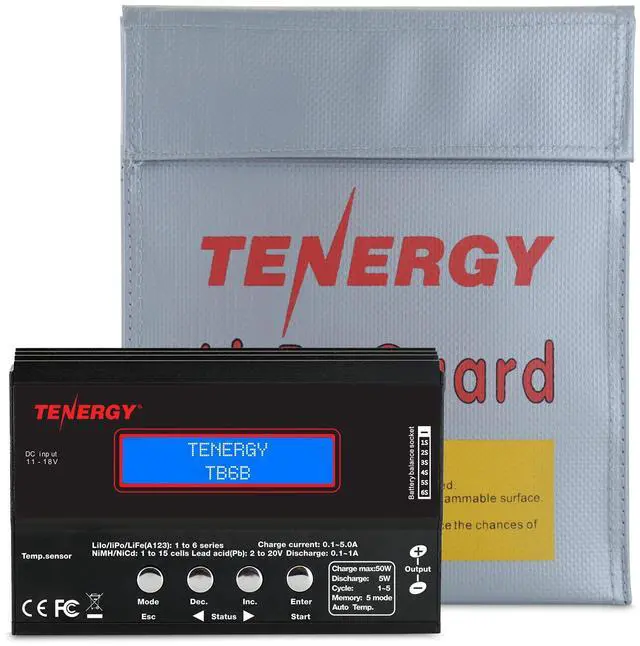

This convenient charger package comes with an octopus multi-charging harness (connectors: tamiya, mini tamiya, JST, HiTec, EC3, Deans, XT60), alligator clips, and the power supply all in 1 comprehensive package.
IMPORTANT CHARGING WARNING:
- BEFORE CHARGING ALWAYS INSPECT BATTERIES for any type of damages to both the wire(s) and battery pack (punctures, pvc damage, and/or battery swelling). DO NOT Charge if the pack has any of the mentioned issues!
- ALWAYS BALANCE-CHARGE RC/Hobby/Airsoft LIPO BATTERY PACKS: when charging any of these LiPO packs, ALWAYS use the balance charge mode & use the balance connector/board.
- NOTE: Only supports Li-Ion & LiPO Hobby battery packs that has a balance connector. DO NOT charge any battery packs without a balance plug!
** Ignoring these WARNINGS could result in fire or personal/property damages **

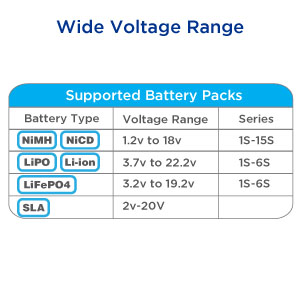

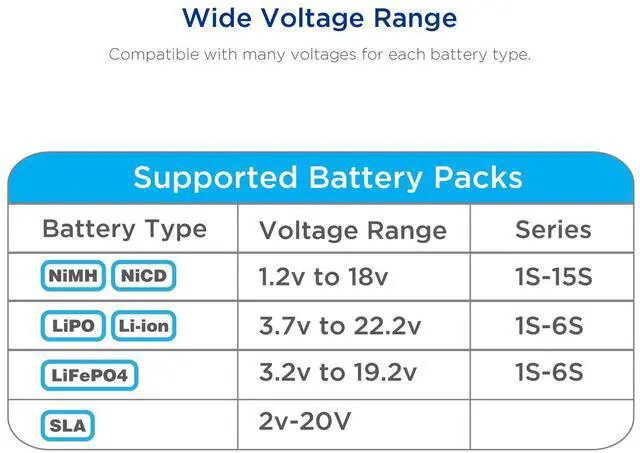

Compatible with many voltages for each battery type.

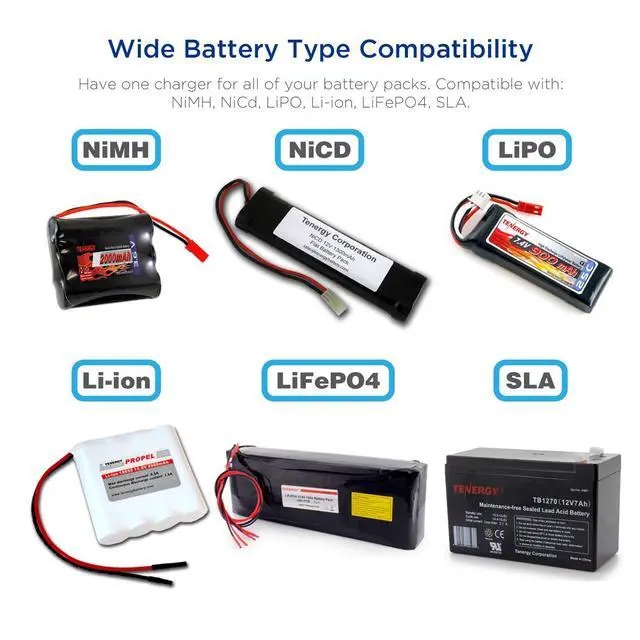

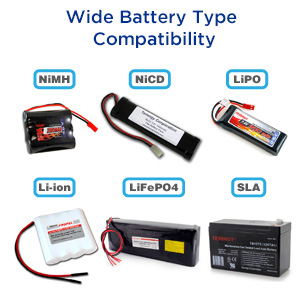

Compatible with: NiMH - Nickel Metal Hydride, NiCd - Nicel Cadmium (Ni-Cad), LiPO - Lithium Polymer, Li-ion - Lithium Ion, LiFePO4 - Lithium Iron Phosphate, SLA - Sealed Lead Acid.

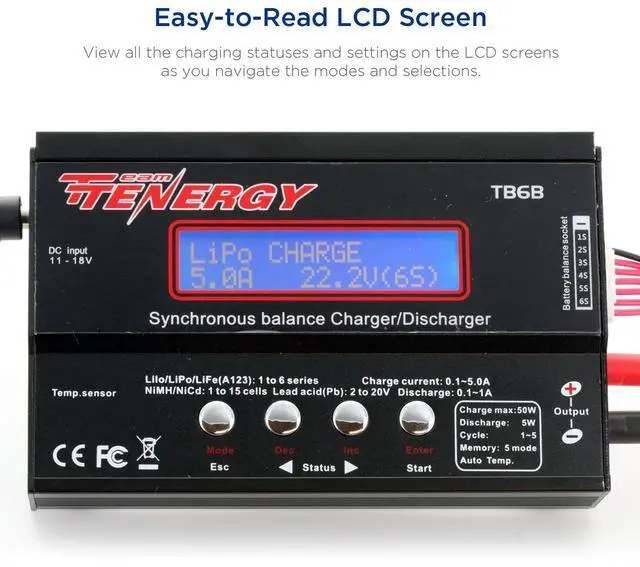

This Tenergy TB6B is packed with functions and features to make charging your battery packs easy and simple, without needing too many extra accessories.

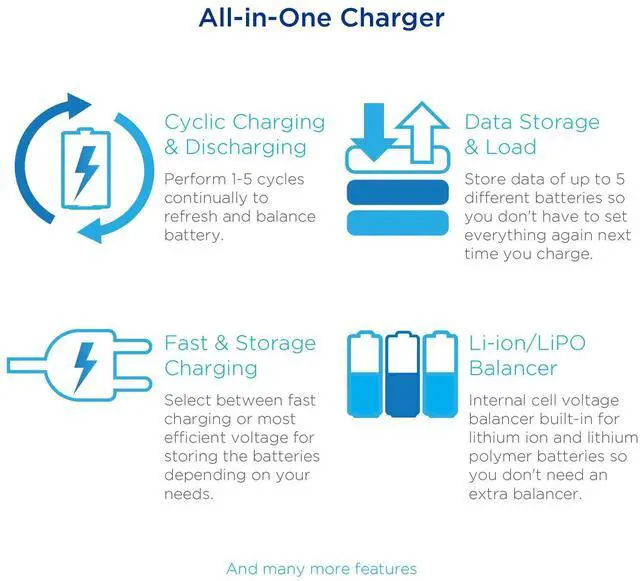

Cyclic Charging & Discharging: Perform 1-5 cycles continually to refresh and balance battery.
Data Storage & Load: Store data of up to 5 different batteries so you don't have to set everything again next time you charge.
Fast & Storage Charging: Select between fast charging or most efficient voltage for storing the batteries depending on your needs.
Li-ion/LiPO Balancer: Internal cell voltage balancer built-in for lithium ion and lithium polymer batteries so you don't need an extra balancer.
Specifications
- Operating voltage:
- -DC: 11~18 volts
- -AC: 100~240V, 50/60Hz (AC Adapter)
- Charge/discharge power: max. 50/5 Watts
- Pb: 2~20V
- Charge current: 0.1 to 5.0A
- Discharge current: 0.1 to 1.0A
- No. of cycles: 1 to 5 times
- Battery data memory: up to 5 data
- Weight: 246g
- Dimensions: 130 x 85 x 33 mm
Users' Set Up Parameters
- Battery voltage type:
- - Li-ion: 3.6V, LiPO: 3.7V, LiFePO4: 3.2V
- NiCd/NiMH Delta-peak voltage sensitivity: 1 to 20mV
- Battery temperature cut-off: 20 to 80C or OFF
- Waiting time between charge/discharge: 1 to 60 min.
- Integral timer limit: 10 to 720 min.or OFF
- Maximum charging capacity limit: 10 to 20,000mAh or OFF
- Key beep and buzzer sound: ON/OFF
- Input DC power low alert: 10 to 11V
