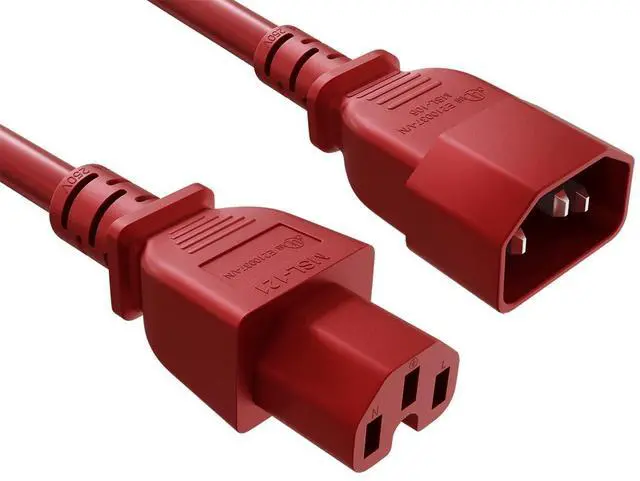

Cable Leader 6ft IEC C14 to C15 Heavy Duty PDU Power Cord, 14 AWG SJT 15A/250V, Red - Server Rack Jumper Cable for Network Switches & Hot Equipment, UL Listed
- C14 TO C15 PDU JUMPER: IEC 60320 C14 plug to notched C15 connector - powers equipment with a high-temperature C16 inlet from a rack PDU, power strip or C13/C14 outlet
- HIGH-TEMP C15 CONNECTOR: the C15 end is the higher-temperature IEC connector used by network switches, servers and gear that runs hot, where a standard C13 cord is not rated
- HEAVY DUTY 14 AWG, 15A / 250V: SJT-jacketed 3-conductor copper with 105C / 300V cable rating for demanding rack and PDU loads
- COLOR-CODE YOUR RACK: the red jacket helps you organize circuits and phases at a glance
- SAFETY CERTIFIED: UL Listed and CSA certified (file E210037), RoHS compliant
- CABLE LEADER LIFETIME WARRANTY: US-based brand and support - if it ever fails, we replace it
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Cable Leader 6 ft IEC C14 to C15 power cord is a heavy duty PDU jumper for high-temperature equipment. The C14 plug connects to a rack PDU, power strip or C13/C14 source; the notched C15 connector delivers power to equipment that uses a high-temperature C16 inlet - common on network switches, servers and gear that runs hot.
Why C15? The C15 connector is the higher-temperature version of the standard C13, with a notch so it only fits a C16 high-temp inlet. Built with 14 AWG, 15A / 250V 3-conductor copper and a SJT jacket (105C, 300V cable rating).
Choosing the right gauge: 18 AWG handles up to 10A for light electronics; 16 AWG up to 13A for computers; 14 AWG up to 15A for servers, PDUs and higher-draw equipment; 12 AWG up to 20A for heavy-duty 20A equipment.
Frequently Asked Questions
Q: What is the difference between C15 and C13?
A: C15 is the higher-temperature version of C13, with a notch so it only fits a C16 high-temp inlet.
Q: What plugs into what?
A: The C14 plug goes into a PDU/C13 outlet; the C15 connector plugs onto the equipment's C16 inlet.
Q: What is it rated for?
A: 14 AWG, 15A / 250V, SJT jacket, grounded 3-conductor, 105C / 300V cable rating.
Q: Is it certified?
A: Yes - UL Listed and CSA certified (file E210037), RoHS compliant.
Q: What colors and lengths are available?
A: Multiple lengths in blue, green, red, white and black to color-code your rack.
Why C15? The C15 connector is the higher-temperature version of the standard C13, with a notch so it only fits a C16 high-temp inlet. Built with 14 AWG, 15A / 250V 3-conductor copper and a SJT jacket (105C, 300V cable rating).
Choosing the right gauge: 18 AWG handles up to 10A for light electronics; 16 AWG up to 13A for computers; 14 AWG up to 15A for servers, PDUs and higher-draw equipment; 12 AWG up to 20A for heavy-duty 20A equipment.
Frequently Asked Questions
Q: What is the difference between C15 and C13?
A: C15 is the higher-temperature version of C13, with a notch so it only fits a C16 high-temp inlet.
Q: What plugs into what?
A: The C14 plug goes into a PDU/C13 outlet; the C15 connector plugs onto the equipment's C16 inlet.
Q: What is it rated for?
A: 14 AWG, 15A / 250V, SJT jacket, grounded 3-conductor, 105C / 300V cable rating.
Q: Is it certified?
A: Yes - UL Listed and CSA certified (file E210037), RoHS compliant.
Q: What colors and lengths are available?
A: Multiple lengths in blue, green, red, white and black to color-code your rack.
