How to choose a switching power supply: The max peak value of the load must be lower than the overload protection value of the power supply

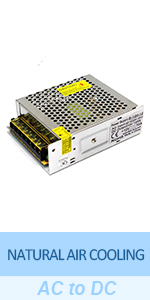

NO NOISE!NATURAL AIR COOLING
- Imported high quality Chips: Overload / Overvoltage / Overcurrent / Short circuit protection
- High Capacity Aluminum Electrolytic Capacitors: Large Capacity, Moderate Dielectric Strength, High ESR, Polarity
- High quality EMI filter inductor made of copper: Low loss, high efficiency, good heat dissipation, stability
- Transparent cover: Dustproof ; Prevent accidental touch
PROTECTION
- Overload: > 105% pause output
- Overvoltage: > 115% pause output
- Overcurrent: > 105% pause output
- Short-circuit protection: When the output terminal is short-circuited, pause output
- Not waterproof
- 1x Switch Mode Power Supply
- 1x White paper box
- Operating instructions : Download in "Product Documentation".
PARAMETER
- Rated Power: 120 watt
- AC Input voltage: 100-240V Alternating Current
- Frequency range: 50-60Hz
- Efficiency: > 85%
- Leakage current: <0.5 mA / 230 VAC

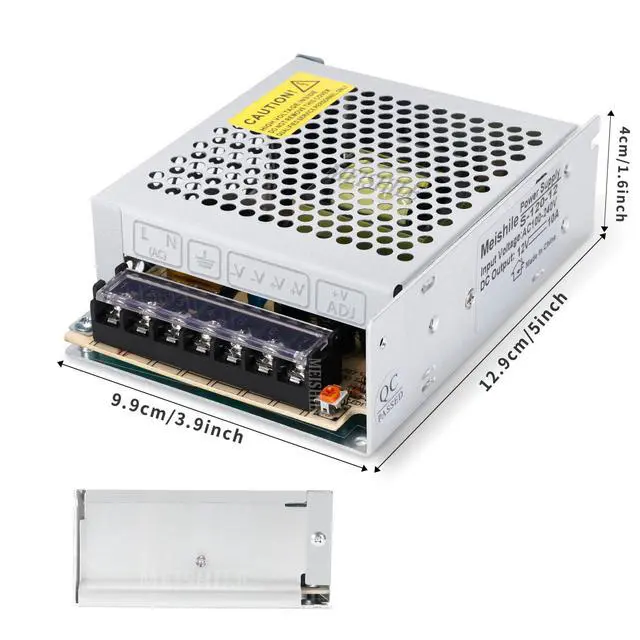

- Product Size (mm): 129*99*40
- Product Weight: 0.28kg

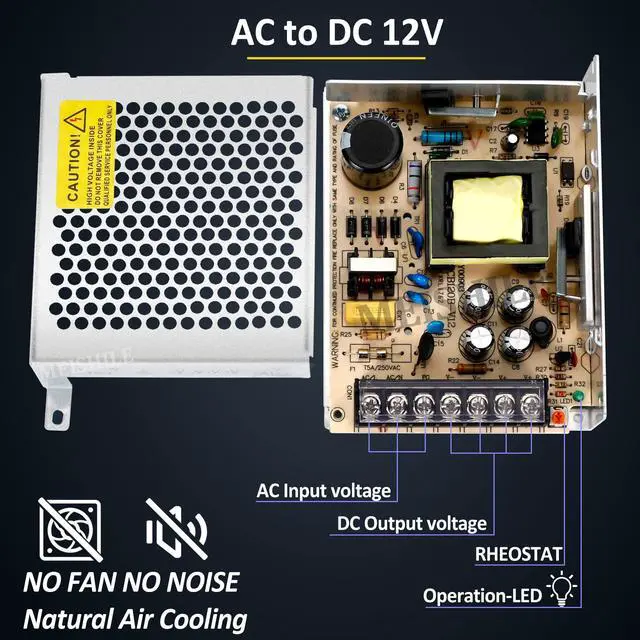

- DC output voltage: 12V Direct Current
- Adjustable output voltage range: ± 5% Nominal voltage
- Difference range: ± 1%
- Output current: 10A maximum
The maximum usage power don't exceed 70% of the full load, otherwise the service life will be greatly shortened
CHOOSE and ATTENTION
- Make sure your device has a voltage of 12V , Use power less than 84W
- If it runs 24 * 7 hours, the power consumed should not exceed 40% of the full load
- Applied to the Motor: 2 times the power of the device = the nominal power of the Power Supply unit
- Not suitable for Speed-Regulating Motors
- Not suitable for charging Batteries
- Please switch to a suitable voltage before use
- Without Power Cord / Screws
- Professional installation by a licensed electrician is highly recommended!
- Working Temperature: -10 ~ + 60 ? (Refer to the output load derating curve)
- Working Humidity: 20 ~ 90% RH
- Storage Temperature: -20 ~ + 85 ?
- Storage Humidity: 10 ~ 95% RH
- Temperature Coefficient: ± 0.03% / ? (0 ~ 50 ?)
- Start, Rise, Hold Time: 200ms, 50ms, 20ms
- Vibration Resistance: 10~500Hz, 2G 10min, / 1 cycle, duration 60 minutes, each axis
- Pressure Resistance: ( between inlet and outlet) 1.5 KvAC input and housing; 1.5 KvAC output and housing; 0.5 KvAC
As a Power Supply for LED

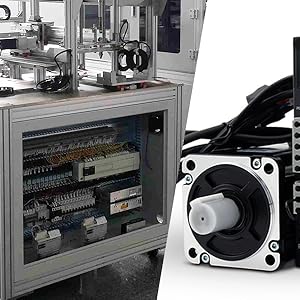

As a Power Source for Electronic Devices

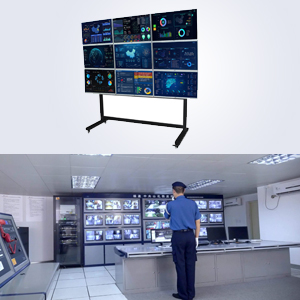

As a Power Supply for Displays, CCTV and Surveillance

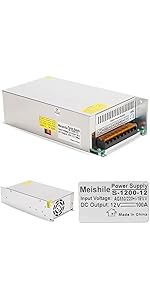

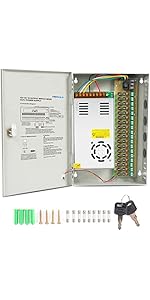

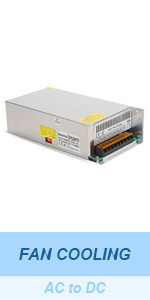

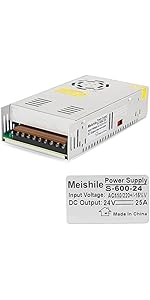

 12V 10A 120W |  18 Port Channel 12V 2A CCTV Power Supply Box AC-DC Distributed Cabinet 1.5/1/... |  12V 50A 600W DC Switching Power supply Adapter PSU AC-DC 12Volt Industrial Tr... |  24V 25A 600W DC Switching Power supply Adapter PSU AC-DC 24Volt Industrial Tr... |  12V 100A 1200W DC Switching Power supply Adapter PSU AC-DC 12Volt Industrial ... |  12V 100A 1200W | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Size (mm): | 129*99*40 | 31.5 x 21.5 x 6.4cm | 21.5×11.5×5cm | 21.5×11.5×5cm | 24.5 x 12.5 x 6.5 cm | 245*125*65 |
| Fan Cooling: | Natural Air Cooling | Natural Air Cooling | Natural Air Cooling | Natural Air Cooling | Natural Air Cooling | ? |
| AC-Input: 110V / 220V | ? | 110V (85~145V) | ? | ? | 110V (85~145V) | ? |
| Rated Power: | 120W | no data | 600W | 600W | 1200W | 1200W |
| Power | 120W | no data | 600W | 600W | 1200W | 840W |
