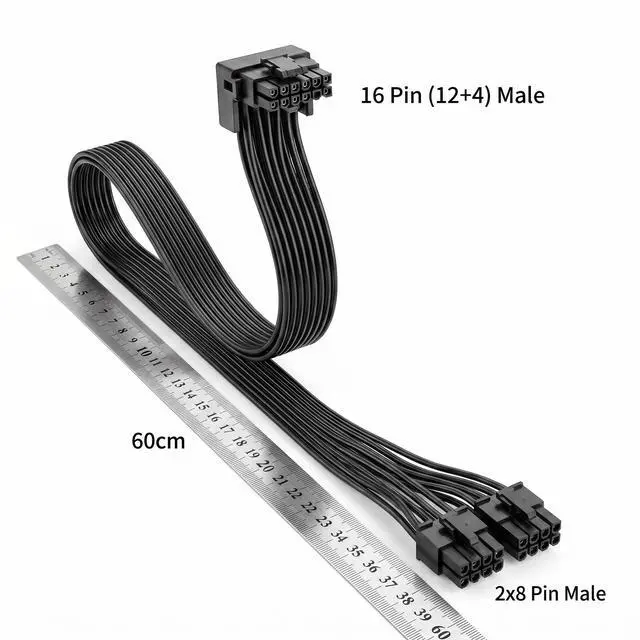

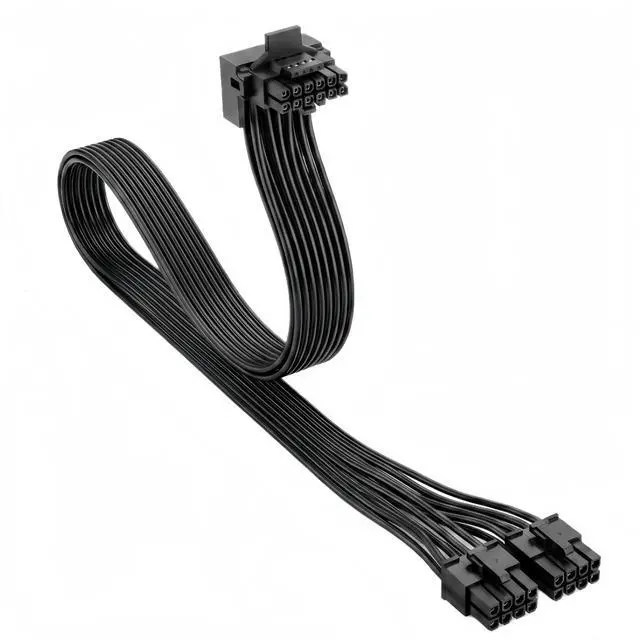

12VHPWR 90 Degree Angled Cable 2x8 Pin to 16 Pin (12+4) 24 inches 600W PCIe 5.0 GPU Power Cord, Type B (4-Pin on Top), for EVGA G/G+/P/P+/T & Super Flower Leadex PSUs RTX 4090/4080/4070/4060/3090 Ti

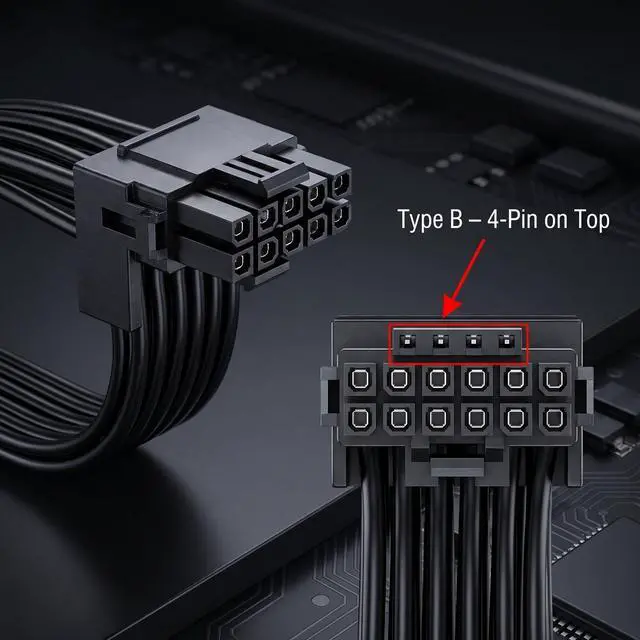

1. 90° RIGHT ANGLE TYPE B 4-PIN ON TOP DESIGN This cable features a 90° angled Type B connector, with the 4-pin sense wires positioned on the top side of the connector (closer to the GPU backplate). This configuration is ideal for graphics cards with components or capacitors located directly below the power connector, ensuring full insertion without interference. The angled design routes the cable cleanly downward, eliminating the need to bend within the critical 35mm stress zone. Requires only 20mm of side panel clearance.

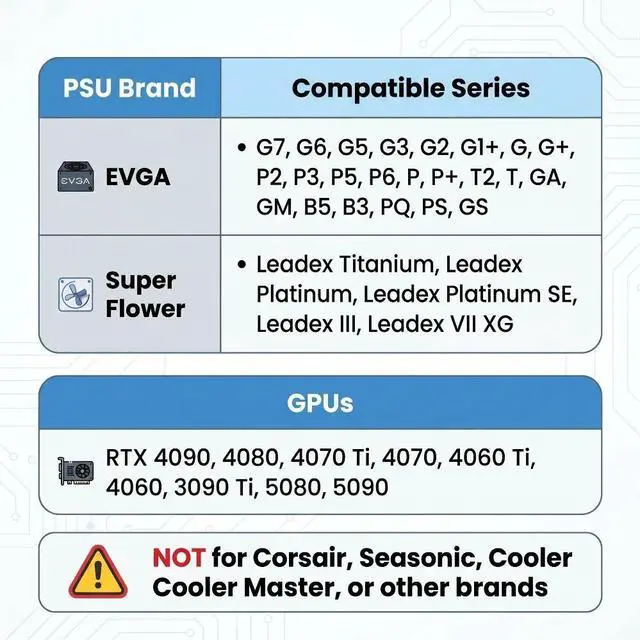

2. EVGA & SUPER FLOWER SPECIFIC EXACT PINOUT MATCH Precision-engineered for EVGA G series (G/G+/G2/G3/G5/G6/G7), P series (P/P+/P2/P3/P5/P6), T series (T/T2) and Super Flower Leadex series (Titanium/Platinum/Platinum SE/III/VII XG) power supplies. Uses the exact factory pinout. DO NOT use with Corsair, Seasonic, Cooler Master, or other brands mismatched pinouts WILL cause permanent damage to your GPU and/or PSU.
3. 600W PCIe 5.0 READY 16AWG HIGH CURRENT WIRE Built with premium 16AWG tinned copper wire, capable of carrying up to 55A of current with 105°C temperature rating. Dual 8-pin inputs deliver a full 600W of stable power more than enough for all 16-pin GPUs including RTX 4090, 4080, 4070, 4060, and 3090 Ti.

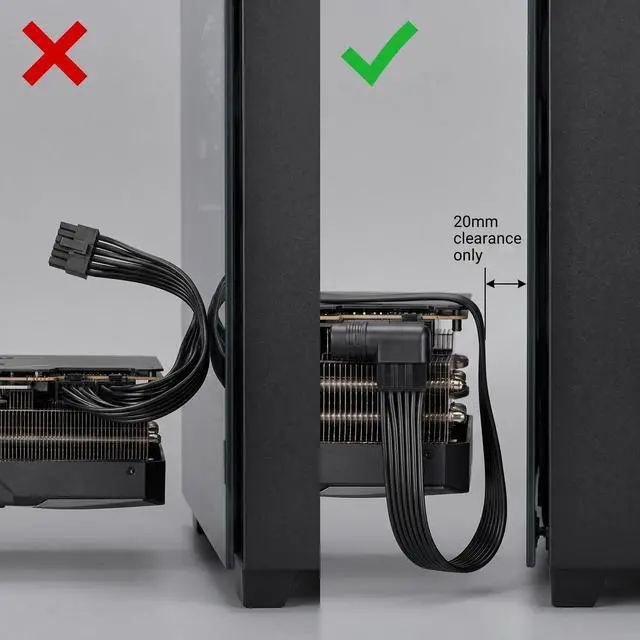

4. DIRECT REPLACEMENT CLEANER THAN EXTENSIONS This is a direct replacement modular cable, NOT an extension. The dual 8-pin male connectors plug directly into your PSUs modular ports, and the 16-pin male connector plugs straight into your GPU. No adapters, no daisy-chaining the shortest, cleanest power path from PSU to GPU. Requires only 20mm clearance from the side panel, perfect for compact cases.
5. CRITICAL SAFETY RULES READ BEFORE USE The #1 cause of 12VHPWR connector failure is incomplete insertion. Follow these rules: FULLY SEAT THE 16-PIN CONNECTOR Push straight and firmly into the GPU until you hear a CLICK. Verify NO VISIBLE GAP remains between the connector and GPU socket. MAINTAIN 35mm STRAIGHT ZONE Do not bend the cable within 35mm (1.4 inches) of the GPU connector. The 90° angle already routes the cable downward keep that zone straight. DIRECT REPLACEMENT ONLY This is a modular replacement cable. Do NOT combine it with any 12VHPWR extension cable.

Power the next generation of graphics cards with this Basics 12VHPWR 90 Degree PCI-e Cable. Featuring a 90-degree 12VHPWR connector paired with two 8-pin PCI-e connectors, this high-quality cable is a replacement cable for EVGA G / G+ / P / P+ / T power supplies and enables these PSUs to power graphics cards with a 12VHPWR power port. Designed to work with EVGA G / G+ / P / P+ / T power supplies, this 16-pin to 2 x 8-pin PCI-e cable enables ATX 2.0 PSUs to work with the latest generation of GPUs with the new 12VHPWR connector. This 12VHPWR 90 Degree PCI-e Cable comes equipped with a 90-degree 12VHPWR connector, allowing it to be installed in systems with limited clearance to the side panel. This cable is constructed with 16AWG wire to fully support 600W of power delivery. Each wire utilizes fully crimped terminals for the most reliable construction, and softer PVC wire jackets mean less stress on each terminal when wires are bent. This cable also uses precision molded connectors to ensure compatibility and a secure fit with todays 12VHPWR GPUs. Compatibility for: EVGA B3 750, 850 / B5 750, 850 EVGA SuperNOVA G+ 750, 850, 1000, 1300, 1600, 2000 EVGA SuperNOVA G1+ 750, 850, 1000, 1300, 1600 EVGA SuperNOVA G2750, 850, 1000, 1300, 1600 / G3 750, 850, 1000 / G5 750, 850, 1000 / G6 750, 850, 1000 / G7 750, 850, 1000/ EVGA SuperNOVA GA 750 Gold, 850 Gold EVGA SuperNOVA GM 750, 850 EVGA SuperNOVA GT 750, 850, 1000, 1300 EVGA SuperNOVA P+ 1300, 1600 EVGA SuperNOVA P2 750, 850, 1000, 1200, 1600 / P3 1000, 1200 / P5 750, 850, 1000 / P6 750, 850, 1000 / PS 1000 EVGA SuperNOVA T2 750, 850, 1000, 1200, 1600 Super Flower LEADEX GOLD 1600 / LEADEX III Gold 750W, 850W / LEADEX PLATINUM 1600, 2000 / LEADEX PLATINUM SE 850W, 1000W, 1000W V2, 1200W, 1200W V2 / LEADEX TITANIUM 750, 850, 1000, 1200, 1600
