Processor:
Intel Core i3-6100 processor
51 W
3.7 GHz base frequency
3 MB cache, 2 cores, 4 threads
Intel HD Graphics 530
DDR4 memory up to 2133 MT/s data rate
Memory:
4 GB DDR4-2400
Maximum: 64 GB
Number of slots: (4) DIMM (both slots are customer accessible/upgradeable)
Up to 2400 MT/s
Storage:
500GB 7.2 K rpm, SATA 3.0 ( 6.0 Gb/s), 8.89 cm ( 3.5 in)

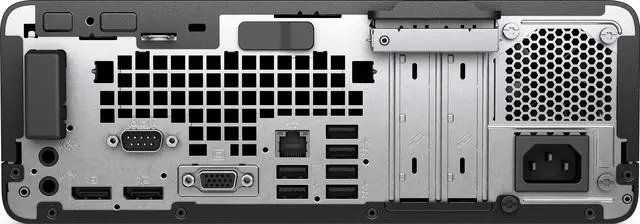

Ports:
(2) USB 2.0: (2) front (including 1 fast charging); (2) rear
(6) USB 3.1: (2) front; (4) rear
(1) USB Type-C 3.1 Gen1, front; (1) USB Type-C 3.1 Gen1 (optional), rear
(2) DisplayPort with multi-stream
(1) DisplayPort (optional)
(1) VGA (optional)
(1) HDMI (optional)
(1) USB-C (optional) (has alternate mode DisplayPort or 15 W output)
(1) Headset, front
(1) Audio line-in, rear
(1) Audio line-out, rear
(1) RJ-45 Ethernet
Expansion slots:
(1) Turbo Drive (M. 2 PCIe)
M. 2 PCIe x1-2230 (for WLAN)
(1) Turbo Drive (M. 2 PCIe)
M. 2 PCIe x4-2280 (for storage)
(2) PCI Express x16 (v 3.0 ); 1 wired as an x4
6.35 cm ( 2.5 in) low profile
16.76 cm ( 6.6 in) length
35 W maximum power
Bays:
(1) 6.35 cm ( 2.5 in) internal storage drive
(1) 8.89 cm ( 3.5 in) internal storage drive
NOTE: SFF can be configured with either (1) 3.5 inch or (1) 2.5 inch internal storage drive ( 2.5 inch drive needs adapter).
(1) Secure Digital (SD) 4 Reader
(1) 9 mm ( 0.35 in) Slim ODD
Chassis: (W x H x D)
269.24 x 93.98 x 297.18 mm ( 10.6 x 3.7 x 11.7 in)
