HP EliteDesk 705 G4 Desktop Mini Business PC AMD PRO A6-9500E R5 8 GB RAM 256 GB SSD Windows 10 Pro

HP EliteDesk 705 G4 Desktop Mini Business PC

PROCESSOR:

AMD® PRO A6-9500E APU with AMD® Radeon Graphics (3.4 GHz Max boost, 3.2 GHz base

frequency, 1MB, 35W, Dual core)

MEMORY:

DDR4-2666 (Transfer rates up to 2666 MT/s), 32 GB, 2 SODIMM1

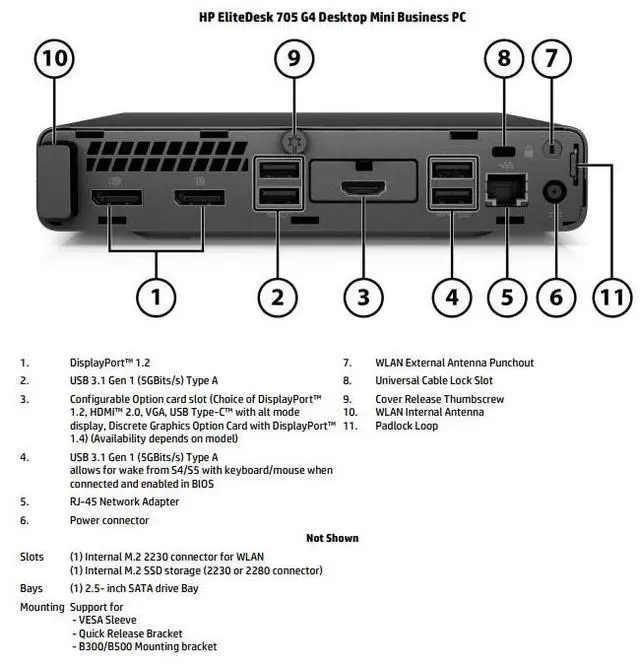

PORTS:

USB 3.1 Gen 1 2 front; 4 rear

USB 3.0 Type-C (15W) 1 front; 1 rear (option)

Video 2 DisplayPort 1.2 (rear),

1 Configurable video port (rear)

(Choice of DisplayPort 1.4,

HDMI 2.0, VGA, or USB TypeC with alt mode display)

For models with discrete

graphics:

1 DisplayPort 1.4 (rear)

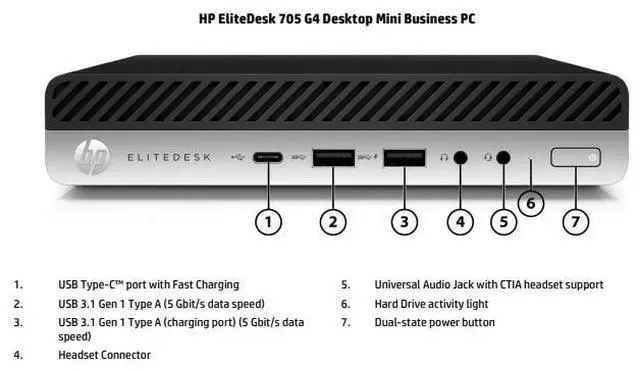

Audio 1 Headset (front),

1 Universal Audio Jack with

CTIA headset support (front)

Network Interface RJ45

I/O Ports Optional

Serial (RS-232) 1 (rear)(option)

I/O Ports Internal Ports

Internal SATA storage

connector (Data and Power) 1

Slots:

M.2 PCIe (1) M.2 PCIe x1 2230 (for WLAN)

(1) M.2 PCIe x2 2280/2230

Combo (for storage)

Bays:

2.5 internal storage drive 1 (optional)

Memory Configuration

4 GB (1 x 4 GB) 2666 DDR4 SODIMM1

8 GB (2 x 4 GB) 2666 DDR4 SODIMM1

8 GB (1 x 8 GB) 2666 DDR4 SODIMM1

16 GB (2 x 8 GB) 2666 DDR4 SODIMM1

16 GB (1 x 16 GB) 2666 DDR4 SODIMM1

32 GB (2 x 16 GB) 2666 DDR4 SODIMM1`

NETWORKING AND COMMUNICATIONS :

Realtek RTL8111EPH 10/100/1000 Integrated NIC

Connector RJ-45

System Interface PCIe + SMBus

Wireless LAN Standards IEEE 802.11 ac/a/b/g/n

AUDIO/MULTIMEDIA

Type Integrated

HD Stereo Codec Conexant CX20632

Audio I/O Ports

Front: 1 - Headset connector supports a CTIA style headset and is re-taskable as a Line-in, Lineout, Microphone-in or Headphone-out port

1 - Headphone port

All ports are 3.5mm and support stereo

Internal Speaker Amplifier 2W class D mono amplifier for the internal speaker only. External speakers must be powered

Multi-streaming Capable

Playback multi-streaming can be enabled in the audio control panel to allow independent audio

streams to be sent to/from the front and rear jacks or integrated speaker.

Sampling

Independent sampling rates for DACs and ADCs; supports resolutions from 16 to 24-bit; 44.1 kHz

to 192 kHz for DAC and 44.1 kHz to 96 kHz for ADC

Wavetable Syntheses Yes - Uses OS soft wavetable

Analog Audio Yes

# of Channels on Line-Out Stereo (Left & Right channels)

Internal Speaker Yes

NOTE:

For Desktop Mini with M.2 Storage config, there will be no SATA drive bracket. If you plan to use or upgrade the storage with any 2.5" SATA

drive, please select a DM SATA Drive Bracket (available as both factory configured and after market option).
