NEXCOM Industrial PC | Factory automation Atom Compact NISE53-E01-OLS Intel® Celeron® processor J6413, 1.8 GHz DDR4 8GB 2666, SO-DIMM

Overview
NISE 53 is a fanless PC powered by the newest generation Intel^® Celeron^® J series and Atom^® x6000 series (formerly code-named Elkhart Lake) processors. It offers power-efficient performance designed for the next generation of industrial edge-connected embedded systems that require highresolution graphics and low power consumption - such as industrial automation, intelligent transportation, retail, and smart city IoT solutions. NISE 53 can operate in an extended temperature range from -10°C to 60 °C, indicating its reliability in industrial environments. NISE 53 supports up to 3 display outputs simultaneously and delivers superior graphics capabilities via Intel® UHD graphics 16EUs. NISE 53 has strong connectivity 3 x Gbe LAN ports, and 2 x COM ports, mainly for Modbus TCP or Modbus RTU communication. NISE 53 supports efficient scalable networks and storage configurations with an internal 1 x M.2 slot for 4G LTE, 1 x full-size mini-PCIe slot for Wi-Fi and Bluetooth, and front-accessible 1 x M.2 slot for storage. NISE 53 drives performance, integration, and versatility for industrial environments, offers a lower total cost of ownership, and supports 12 VDC/24 VDC and onboard TPM2.0 for enhanced security.

AIoT Software free download https://www.aiotcloud.dev/en/community-version

NISE 53 Next-Generation Fanless Embedded System for Industrial IoT

To support the next Generation of IoT edge devices, a brand new industrial fanless embedded system NISE 53 is powered by Intel Elkhart Lake processors enhanced for IoT - the Intel Atom® x6000E series, and Celeron® J series processors. These processors build on new levels of CPU and graphics performance with integrated IoT features, real-time performance, manageability, security, and functional safety.

Intel Atom® x6000E Series and Celeron® J Series Processors for industrial IoT

NISE 53 powered by Intel® Celeron® processor J6413, 1.8 GHz offers 40% better CPU performance and improved graphics compared to previous Generation, also support Intel Atom® processor x6211E with different SKUs. NISE 53 features a 1 x DDR4 2133 SO-DIMM socket that supports up to 16 GB of memory. As for storage, several options are available - full-size mini-PCIe or front-access M.2 Key B slot - or choose an option to expand storage with onboard 32 GB eMMC.

Superior Graphics

NISE 53 takes a huge leap in graphics capabilities with Intel® UHD Graphics 16EUs and supports up to three simultaneous displays. Intel's Gen11 integrated GPU is ideal for 3D graphics and a wide range of GPGPU-driven applications as it supports major acceleration APIs such as DirectX 12, OpenGL 4.5, Vulkan 1.1, OpenCL 1.1, and metal.

Real-time Connectivity

Designed for industrial real-time applications, NISE 53 supports TSN (Time Synchronized Networking) - standards and capabilities based on standard Ethernet networks to support time-sensitive applications and supports time synchronization, timeliness for ultra-reliable low-latency communication, as well as traffic scheduling.

All you Need Peripheral Devices

NISE 53 peripheral connectivity ports include 3 x HDMI, 1 x Intel® I210 2GbE LAN port, 2 x Marvell SOC PHY Gbe LAN ports, 2 x USB 3.0 Type-A and 2 x USB 2.0 Type-A ports, 2 x RS232/485 with optional auto-flow control function.

Security at The Edge

NISE 53 Intel Atom® and Intel® Celeron® based fanless embedded system features integrated security functions. Intel® AES new instructions for wireless security, processor security, file encryption, and SSL/TLS. Intel® secure key is useful for Generating high-quality keys for cryptographic protocols. In addition, Execute Disable Bit , Intel® OS Guard, and Intel® Boot Guard security features that can reduce exposure to viruses and malicious-code attacks, and prevent harmful software.

Front Accessible Storage and Even More Expansion Possibilities

NISE 53 offers expansion through one PCIe Generation. 3 and supports efficient scalable networks and storage configurations with an internal 1 x M.2 slot (Key B) for 4G LTE, 1 x full-size mini-PCIe slot for Wi-Fi and Bluetooth, and front-accessible 1 x M.2 slot (Key B) for storage. I/O ports include 3 x HDMI, 3 x Gbe LAN, 2 x USB 3.0, 2 x USB 2.0, 2 x COM.

Bringing AI and Machine Learning to Smart Manufacturing

These features make NISE 53 a safe option for AI and machine learning applications in industrial environments. To enable customers to build high-performance, intelligent vision solutions NISE 53 supports Intel® Media SDK and OpenVINO toolkit. Emulate human vision with OpenVINO toolkit for character and image recognition. Elkhart Lake hardware accelerated codecs can be used to offload media decode and encode workloads.

Extended Product Availability

NISE 53 is designed for high reliability and long service life. For processors, Intel® offers 10 years of continuous 24/7 operation (100% in sleep state S0), and currently, the standard availability of NexAIoT products is 10 years.

Specifications

CPU Support

• Intel® Celeron® processor J6413, 1.8 GHz

Main Memory

• DDR4 8GB 2666, SO-DIMM

Display Option

• 3 x HDMI (triple displays)

Front I/O Interface Status LEDs

• LED on top, 1x SATA LED, 2x programmable LED

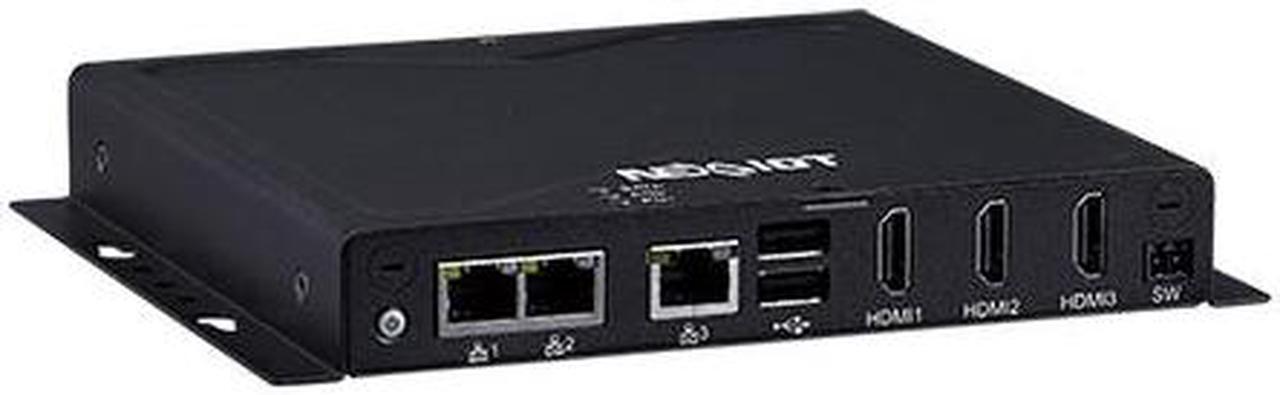

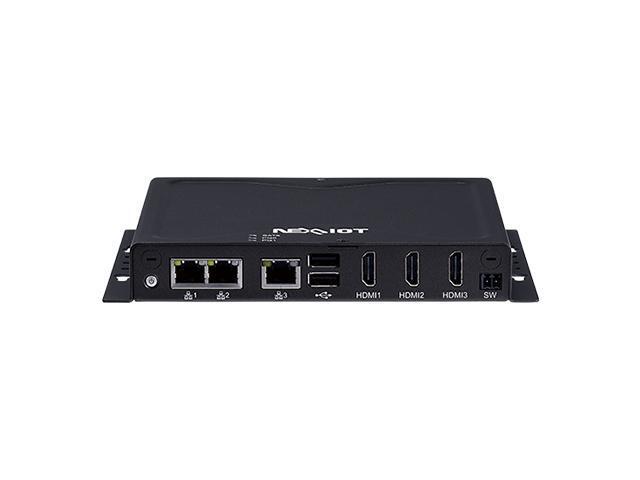

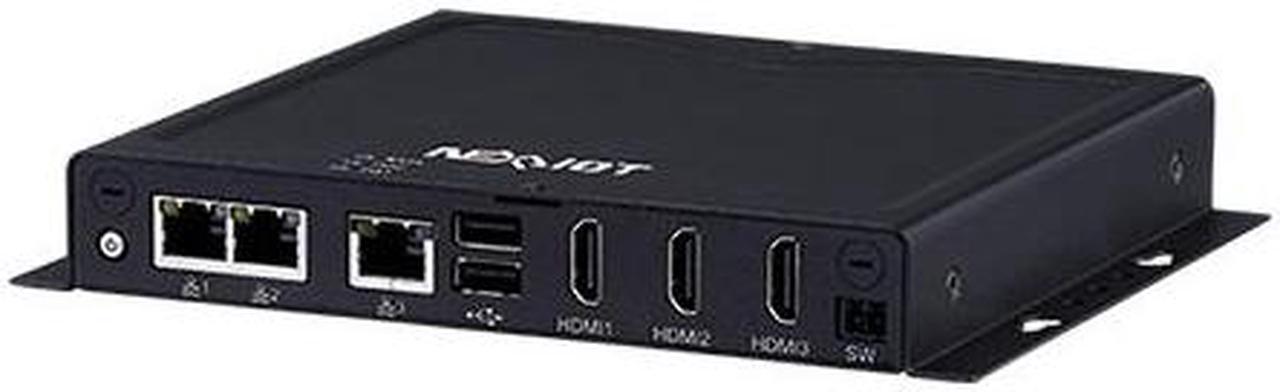

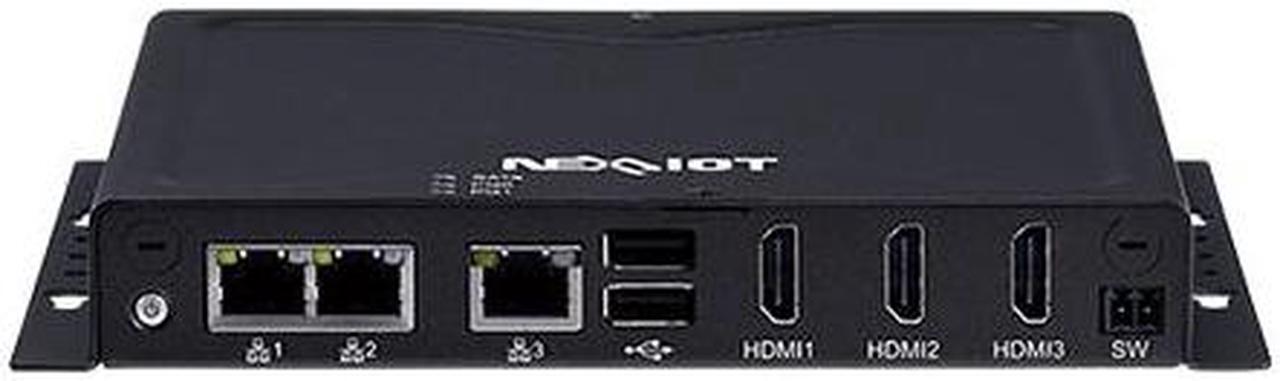

Front I/O Interface

• ATX power on/off switch


• 3 x HDMI 1 x Intel® I226V GbE LAN port


• 2 x Marvell SOC PHY Gbe LAN ports


• 2 x USB 2.0 (900mA per each)


• 1 x 2-pin remote power on/off switch

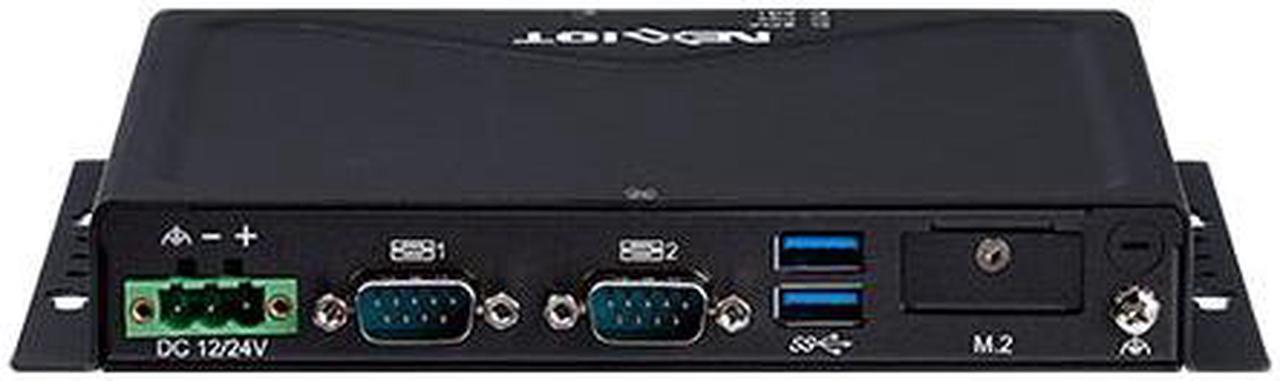

Rear I/O Interface

• 2 x USB 3.1
  2 x DB9 for COM1 & COM2, support RS232/485
  1 x 3-pin terminal block, support +12/+24V DC input

Storage Device

• 128GB SATA SSD

Expansion Slot

• 1 x Internal nano SIM card holder


• 1 x Full-size mini-PCIe for Wi-Fi/BT/4G LTE/storage


• 1 x Front access M.2 Key B 2242 for 4G LTE/ PCIe& SATA storage


• 1 x Internal M.2 Key B 3042/3052 for 5G/4G LTE

Power Requirements

• +12/+24V DC in, adapter included

Dimensions

• 186mm (W) x 150mm (D) x 26mm (H)

Construction

• Metal chassis

Environment

•  -10°C to 60°C

Certifications

• CE


• FCC Class A

OS Support Lists

• Windows 11


• Windows® 10 Enterprise 64 bit


• Linux Kernel version 4.19

Weight Information

• Net Weight: 1.1kg
