NexCOBOT Single Board Computer | Embedded Computer EBC358X-6413E Intel Atom® x6000 series processors, x6413E 1 x SO-DIMM DDR4 with non-ECC SO-DIMM 3200 MHZ up to 32GB

Redefine Industrial Automation and Renewable Energy Management with the EBC 358X Series

NexCOBOT’s EBC 358X series 3.5” embedded motherboard offers unmatched performance in a compact package. It’s engineered for wide-temperature adaptability, thriving in diverse harsh industrial environments. Designed for renewable energy management, it combines 5G connectivity, display performance, reliability, and efficiency. Powered by the Intel Atom® x6000E series processor, it delivers a 40% performance boost, accompanied by extensive I/Os, and temperature resilience. Its versatile applicability shines in industrial automation, EV charging station, energy efficiency monitoring and PV inverter management.

AIoT Software free downloadhttps://www.aiotcloud.dev/en/community-version

Reliable and Robust for extreme environment

Designed for both industrial automation applications and renewable energy management, the EBC 358X series thrives in a broad temperature range of -40°C to 80°C, making it suitable for outdoor and semi-outdoor environments. NexCOBOT also provides wide-temperature thermal solutions, offering services including thermal simulation, cooling consultation, and hardware design to ensure reliable operation.

Powering EV charging stations with 5G connectivity

With 5G connectivity, the EBC 358X allows for powering existing and new IoT integrations, such as digital signage, CCV cameras, remote management of equipment, etc and adding complimentary high-speed WIFI access for customers waiting for their cars to charge.

High resolution display support elevates the charging experience

The EBC 358X also supports triple display VGA, HDMI, LVDS , with resolution up to 1920 x 1080@60Hz. Up-to-date information, such a charging progress, status, and space availability can be delivered with clear visibility in EV charging station. User can also enjoy real-time news, traffic conditions, weather forecast and dynamic visual merchandising content—day and night, rain or shine—during the charging time. Waiting can be surprisingly captivating.

Serving as both a controller and sensor information collector, the EBC 358X series is also an optimal renewable energy management tool. This versatile 3.5” board is equipped with an enhanced CPU, triple display outputs, practical expansion slots for LTE/5G network, and a wide array of I/O interfaces. The enclosure customization option is also available for special circumstances. It’s posed to address a myriad of manual labor challenges and optimize energy use. As we navigate through the wave of digital transformation, the EBC 358X series propels us closer to an intelligent and automated industrial world.

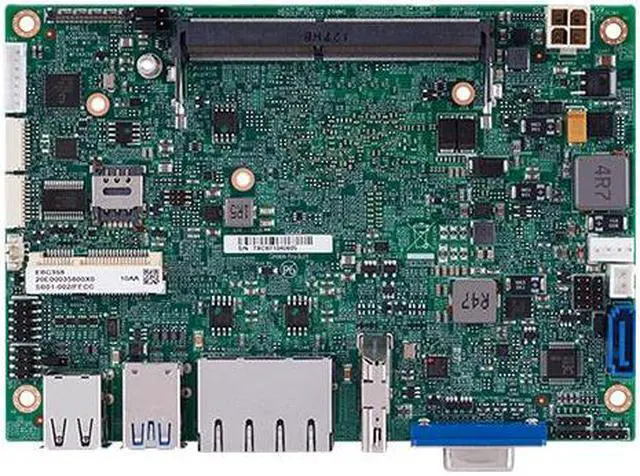

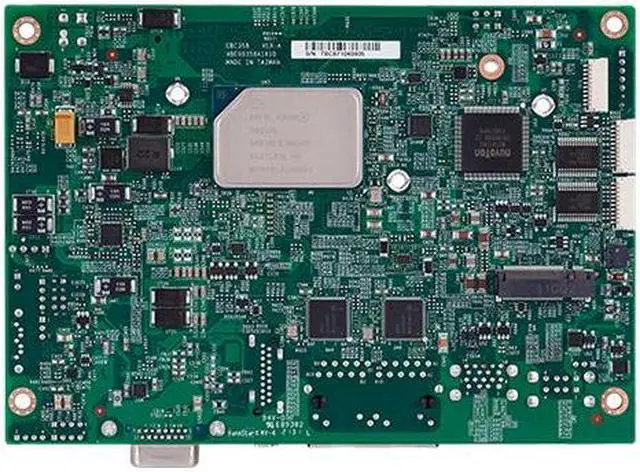

The EBC 358X is an 3.5” SBC. It is equipped with Intel Atom® x6000 processor. It comes with four DDR4 SO-DIMM sockets up to 32GB DDR4 3200MHz with non-ECC support and integrated UHD graphic controller.

EBC 358X operates at a temperature range from -40°C to 80°C, this design is ideal for embedded applications that run in outdoor or semi-outdoor environments, such as outdoor systems installed in harsh environments, home automation, and thin clients.

3.5” SBC Target Market:

Energy and environment/traffic signal control and monitoring/speed cameras/railway gates/MRT-TVM/charging stations.

Specifications

CPU

- Intel® Atom® x6413E processor, Quad Core, 1.5M Cache, 1.5GHz (3.0GHz), 9W.

Main Memory

1 x SO-DIMM DDR4 with non-ECC SO-DIMM 3200 MHZ up to 32GB

BIOS

AMI (UEFI)

Display

1 x VGA (resolution up to 1920 x 1080@60Hz)

1 x HDMI 1.4b (resolution up to 3840 x 2160@30Hz)

1 x Dual channel 18/24-bit LVDS (resolution up to 1920 x 1080@60Hz)

Storage

1 x SATA 3.0/1 x SATA power connector x 1(+5V)

Expansion Slot

1 x Full size mPCIe with Nano-SIM (support PCIe/USB 2.0 Interface)

1 x M.2 3042 Key B (support SATA/PCIe/USB 3.2 Gen1) with nano-SIM

Rear I/O

2 x USB 3.2 Gen 1

2 x GbE LAN (Intel i210-IT)

2 x USB 2.0

1 x VGA, 1 x HDMI connector

Internal I/O

2 x USB 2.0 (pin header)

4 x Serial ports:

1 x RS232, 2 x RS232/485/422

1 x Front panel header, 8-bit digital I/O(4-In/4-Out)

WDT, supports onboard TPM 2.0

HD Audio (Line-Out, SPK-Out, Mic-In)

1 x Fan connector

1 x 4-pin (2 x 2) ATX power connector

Power Requirements

1 x 4-pin (2 x 2) ATX power connector

- Input power DC 12V or 24V only

Support both AT and ATX power supply mode

Dimensions

3.5” SBC form factor, (146mm x 105mm=5.75in x 4.13in)

Environment

Board level operation temperature: -40°C to 80°C. (base on the cooler kit)

Storage temperature: -40C to 85C

Relative humidity:

- 10% to 95% (operating, non-condensing)

- 5% to 95% (non-operating, non-condensing)

Certifications

Meet CE /FCC Class A

OS Support

Windows 10 (64bit)

Weight Information

1Kg

Warranty

2Year global warranty
