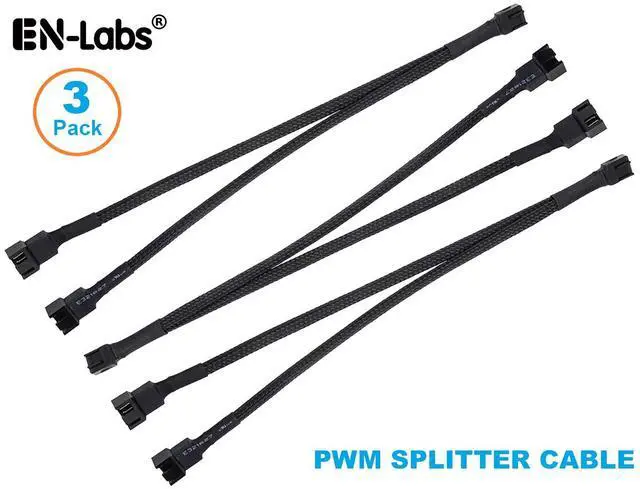

PWM Fan Splitter Cable,Black Sleeved 4pin PWM 2-Fan Power Y Power Cable, Motherboard 4-Pin Fan Header 1 to 2 Converter Adapter - 10.6",3 Packs
Limited time offer, ends 09/30 By EN Labs Marketplace
- 3-Pack PWM 4pin 1 to 2 power splitter Y cables
- 2 way 4pin PWM fan power splitter
- 10 inches in cable length
- 24AWG copper conductor
- Black Net Jacket Sleeved
- Fans can spin at the same speed using software of PWM control
+
+
Overview
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Features

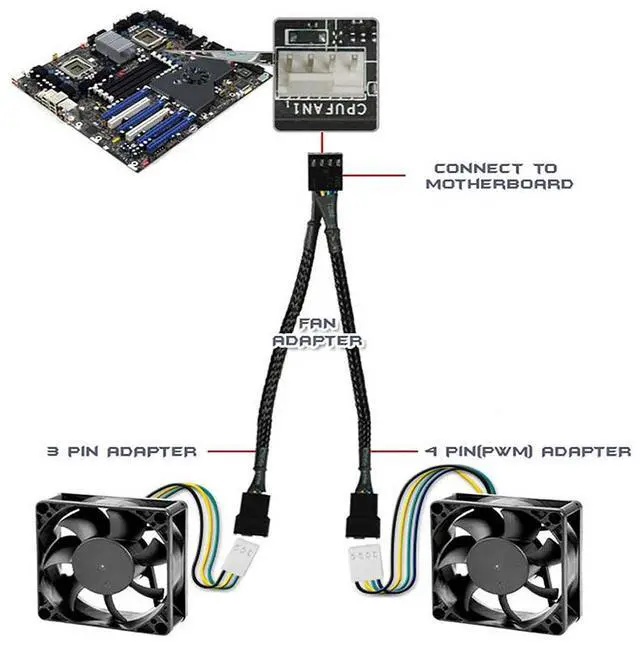

PWM FAN SPLITTER Y-CABLE connects 2 computer PWM fans to a single motherboard fan header;
1 to 2 fan converter cable connects an additional fan to increase airflow in your computer case
Connect 4-Pin receptacle to the 4-Pin header on the motherboard and splits the signal to 2 PWM fans;
Fans can spin at the same speed using software from a motherboard equipped with PWM control

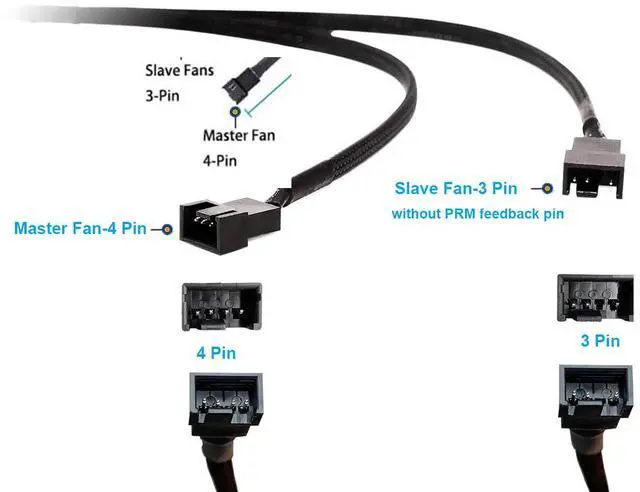

MASTER/SLAVE FAN PLUGS have a 4 pin fan connector a wire that sends the RPM signal to the motherboard connector for synchronizing the fan speed with the other fan;
3 pin fan connector omits the RPM signal pin for tandem fan speeds with both fans

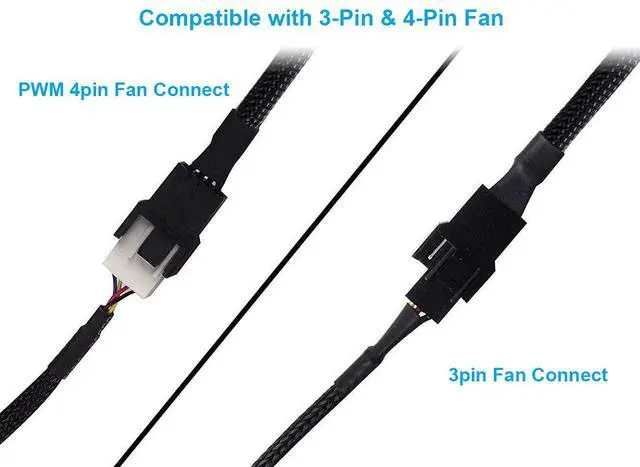

3-PIN & 4-PIN FAN COMPATIBLE with popular brands of computer case cooling fans
Note:
3pin fans are run in full speed, no PWM function
Only the fan on 4-pins connector is used for monitoring.
All connected fans are following the same PWM signa, speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc
PWM capable connectors must necessarily be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default. Please carefully consult your motherboard documentation in this respect.
Specification
Type - 1 x 2 PWM fan power splitter cable
Connector A - 1 x PWM 4pin female
Connector B - 2 x PWM 4pin Male
Conductor - 24AWG Copper

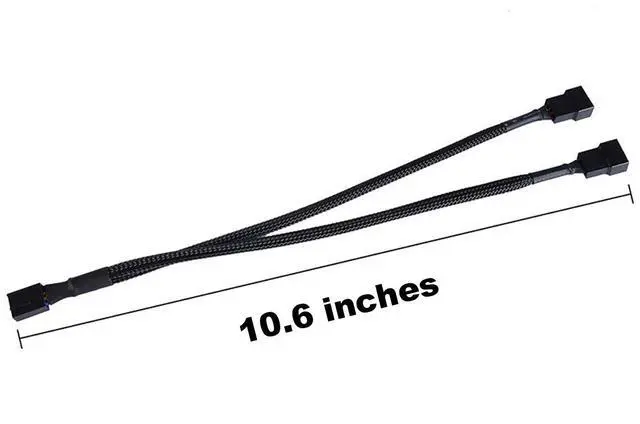

Length - 10.6 inch / 27CM
Quantity - 3 Pieces
PWM FAN SPLITTER Y-CABLE connects 2 computer PWM fans to a single motherboard fan header;
1 to 2 fan converter cable connects an additional fan to increase airflow in your computer case
Connect 4-Pin receptacle to the 4-Pin header on the motherboard and splits the signal to 2 PWM fans;
Fans can spin at the same speed using software from a motherboard equipped with PWM control
MASTER/SLAVE FAN PLUGS have a 4 pin fan connector a wire that sends the RPM signal to the motherboard connector for synchronizing the fan speed with the other fan;
3 pin fan connector omits the RPM signal pin for tandem fan speeds with both fans
3-PIN & 4-PIN FAN COMPATIBLE with popular brands of computer case cooling fans
Note:
3pin fans are run in full speed, no PWM function
Only the fan on 4-pins connector is used for monitoring.
All connected fans are following the same PWM signa, speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc
PWM capable connectors must necessarily be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default. Please carefully consult your motherboard documentation in this respect.
Specification
Type - 1 x 2 PWM fan power splitter cable
Connector A - 1 x PWM 4pin female
Connector B - 2 x PWM 4pin Male
Conductor - 24AWG Copper
Length - 10.6 inch / 27CM
Quantity - 3 Pieces
