    Darkside USB Mini-Transformer to 12v Fan Adapter Cable, 50cm, Black (DS-1043)

    • DarkSide USB cable with a mini transformer that up-volts the USB port to 12 V for a fan: a single 4-pin fan connector for 3-pin and 4-pin fans, 50 cm, sleeved in jet black
    • Make sure you do not exceed USB max power specification: 0.5 A ( USB 2.0) 0.9 A ( USB 3.0)
    • Specification:
    • USB to a single fan connector
    • Fan connector type: 4pin (connects both 3-pin and 4-pin fans)
    • Cable Length: 50cm
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

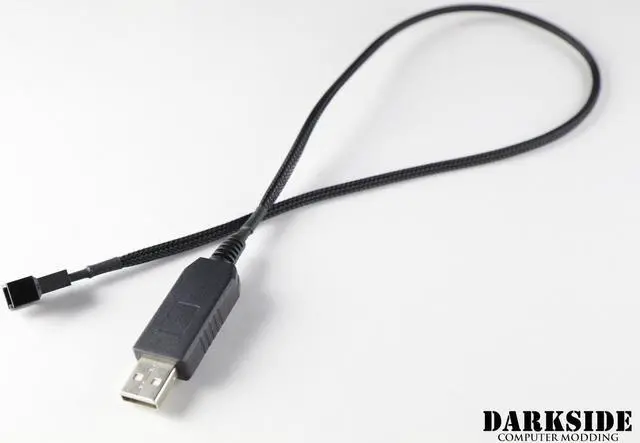

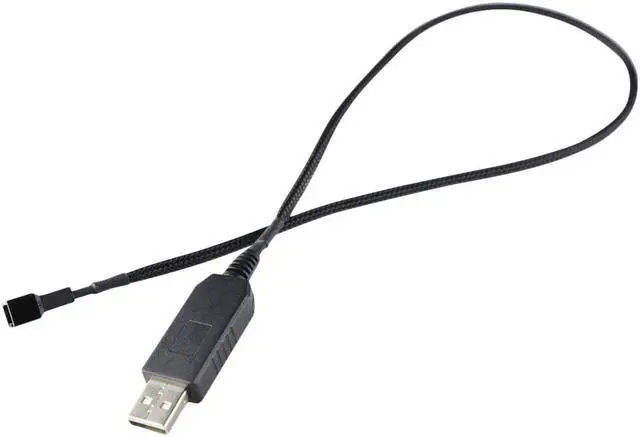

    This DarkSide USB cable has a built-in mini transformer that steps the 5 V of a USB port up to 12 V, so you can run a fan at the 12 V it is made for from any USB port. The cable ends in a single 4-pin fan connector for 3-pin and 4-pin fans, is 50 cm long and sleeved in DarkSide jet black.

    Properties

    • Type: USB to 12 V fan adapter with mini transformer
    • Input: USB-A plug, 5 V
    • Output: 1x 4-pin fan connector, 12 V
    • Fans: 3-pin and 4-pin
    • Cable length: 50 cm
    • Sleeving: DarkSide, Jet Black
    • Pieces in the pack: 1

    12 V fans from a USB port

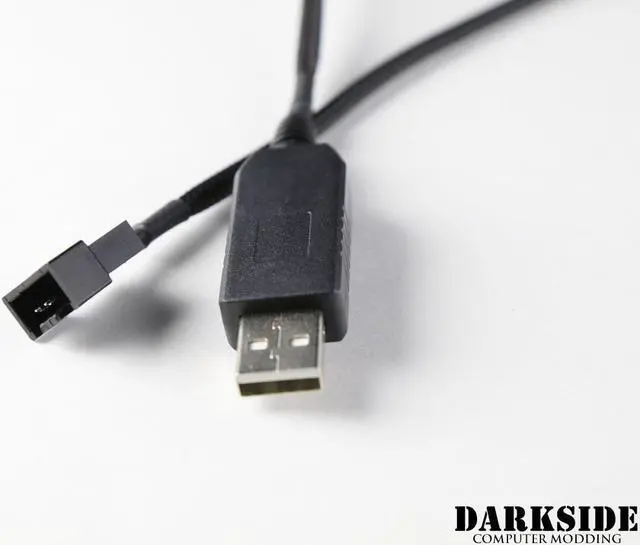

    The mini transformer in the housing next to the USB plug up-volts the 5 V of the port to the 12 V level, so a 12 V fan runs at its rated voltage instead of the slow crawl it would manage on 5 V. Use it for a fan on a test bench, an external radiator, a router or a media box, or anywhere without a fan header.

    3-pin and 4-pin fans

    The fan connector is a 4-pin type that takes both 3-pin and 4-pin fans. Only power is passed on; there is no PWM speed control through the cable.

    Stay within the USB power limit

    Make sure you do not exceed the maximum power of the USB port: 0.5 A on USB 2.0 and 0.9 A on USB 3.0. Stepping the voltage up to 12 V draws more current from the port than the fan uses at 12 V, so choose low power fans.

    Technical data

    • Brand: DarkSide
    • Type: USB mini-transformer to 12 V fan adapter, single
    • Input: USB-A, 5 V
    • Output: 1x 4-pin fan connector, 12 V (fits 3-pin and 4-pin fans)
    • USB current limit: 0.5 A (USB 2.0), 0.9 A (USB 3.0)
    • Cable length: 50 cm
    • Sleeving color: Jet Black

    Notes

    • DarkSide makes this cable for one fan (DS-1043) and for two fans (DS-1044). This listing is the single fan version.

    In the box

    • 1x Darkside USB Mini-Transformer to 12v Fan Adapter Cable
