Warning
- This board is suitable for electronics enthusiast over 13 years old, and minors need to use it under the guidance of adults.

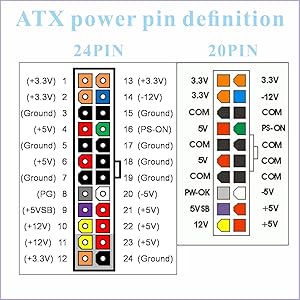

- It is compatible with 20/24pin ATX power supplies. Different ATX power supplies may provide different maximum currents.
- It does not have an insulating shell, so please be sure to pay attention to short-circuit when using it.
- It may produce electric sparks when it is accidentally short-circuited. Please keep away from flammable and explosive materials such as alcohol when using this board.
- In the case of a short circuit, the ATX short circuit protection may cut off the circuit before the fuse, and it is not that the fuse of the board is bad.
- When the fuse is blown, the indicator light will go out and the output ports will not provide output voltage.
- It may generate a lot of heat when connected to a high-current device. Please pay attention to ventilation and heat dissipation, and take care to avoid burns.
Wire & Fuse
At room temperature of 77±9? / 25±5?
- When the current reaches the rated current, the blowing time is at least 4 hours.
- When the current reaches twice the rated current, the blowing time is up to 120 seconds.
- When the current reaches 10 times the rated current, the blowing time is at least 10 milliseconds.
Recommended oxygen-free copper wire and maximum current:
26AWG~1.5A / 25AWG~2A / 24AWG~3A / 23AWG~4A / 22AWG~5A / 21AWG~6A / 20AWG~8A
When connecting high-current equipment, please pay attention to the use of appropriate wires, too thin wires will produce high temperatures.
