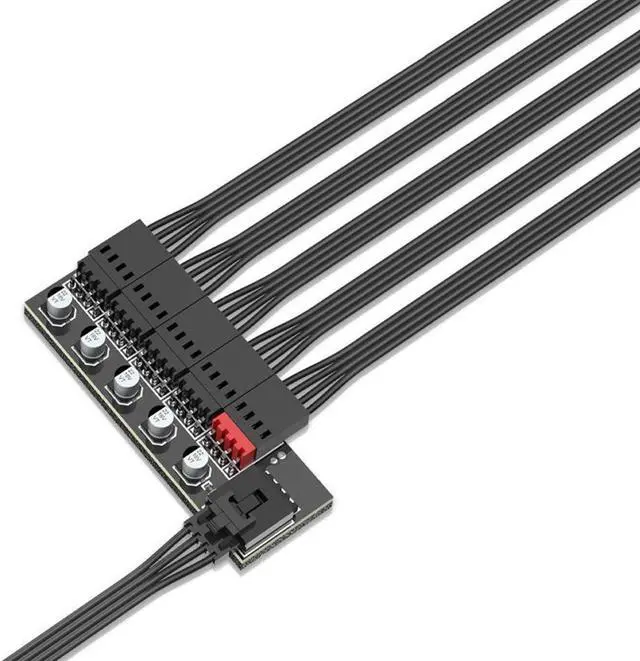

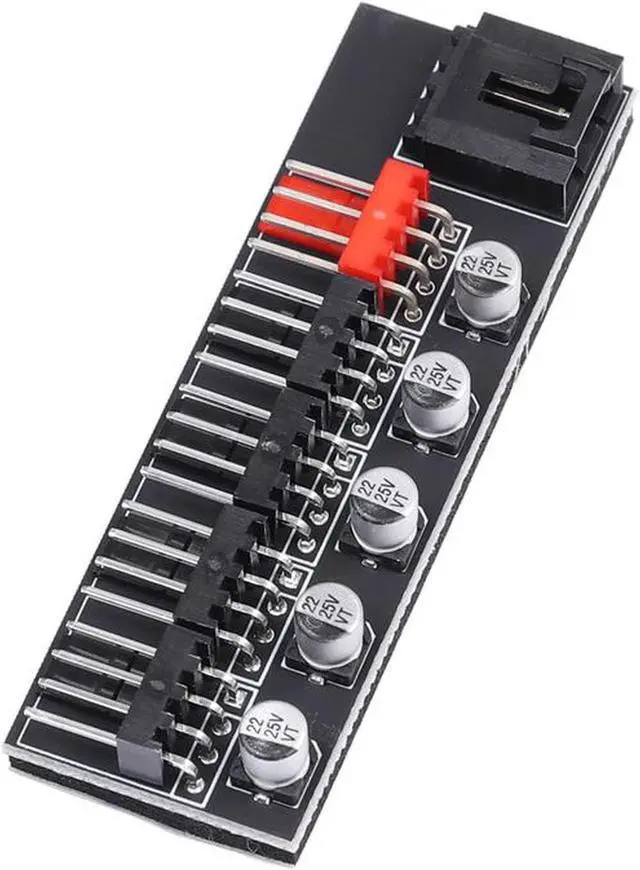

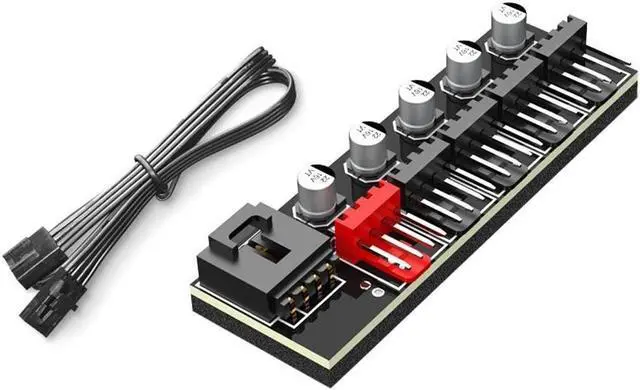

PWMHUB5 5 Ports 4Pin PWM Fan Splitter Hub Cable,Motherboard 4 pin to 5 way Fan Power Cable for 12V Computer Fans
Limited time offer, ends 09/28 By YuXuan Technology
- 5 Ports 4pin PWM fan hub power splitter
- Compatible with 3-pin/ 4-pin
- PWM function for 4pin PWM fans,spin at the same speed using PWM controller
- full speed run for 3pin fans
- 40CM PWM cable include
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
It is designed for enthusiasts with need for controlling numerous system fans Capable of expanding one motherboard PWM fan header to support up to five fans.
Support PWM function, Speed control, satisfy your control needs.
Compatible with 2-pin / 3-pin / 4-pin Fans

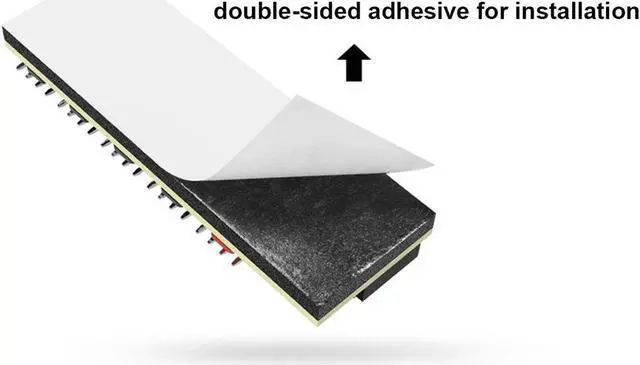

Support Cable Management Comes with Self-Stick for easy installation and options to hide the PCB itself.

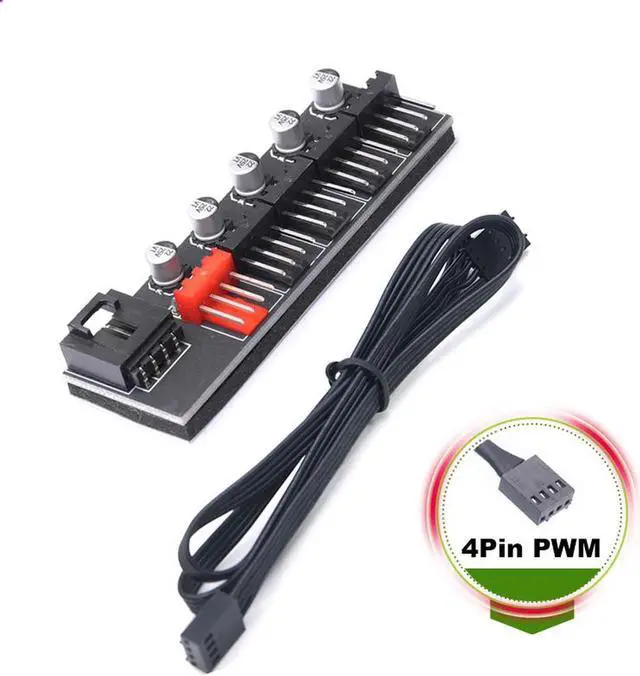

Include a 1.3 feet PWM 4pin fan power extension cable w/ latch locking
[Special Note: ]
This product is a hub, not a speed controller
2-pin / 3-pin fan can be plugged in to use, but can not achieve PWM control speed

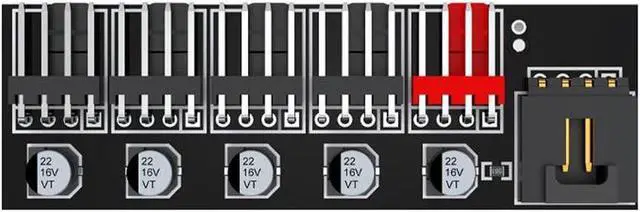

Please make sure the RED color connector is a priority number one connecting. Since only one RPM signal can be read by motherboard, only ' CPU Fan' channel of the PWM splitter carries an RPM signal.
SPECIFICATION
Type: 5 Ports PWM Fan Hub
Input: Motherboard 4Pin Fan Header
Output: 5 Ports 4Pin Fan Header
Cable Length: 1.3 Feet
Application: Compatible with 2PIN /3 PIN / 4PIN fans
It is designed for enthusiasts with need for controlling numerous system fans Capable of expanding one motherboard PWM fan header to support up to five fans.
Support PWM function, Speed control, satisfy your control needs.
Compatible with 2-pin / 3-pin / 4-pin Fans
Support Cable Management Comes with Self-Stick for easy installation and options to hide the PCB itself.
Include a 1.3 feet PWM 4pin fan power extension cable w/ latch locking
[Special Note: ]
This product is a hub, not a speed controller
2-pin / 3-pin fan can be plugged in to use, but can not achieve PWM control speed
Please make sure the RED color connector is a priority number one connecting. Since only one RPM signal can be read by motherboard, only ' CPU Fan' channel of the PWM splitter carries an RPM signal.
SPECIFICATION
Type: 5 Ports PWM Fan Hub
Input: Motherboard 4Pin Fan Header
Output: 5 Ports 4Pin Fan Header
Cable Length: 1.3 Feet
Application: Compatible with 2PIN /3 PIN / 4PIN fans
