Vszerda 12V ATX Power Supply,90W DC-ATX Power Supply DC Input 20 Pin Power Module for Mini & HTPC Computer POS Machine

Specifications:

Condition: 100% Brand New

Size: Approx. 35 * 47 * 12 mm / 1.3 * 1.8 * 0.4 in (Wire NOT INCLUDED)

Input Voltage Range: 12VDC plus or minus 5%

Output Power: 90W

Work Efficiency: 90% or greater

Output Characteristics:

Output Voltage

Minimum(V)

Maximum(V)

Ripple wave(mV)

Standby Current Unloading Maximum load +3.30V +3.14 +3.47 50MAX 0 0 4.0 +5.00VSB +4.75 +5.25 50MAX 0.1 0 2.0 +5.00V +4.75 +5.25 50MAX 0 0 4.0 +12.00V +11.40 +12.60 120MAX 0 0 4.0 -12.00V -10.80 -12.60 120MAX 0 0 0.05 Working Temperature/Humidity: 0°C to 55°C / 45% - 75%

Storage Temperature/Humidity - 40°C to +70°C / 10% - 90

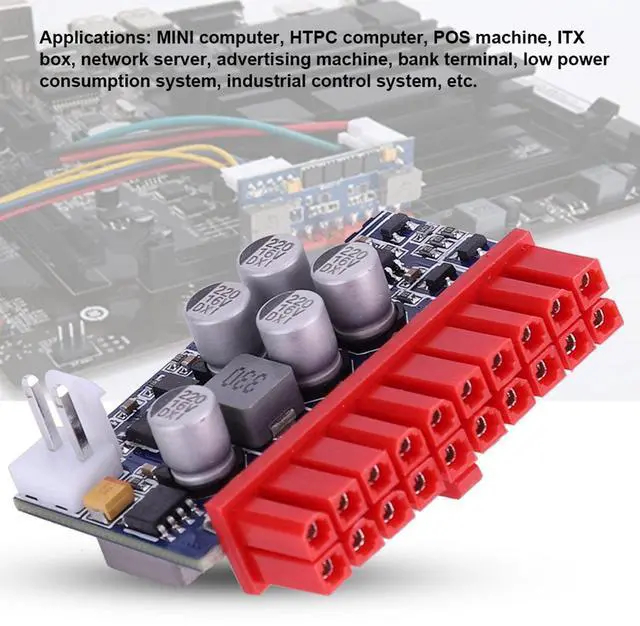

Applications: MINI computer, HTPC computer, POS machine, ITX box, network server, advertising machine, bank terminal, low power consumption system, industrial control system, etc.

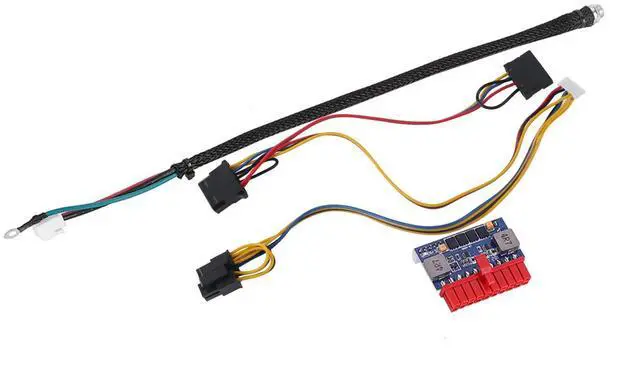

Package Included:

1 x Power Module

Notes:

1.Please allow 1-3 cm error due to manual measurement. Thanks for your understanding.

2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
