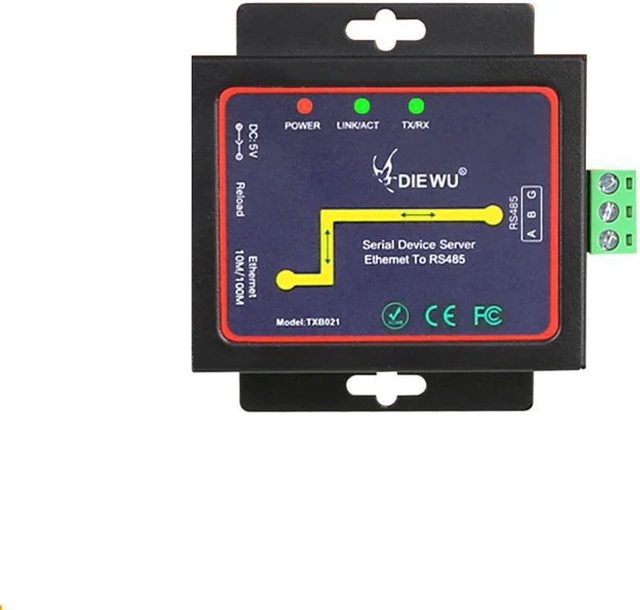

Industrial Serial Device Server RS485 to Ethernet TCP/IP LAN Converter 485 To RJ45 Adapter
- Industrial Serial Device Server RS485 to Ethernet TCP/IP LAN Converter 485 To RJ45 Adapter
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Type:Connectors
Model Number:TXB021
Products Status:STOCK
Product specification:
Model number:TXB021
Chipset:IP210
Port number:1 port 10/100M Auto MDI-MDIX RJ451port RS485
Standard:IEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3az
Network media:10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
Data rate:10/100M
Forwarding rate:10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator:Link/Act, Power, TX/RX
Baud rate:110bps~256000bps
Operation modes:TCP Server, TCP Client, UDP
Dimension:78*72*23mm
Power Input:DC5V
Power Consumption:Max1.5W
Environment:
Operating Temperature: -10 -55
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40-85
Relative Humidity: 5%-90%(non-condensing)
