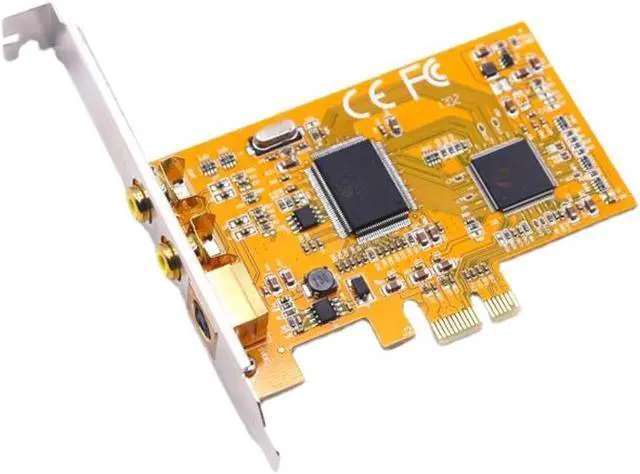

PCIE 878A Capture Card PCI-E 878 Sonography Medical Image 2 PORTS AV Svhs Terminal Connector Video Capture card SDK2000 1394

Origin:CN(Origin)
Type:Cable Adapter
Certification:NONE
Package:Yes
Products Status:STOCK
Model Number:PCIE 878A capture card

Features:
1. Adopt standard PCI-E gold-plated interface, stable performance, greatly reduce the signal loss, to meet the needs of users in the motherboard;
2. Dynamic capture images in the way of static image storage, provide BMP, JPG, PCX, GIF, TIF, TGA and other storage formats.
3. It can be widely used in the system development of banking, medical treatment, community, transportation, agricultural monitoring and remote communication, etc.
Function:
Display resolution up to 768* 576,720 * 576,640x480, 24RGB true color
The size of the image window can be adjusted ly to display in full screen
Provide dynamic AVI image capture, capture disk image size optional
It can capture images continuously and dynamically and save them automatically in the form of static images. It provides functions such as photo browsing and electronic album
Compliance with ITU H.324 video conferencing standard, compatible with popular video conferencing software (such as: Netmeeting, VDophone, i-Phone, CU-Seeme, etc.), clear picture quality, stable performance
Specifications:
Conexant 878A chip is used
The display screen is smooth and uninterrupted, up to 30 (NTSC) frames per second, 25 (PAL) frames
Support NTSC and PAL.SECAM system
Display resolution up to 640x480 (PAL)
Support Windows 98/2000/XP/ Win7 32 and other operating systems.
Win7 64-bit is not supported
Package List:
Capture Card*1
Disk*1
