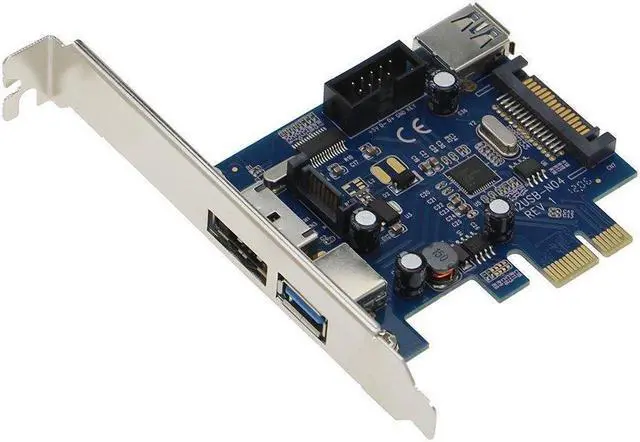

External USB3.0 Port Power eSATA Port Internal USB 3.0 9pin USB Header PCIe Card With 15pin SATA Power Socket (NEC / Renesas uP

Type:Add On Cards
Interface Type:PCI Express
Model Number:USB+PeSATA TO PCIE
Package:No

Features and specifications :
2 x USB 3.0 Port support transfer speed up to 5Gbps ( 1 external + 1 internal )
1 x PeSATA / USB 2.0 Combo Port ( External )
Low Profile bracket to fit HTPC or slim PC case
USB 3.0 :
Support Windows 8 UASP
No driver needed for Windows 8 ( do not install driver in Windows 8 )
Fully compliant with PCI Express Base Specification Revision 2.0
Single-lane (x1) PCI Express Throughput Rates Up to 4.8Gbps
Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
Fully compatible with USB2.0 , USB 1.1
Transfer Rate: 5Gbps 480Mbps, 12Mbps
NEC uPD720202 Chipset
Built-in SATA Power Connector
PeSATA :
This 2 ports can be connected as eSATA, PeSATA, or USB 2.0.
Combine with our Power over ESATA cable ( not included in package ) , both 2.5" and 3.5 HDD can be supported without power supply from other sources.
Specifications :
Connect direct to SATA Hdd
Data transfer up to 6Gbps ( SATA III, depends on your mother board SATA port specification), and 480Mbps (USB 2.0 )
Supports WinXP, Win Vista and windows 7/8
Package contents :
1 x PCIE USB 3.0 / PeSATA adapter
1 x Driver CD
1 x Low Profile bracket
