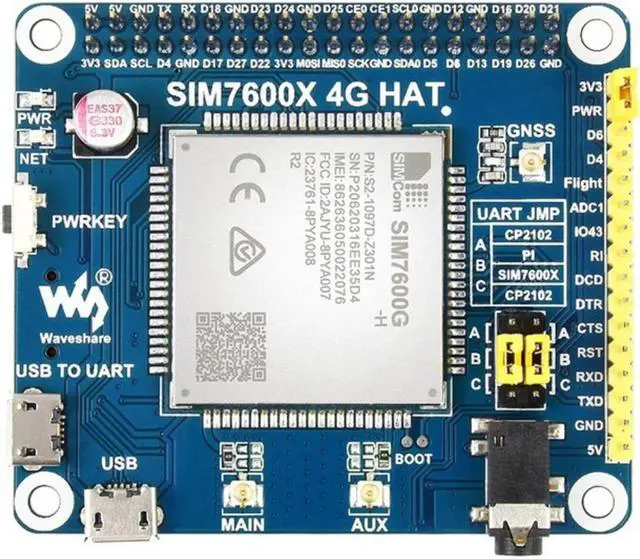

Waveshare SIM7600G-H 4G Expansion Module For Raspberry Pi GNSS GPS LBS Positioning Global Communication Support 3G/2G

Certification:NONE
Origin:CN(Origin)

Working frequency:LTE Cat-4: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66,LTE-TDD: B34/B38/B39 /B40/B41; 3G: UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19; 2G: GSM/GPRS/EDGE: 850/900/1800/1900 MHZ
GNSS: GPS/Beidou/GLONASS; GNSS parameters: Receiving: 16 channels C/A Code; ensitivity: -159dBm(GPS)/-158dBm(GLONASS)/TBD(Beidou)
First positioning time (open area): Cold start: -148dBm; Cold start: less than 35s; Hot start: less than 15
SMS and audio parameters: Short Message (SMS): Support types: MT, MO, CB, Text, PDU; SMS storage device: USIM card and ME (default)
Audio features: support echo cancellation function, support noise suppression function; Supply voltage: 5V; Working temperature: 30~80; Storage temperature: 45~90
1. Based on Raspberry P40 PIN GPIO interface design,suitable for Raspberry Pi series motherboards,Jetson nand
2. Support dial-up Internet,telephone,SMS,TCP,UDP,DTMF,HTTP,FTP and other functions
3. Support GPS, Beidou,Glonass,LBS base station positioning
4. Onboard USB interface,which can be used to test AT commands,obtain GPS positioning information, etc.
5. Onboard CP2102 USB to UART chip,convenient for serial port debugging
6. Lead out the module UART and other control interfaces for easy access to the main control board such as for Arduino/STM32
7. Onboard SIM card slot, support 1.8V and 3V SIM
8. The onboard TF card slot can be used to store files, text messages and other data
9. Onboard audio interface and audio decoder chip, which can be used for voice operations such as making calls
10. Onboard 2 LED indicators, easy to check the running status of the module
11 .Onboard level conversion circuit, can switch 3.3V/5V working level through jumper cap
12. Support baud rate range: 300bps~4Mbps (default is 115200bps)
13. Support automatic identification of baud rate (9600bps~115200bps)
14. Support AT command control (based on 3GPP TS 27.007, 27.005 and 25TER command set)
15. Support SM application kit: SAT level 3, GSM 11.14 Release 99, USAT
colour: blue
Material: PCB+metal
Size: 56.21mm x 65.15mm
Package Contents:
1 x 4G Expansion Module
Only the above package content, other products are not included.
