13.56mhz RFID wireless RF USB drive card module with USB interface NFC card reader IC card reader

Model Number:NFC
Compatibility:Others
State of Assembly:Ready-to-Go

Features:

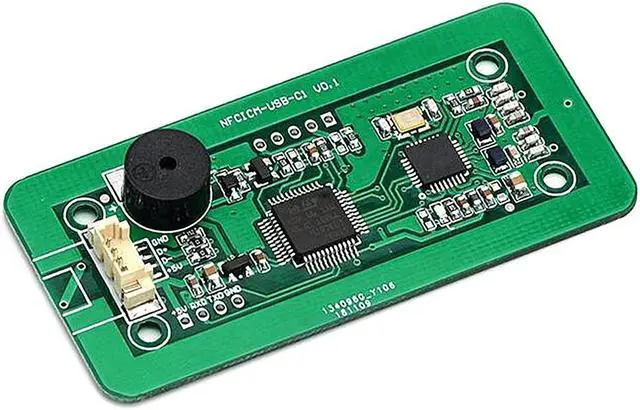

The NFCICM-USB-C1 read/write module uses 13.56MHZ non-contact RF technology and embeds a highly integrated read/write chip as a radio base station. The series of reading and writing modules support MF1: S50, S70, FM11RF08; MFO: ULTRALIGHT, ULTRALIGHT
  C, NTAG203, NTAG213; CPU: FM1208 and its compatible cards. NFCICM-USB-C1 module software and hardware extension function is very strong, and can be customized according to user requirements.
       Basic Features:
Adopt high integrated read/write chip as radio base station
Antenna integrated design
USB drive, no need to install driver, read-only card number, imitation USB keyboard output ten decimal character card number
Support serial port TTL 2.0MM-4P and USB drive 1.25MM-4P interface
With buzzer, LED indicator
Super small size, only 62MM X 30MM
Reading card distance is up to 5CM (standard card test)
Support ISO14443 TYPE A standard / MIFARE standard MF1: S50, S70, FM11RF08; MFO: UL
TRALIGHT, ULTRALIGHT C, NTAG203, NTAG213; CPU: FM1208 and its compatible cards
