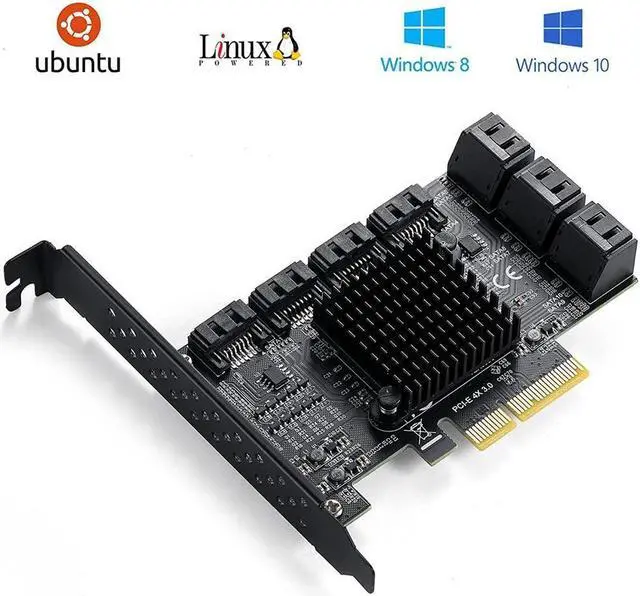

Amify PCIE 4X SATA Card 10 Ports,6 Gbps SATA 3.0 Controller PCIe Expansion Card ,Non-Raid,Support 10 SATA 3.0 Devices,with Low Profile Bracket and 10 SSystem Disk, Support 8 SATA 3.0 Devices(SA3014)

Product name: 10-port SATA 3.0 expansion card

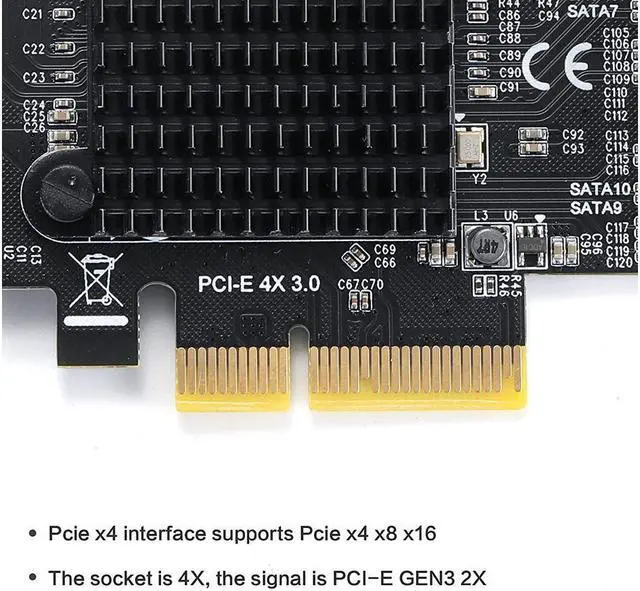

Product interface: PCI-E4X (chip signal is 2X)

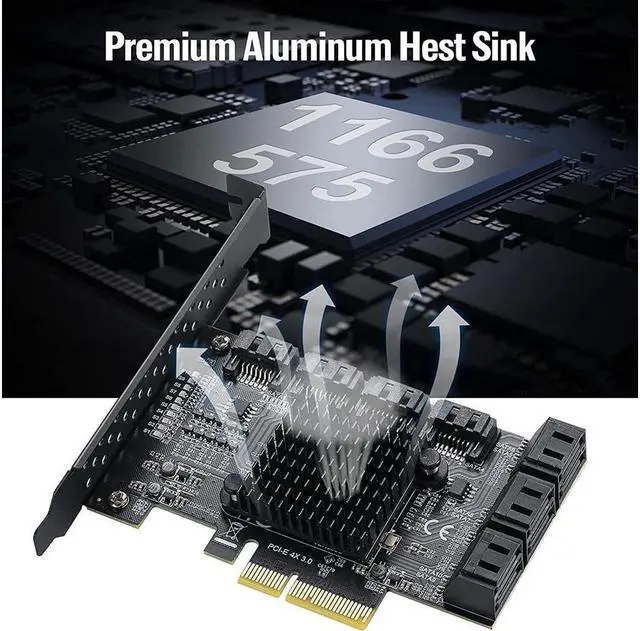

Product chip: ASM1166
Support system: Windows 8 / Windows10 / Ubuntu /Linux.
(Synology can only recognize 4 hard drives; WIN7 users are not recommended to buy)

Specification:
-Comply with Serial ATA 3.0 specification, backward compatible with SATA 2.0 / SATA 1.0
-Comply with PCI-Express v 3.0 specification and backward compatible with PCI-Express v 2.0 / 1.0.

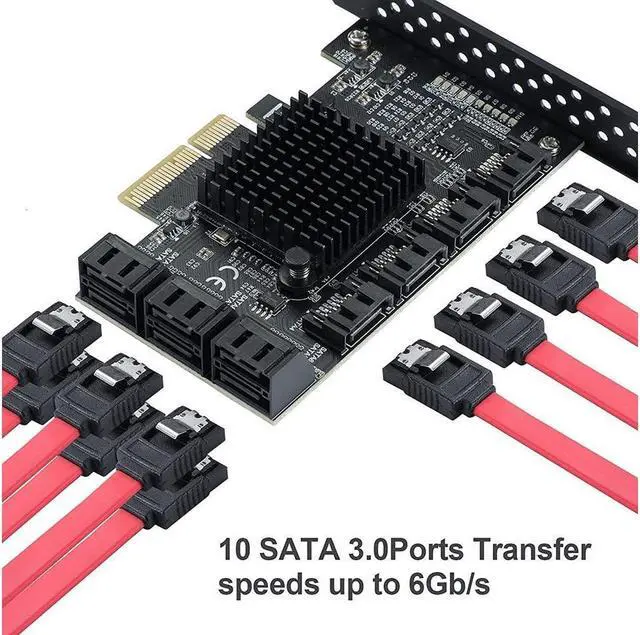

-Support 6.0G b/s, 3.0 Gbit/s and 1.5 Gbit/s
-Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i.
-Support Native Command Queuing (NCQ)
-Support FIS based on port multiplier switch or command switch.
-Support hot swap.
-Compatible with SATA6G, 3G and 1.5G hard drives

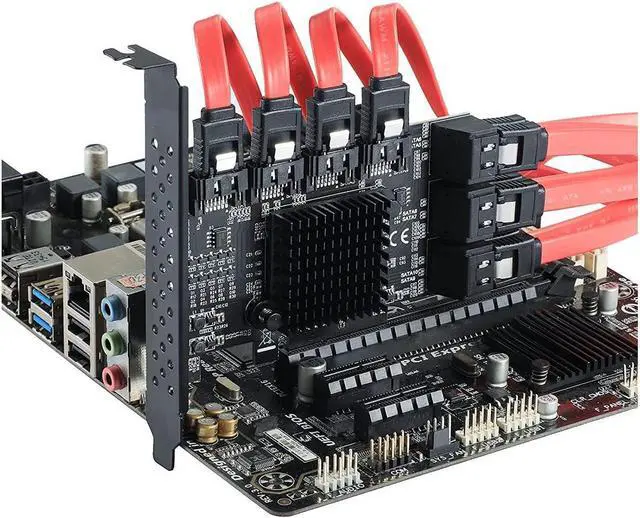

-Motherboard applicable slot PCI-Ex4 and above Note: PCI, PCI-E x1 cannot be used

Note: RAID is not supported. The RAID in INTEL only applies to raw SATA. It is an expansion card that cannot support third-party chips.

Speed description information:

1. Use SATA 3.0 data cable to achieve the best results.
(We recommend using this SATA 3.0 card in the PCIE 3.0 slot to get the fastest speed. )
2. PCI-E requires a slot above V 2.0. For V 1.0, the speed will not exceed 250M.

3.
Motherboard BOIS setting: SATA mode should be changed to AHCI.
Although some motherboards are PCIE 2.0 version, BOIS does not enable gen2 high-speed mode by default and needs to be turned on manually.
The fastest speed of PCI-E 2.0 is 380-450 m/s.
Different computer configurations and SATA SSDs have different speeds.

If the detection is incomplete or unstable, please contact us to send the driver.

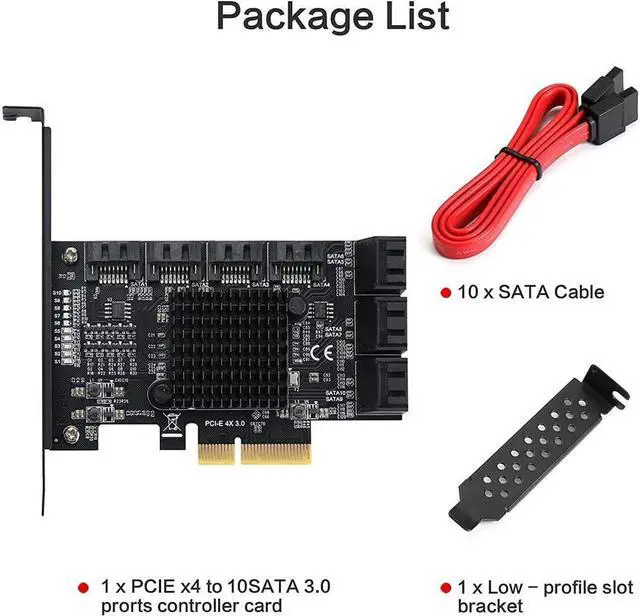

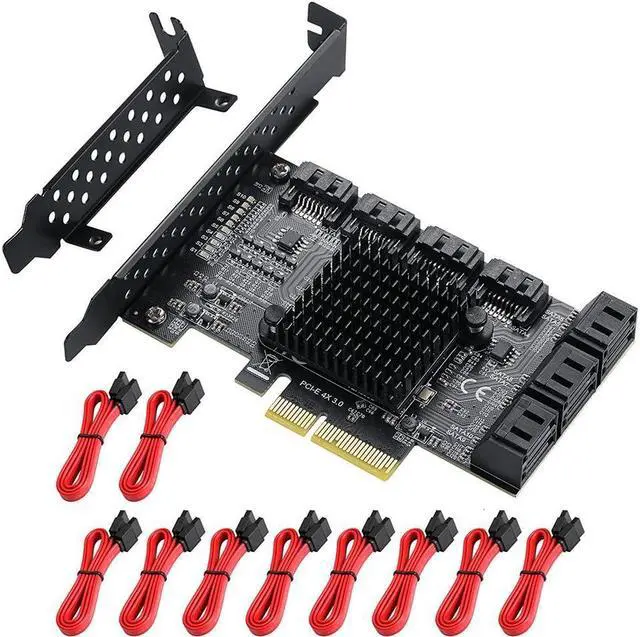

Packing List:
PCIe 4X to 10 Ports SATA 3.0 card *1
Half-height bracket baffle *1
SATA cable *10
