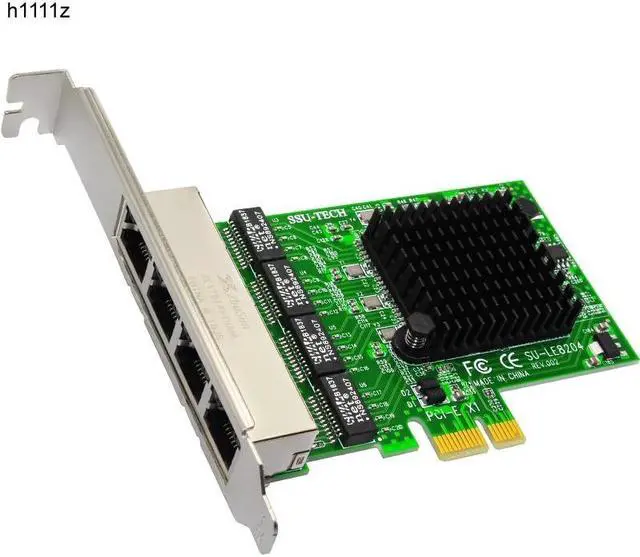

Network Cards Internet Ethernet Adapter/Card LAN PCI-E Network Card/Adapter Realtek RJ-45 PCIE X1 Enternet for Computer

Network Cards Internet Ethernet Adapter/Card LAN PCI-E Network Card/Adapter Realtek RJ-45 PCIE X1 Enternet for Computer
About Description:
Specification
Product Brand:
Main Chipset: Realtek RTL8111G*4
Bus Type: PCIE X1
Network Interface: RJ45*4
Rate: 10/100/1000Mbps
Product Size: 120mm*101mm* 68.5 mm
Product weight: 97g
IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T
Applicable network type: Gigabit Ethernet
LEDs: 8 (1/port, link and speed) solid and blinking
Full-height and low-profile, screw-on brackets included with each adapter

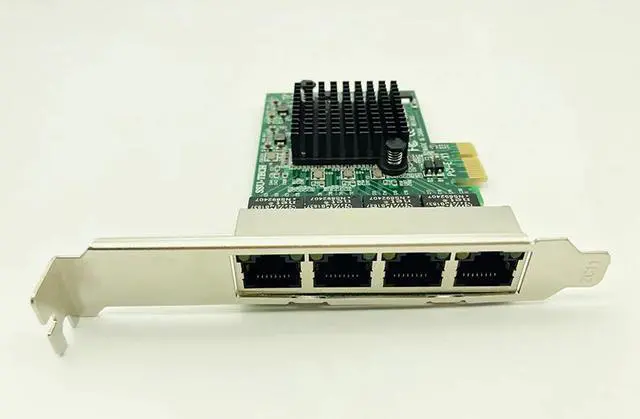

4-Port RJ45 Interface
Support Microsoft NDIS5, NDIS6 checksum and offload, (IPv4, IPv6, TCP, UDP) split tasks, offload (large transfer V1 and V2), support EMAC-393 ECMA ProxZzzy host sleep standard, support full duplex flow control (IEEE 802.3X )
High compatibility, Compatible with IEEE 802.3, 803. ab, 802.3 u, 802.3 x, 802.1, VLAN technology
10MB/100MB/1000MB network adaptive
Automatic cross detection and correction support.
Feature:

1.
Independent Bridge Controller: No need to provide redundant interrupt resources on the motherboard, no need to consider insufficient resources.

2.
Independent resource cache: By adding a resource cache chip, the compatibility is greatly improved.

3.
Independent power management: Independent power management system, the stability is greatly improved.

4.
Independent network control: Each network port corresponds to one controller, and the four network ports work completely independently.

5. Plug and play, no need to install the driver, convenient and fast.

6. Application areas for home / server / soft routing / flow control / firewall / virtual machine and other application areas.

7. Application support for Windows XP/2003/2008/2012/WIN7/WIN8/WIN10, ROS, Hi-Spider, iKuai, AYOS, Linux, FreeBSD, MAC OS.
You'll receive:

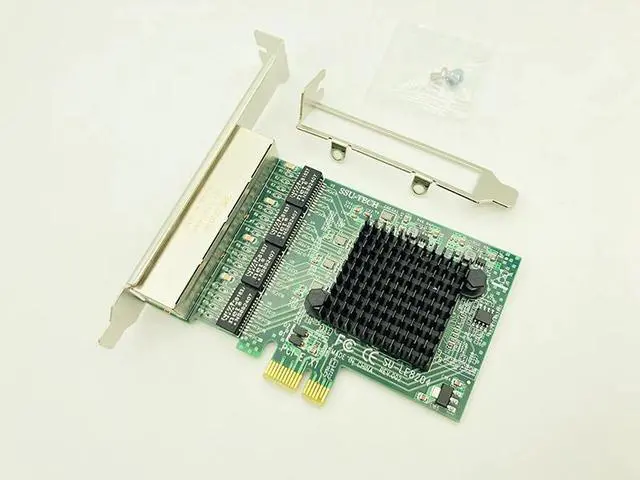

1 x 4 Ports RJ-45 PCI-E Network Card
1 x Low Profile Bracket
1 x CD Driver
2 x Screws
Please check pictures for more details.
