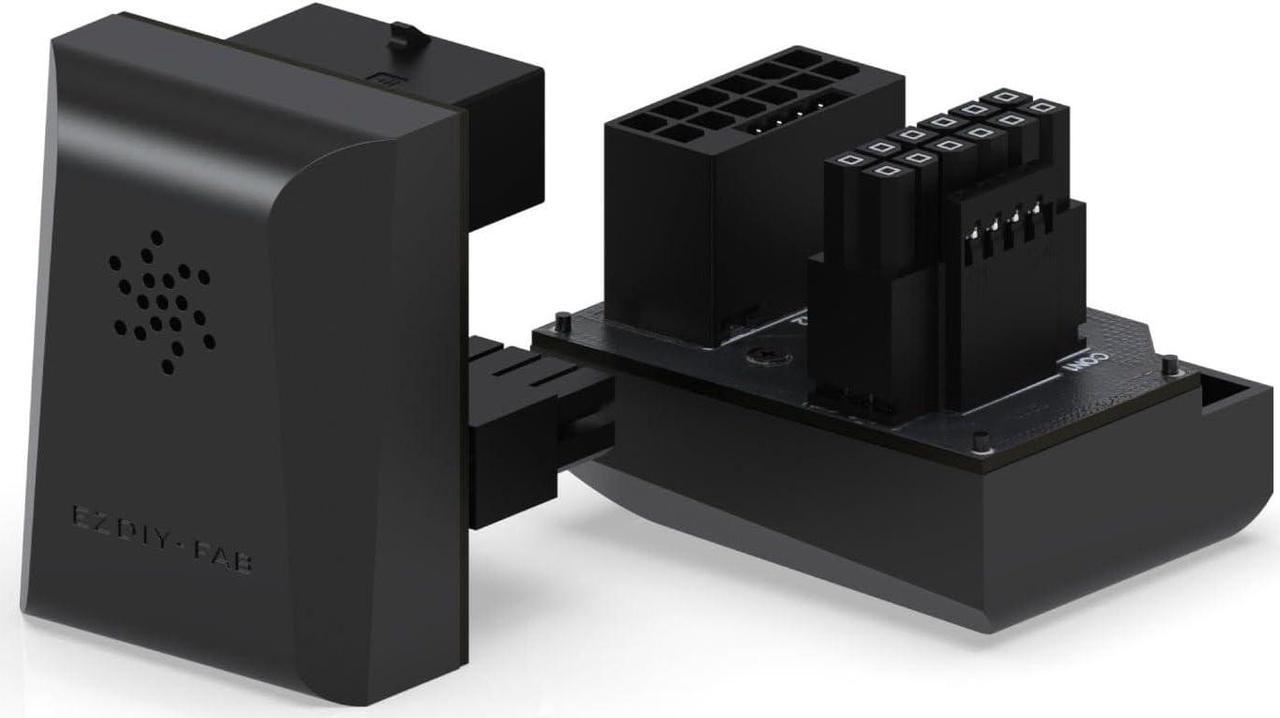

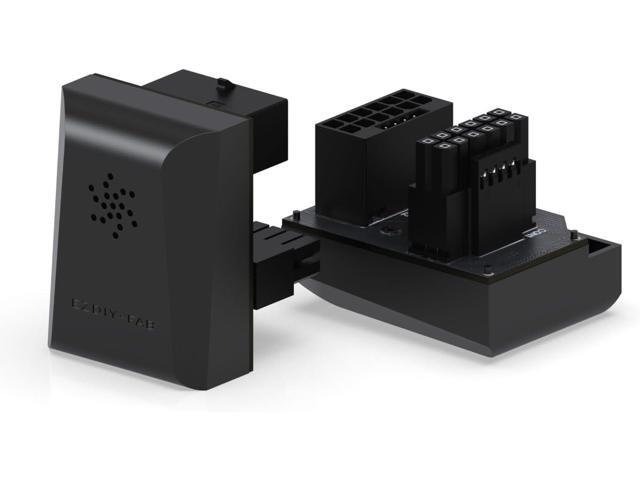

EZDIY-FAB PCIe 5.0 12VHPWR GPU Power Bridge, 12+4 Pin Angle Connector Power Adapter, for RTX40' Series GPUs, Compatible with RTX4090, 4080, 4070ti - Black 180° STD

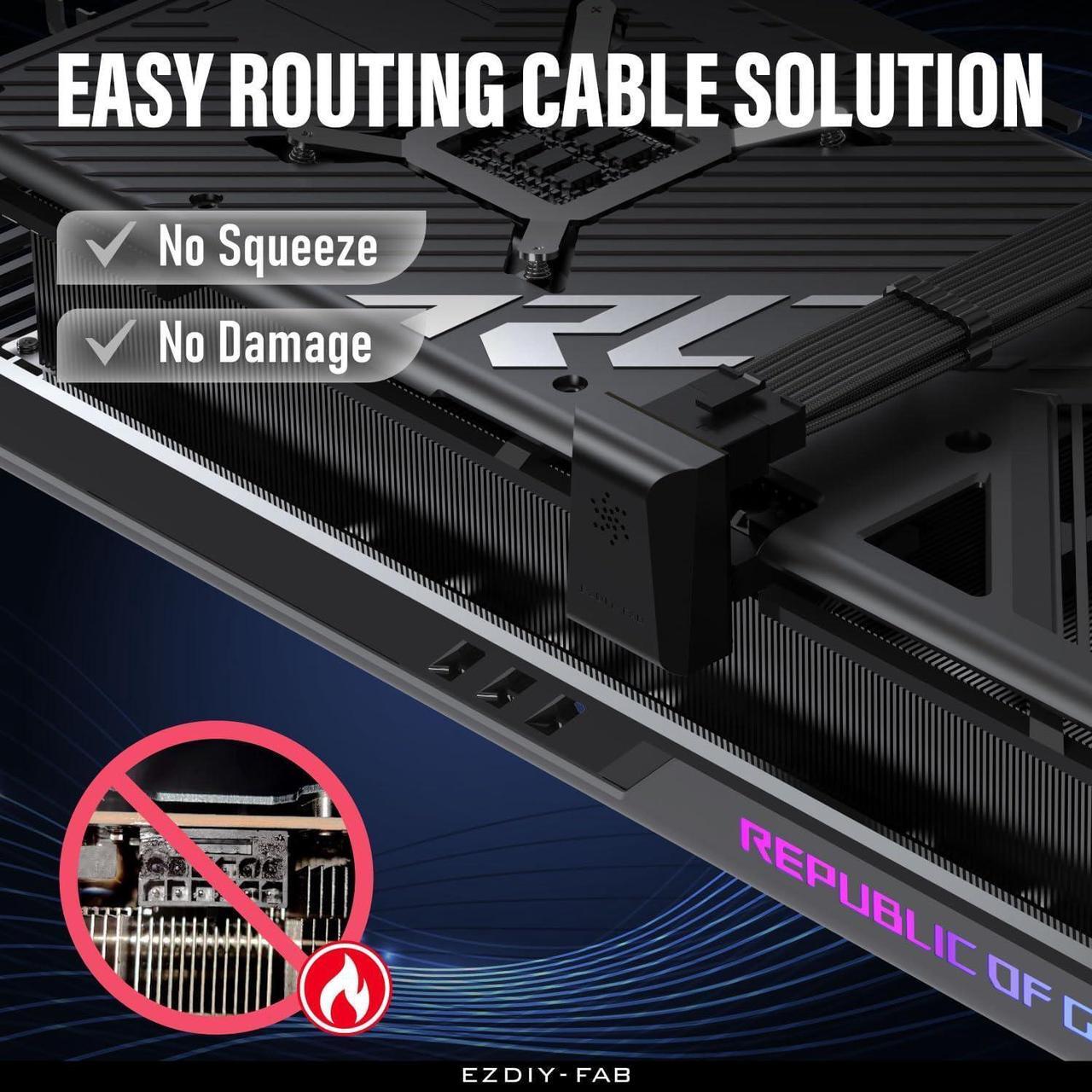

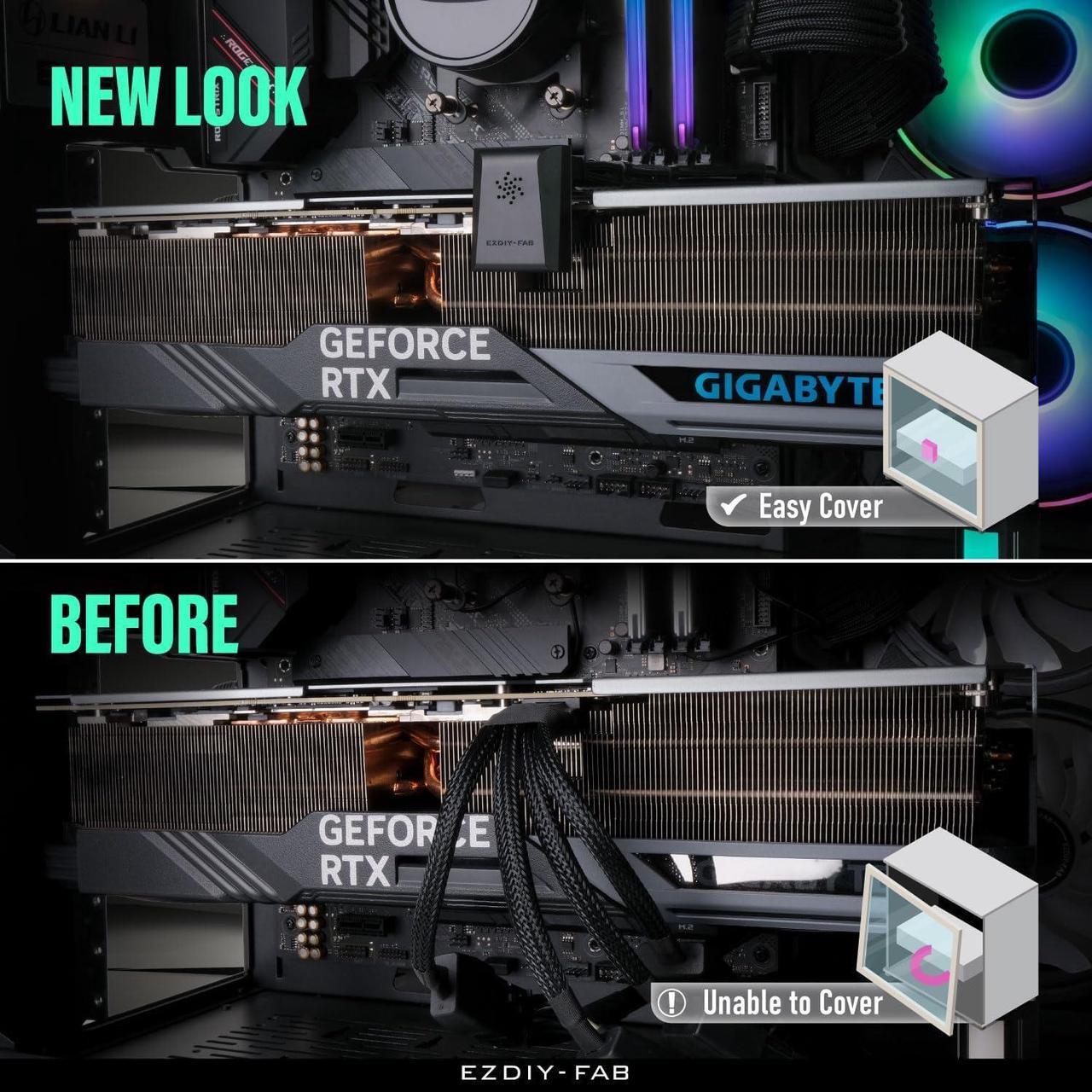

- The perfect solution for users experiencing trouble with their RTX40' series gpus power cables protruding too far from their PC case, preventing the side panel from closing properly and removing stress on your components.

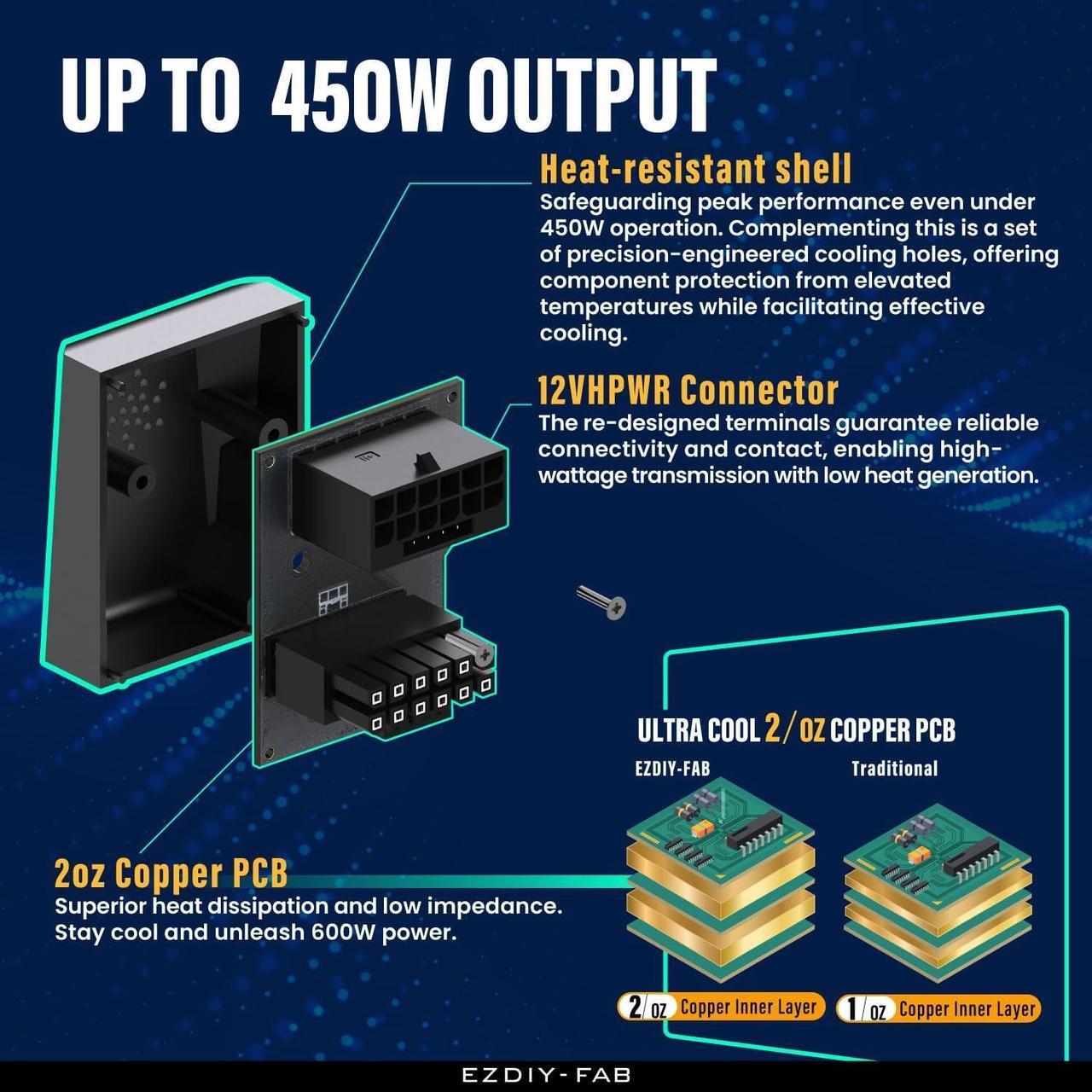

- The power bridge feature a strengthened PCB design that enables an angled connection without any wire bending. This ensures full contact with all cable terminals and eliminates the risk of thermal issues that can occur due to tight bending radii.
- Kindly be aware that our angled adapter has a maximum power output capacity of 450W. Going beyond this threshold could lead to overheating and potential harm to your equipment. To guarantee optimal performance and minimize the risk of problems, it is essential to confirm that your PC case provides adequate ventilation.
+
+
Overview
Specs
Reviews

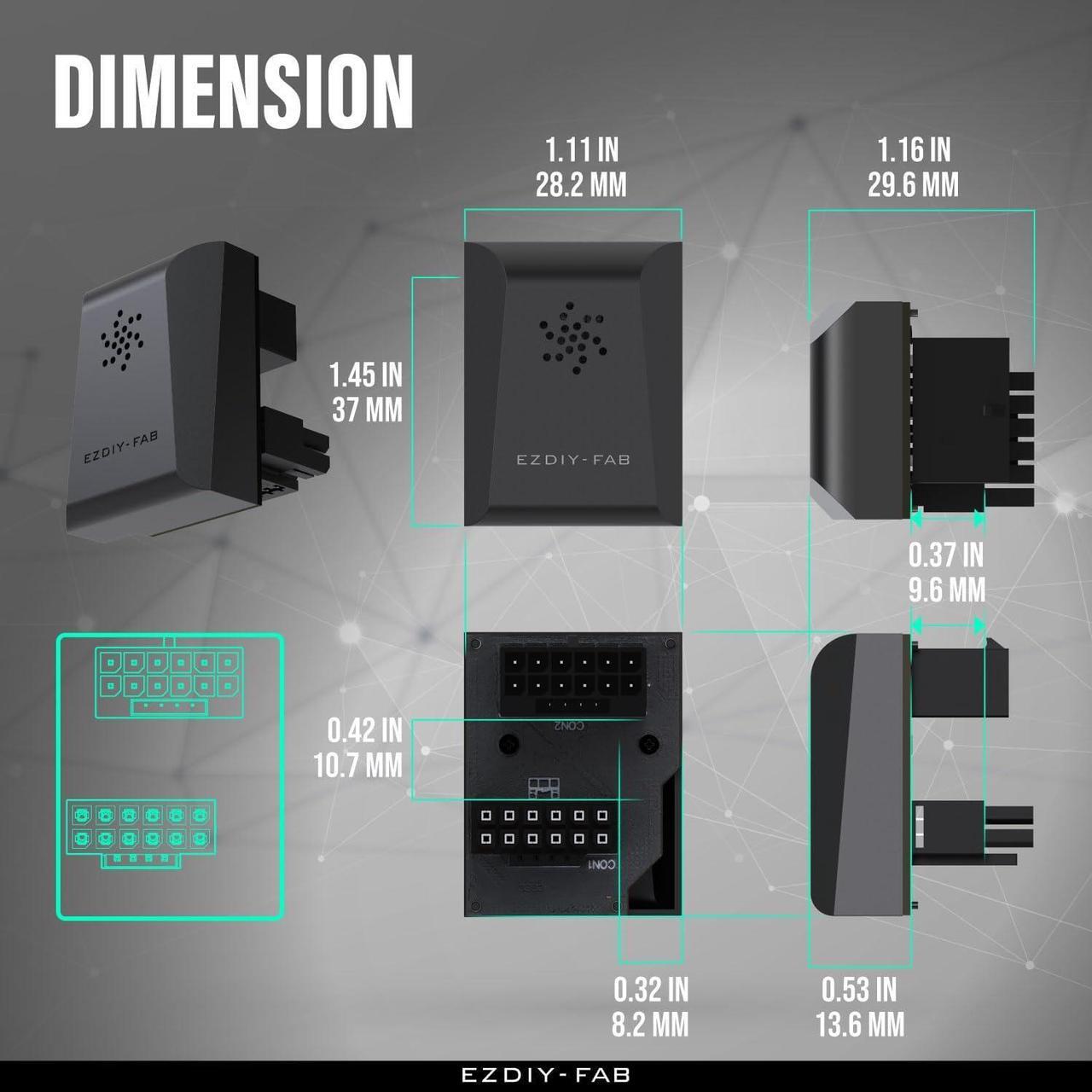

The Angled Adapter has a low-profile design, extending just 23mm, which provides increased room and clearance between your graphics card and the side panel. This feature is ideal for compact chassis and simplifies the installation of large cards. Be sure to verify that there is at least a 23mm gap between the side panel and the GPU.

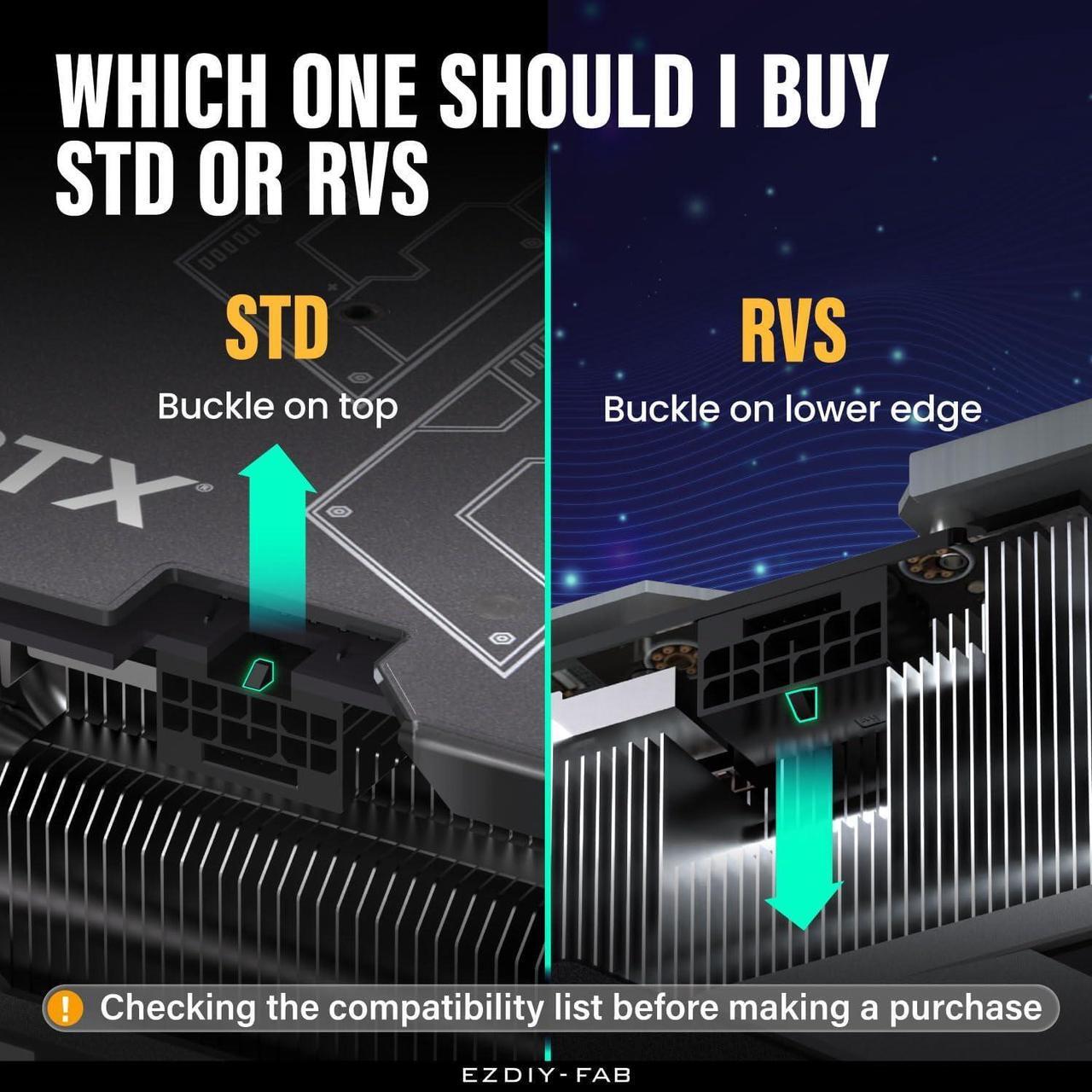

We provide two distinct variations of our angled adapter: the 90-degree angle and the 180-degree angle options. The 180-degree angle adapter is well-suited for setups with constrained space or for individuals who favor a more condensed layout. Conversely, the 90-degree angle adapter is well-suited for more spacious builds and provides enhanced flexibility in cable routing. Additionally, please review the compatible list before making your purchase, as there are two connector direction options: S
Important Notes:
This product cannot be used with incompatible Graphics Card, as it may result in system damage.
If the product you are using is not listed in the compatibility list below, please contact buyer support services for assistance.

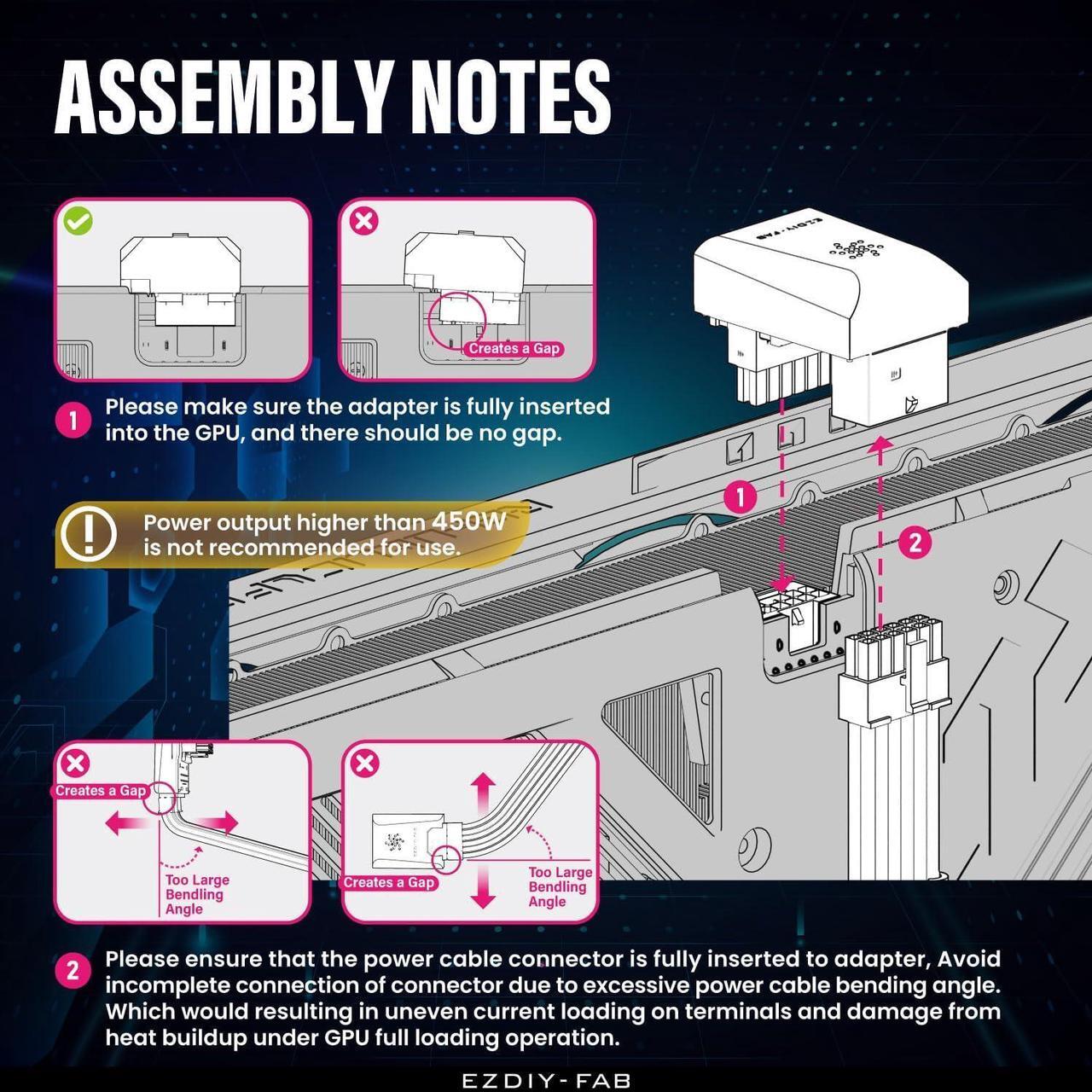

Before operating, ensure that this product is fully plugged into the GPU connector to ensure proper functionality and safety.
Please note that our angle adapter supports a maximum power output of 450W. Exceeding this limit may cause overheating and damage to your device. To ensure optimal performance and prevent any potential issues, please make sure that your PC case has proper ventilation.
90 Degrees Compatibility
ASUS-STD TUF 4090/ TUF 4080/ TUF 4070Ti/ TUF 3090Ti/ STRIX 4090/ STRIX 4080/ STRIX 4070Ti
Gigabyte-RVS 4090 GAMING OC/ 4080 GAMING OC/ AORUS 4090 XTREME WATERFORCE/ 4090 AERO/ 4080 AERO
NVIDIA-RVS 4090 FE/4080 FE/ 4070Ti FE/ 4070 FE/ 3090Ti FE
ZOTAC-RVS 4070Ti/ 4080/ 4090
MSI-RVS 4090 Gaming X Trio
INNO3D-RVS 4090
PNY-RVS 4090 OC
180 Degrees Compatibility
ASUS-STD TUF 4090/ TUF 4080/ TUF 4070Ti/ TUF 3090Ti/ STRIX 4090/ STRIX 4080/ STRIX 4070Ti
Gigabyte-RVS 4090 WINDFORCE/ 4090 GAMING OC/ 4080 GAMING OC/ AORUS 4090 MASTER/ AORUS 4080 MASTER/ AORUS 4090 XTREME WATERFORCE/ 4090 AERO/ 4080 AERO/ 4070Ti Eagle OC
NVIDIA-RVS 4090 FE/4080 FE/ 4070Ti FE/ 4070 FE/ 3090Ti FE
ZOTAC-RVS 4070Ti/ 4080/ 4090
INNO3D-RVS 4090
We provide two distinct variations of our angled adapter: the 90-degree angle and the 180-degree angle options. The 180-degree angle adapter is well-suited for setups with constrained space or for individuals who favor a more condensed layout. Conversely, the 90-degree angle adapter is well-suited for more spacious builds and provides enhanced flexibility in cable routing. Additionally, please review the compatible list before making your purchase, as there are two connector direction options: S
Important Notes:
This product cannot be used with incompatible Graphics Card, as it may result in system damage.
If the product you are using is not listed in the compatibility list below, please contact buyer support services for assistance.
Before operating, ensure that this product is fully plugged into the GPU connector to ensure proper functionality and safety.
Please note that our angle adapter supports a maximum power output of 450W. Exceeding this limit may cause overheating and damage to your device. To ensure optimal performance and prevent any potential issues, please make sure that your PC case has proper ventilation.
90 Degrees Compatibility
ASUS-STD TUF 4090/ TUF 4080/ TUF 4070Ti/ TUF 3090Ti/ STRIX 4090/ STRIX 4080/ STRIX 4070Ti
Gigabyte-RVS 4090 GAMING OC/ 4080 GAMING OC/ AORUS 4090 XTREME WATERFORCE/ 4090 AERO/ 4080 AERO
NVIDIA-RVS 4090 FE/4080 FE/ 4070Ti FE/ 4070 FE/ 3090Ti FE
ZOTAC-RVS 4070Ti/ 4080/ 4090
MSI-RVS 4090 Gaming X Trio
INNO3D-RVS 4090
PNY-RVS 4090 OC
180 Degrees Compatibility
ASUS-STD TUF 4090/ TUF 4080/ TUF 4070Ti/ TUF 3090Ti/ STRIX 4090/ STRIX 4080/ STRIX 4070Ti
Gigabyte-RVS 4090 WINDFORCE/ 4090 GAMING OC/ 4080 GAMING OC/ AORUS 4090 MASTER/ AORUS 4080 MASTER/ AORUS 4090 XTREME WATERFORCE/ 4090 AERO/ 4080 AERO/ 4070Ti Eagle OC
NVIDIA-RVS 4090 FE/4080 FE/ 4070Ti FE/ 4070 FE/ 3090Ti FE
ZOTAC-RVS 4070Ti/ 4080/ 4090
INNO3D-RVS 4090
