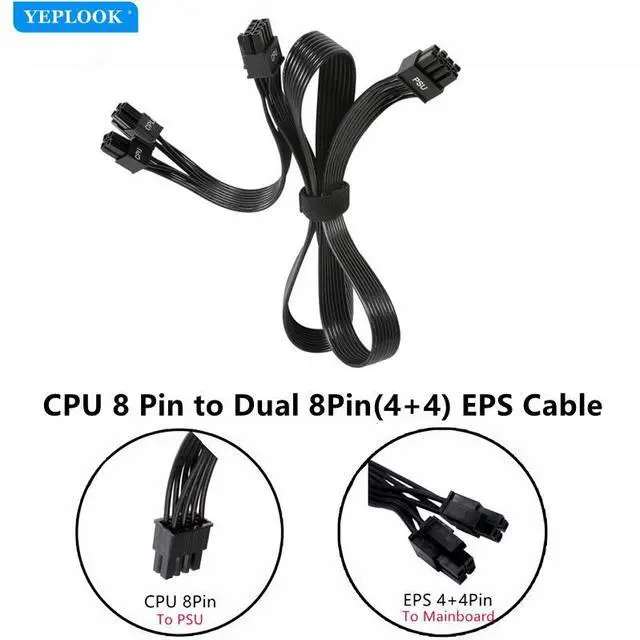

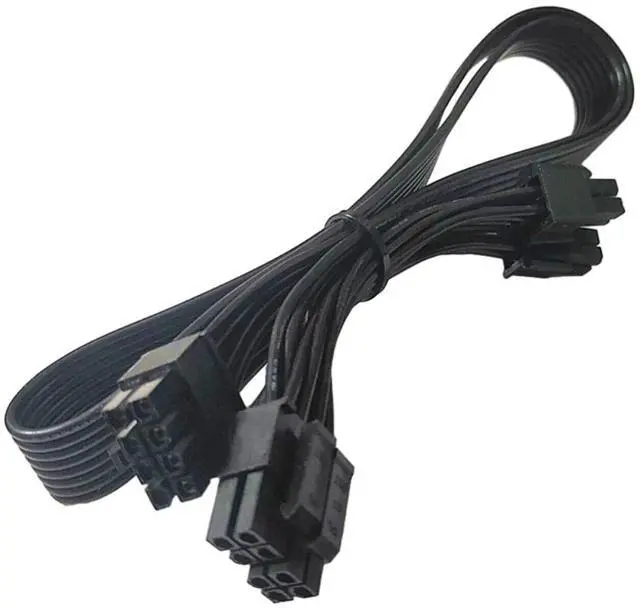

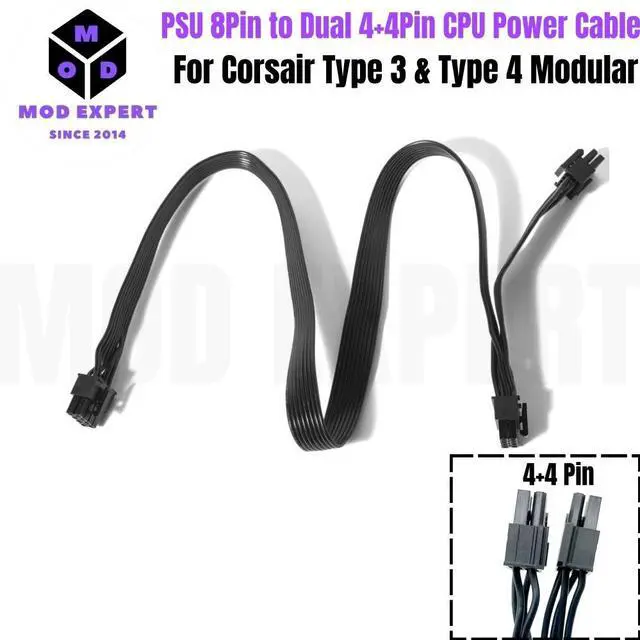

YEPLOOK PSU 8Pin to Dual 8Pin 4+4Pin EPS/ATX12V CPU Power Cable for Corsair CS850M, CS750M, CS650M, CS550M, CS450M GOLD Modular Power, 18AWG 60+20CM

*Mod Expert Store Pre-Purchase Notes:

1. All pictures are for reference only, please contact us for real photo if need.

2. PSU 8Pin and EPS 4+4Pin cannot be used interchangeably. Not work with GPU graphics card.

3. Our technial team will check and test every cable before shipment. No worry about the cable quality.

Compatibility about this Dual 8Pin 4+4Pin CPU Power cable:

The PSU 8Pin to Dual 4+4Pin CPU power cable is compatible with Corsair Type 3 CS-M Series Modular Powers.

Such as CS450M, CS550M, CS650M, CS750M, CS850M Type 3 Modular Power

Not for Corsair AX1200 Gold.

Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.

Not for Corsair Type 5 modular powers.

Not for modular powers of other brands and models.

Different modular powers use unique power cables. If your modular power is not listed, please check compatibility with us to ensure proper installation. Mix use cables may cause damage.

Description

Cable Length: About 60+20CM

Interface: PSU 8Pin to CPU 2x 8Pin 4+4Pin

Cable Gauge: 18AWG standard tin-coating copper wire.

Package List: 1x Dual CPU Power Cable for Corsair TX-M Type 3 series modular powers.

Advantages

1. Suitable for chassis wiring.

2. High current terminal & up to 10A

3. Easy to bend with good cable management.

4. FLEXIBLE & DURABLE to prevent corrosion and provide a long lifespan.

5. The 4Pin CPU cable can supply up to 155 watts & the 8-pin CPU cable can supply up to 235 watts.

How to Connect?

PSU 8Pin plug into power supply side.

(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin.)

CPU 8Pin (4+4Pin) plug into motherboard side.

(NOTE: EPS 8Pin(4+4Pin) could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin.)

This CPU power cable use an 8-pin EPS12v. CPU cable that can be split into two 4-pin connectors.

If you want to connect our PSU into a 4-pin EPS motherboard port, simply pull the two halves of the connector apart and connect one half into the motherboard port.
