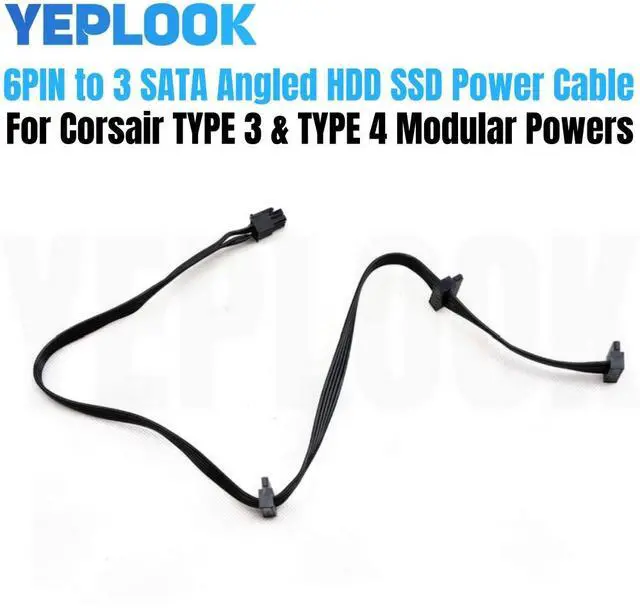

YEPLOOK 6Pin to 3x SATA Right Angled SSD HDD Power Cable for CORSAIR RM450 RM550 RM650 RM750 RM850 RM1000 Platinum Modular Power

YEPLOOK 6Pin to 3x SATA Right Angled SSD HDD Power Cable for CORSAIR RM450 RM550 RM650 RM750 RM850 RM1000 Platinum Modular Power

*Pre-Purchase Notes:

1. All pictures are for illustration purposes only, actual products may vary according to new production date and batch.

2. Different Brands & Series PSUs generally use unique pinouts, mix using may cause damage. Please check compatiblity in the below list or chat with us before you buy to ensure proper operation.

Description:

Length: 50+15+15CM

Flexible and easy to bend, easy to organize and good cable management.

Gauge: Made of UL1007 standard 18AWG wire, heat resistant, not easy aging, very durable.

There is an empty hole (NC) of 6Pin, which is normal and default pinout diagram. Not a quality problem!

6Pin port plug into CORSAIR PSUs, and SATA Port plug into the device with SATA Ports. Such as SSD, Hard Drive, Riser Cards, etc.

Fully Compatible: Guaranteed support Corsair All TYPE 4 Modular Power Supplies, also backward compatible with TYPE 3.

Type 3:

CORSAIR AXi: AX760i, AX860i, AX1200i, AX1500i.

CORSAIR HXi: HX750i, HX850i, HX1000i, HX1200i

CORSAIR HX Gold: HX650, HX750, HX850, HX1050

CORSAIR RM: RM450, RM550, RM650, RM750, RM850, RM1000 (Old & Yellow label).

CORSAIR CX-M: CX850M, CX750M, CX600M, CX500M, CX450M, CX430M.

CORSAIR CX: CX550, CX650, CX750.

CORSAIR CS-M: CS850M, CS750M, CS650M, CS550M, CS450M.

CORSAIR TX-M: TX850M, TX750M, TX650M, TX550M.

Type 4:

CORSAIR RMx: RM550x RM650x RM750x RM850x RM1000x.

CORSAIR RMi: RM550i RM650i RM750i RM850i RM1000i.

CORSAIR RMe: RM550e RM650e RM750e RM850e RM1000e.

CORSAIR RM (2019): RM450, RM550, RM650, RM750, RM850, RM1000 Platinum Version.

CORSAIR SF: SF450, SF600, SF700.

CORSAIR HX Platinum: HX750, HX850, HX1000, HX1200 Platinum Version.

CORSAIR AX1600i.

Not for CORSAIR Type 1 and Type 2 power, and other brands and models. Please Check with us if your power is not in the list.

Package List: 1x 6Pin to 3 SATA 90°Angled for Corsair Power Supply
