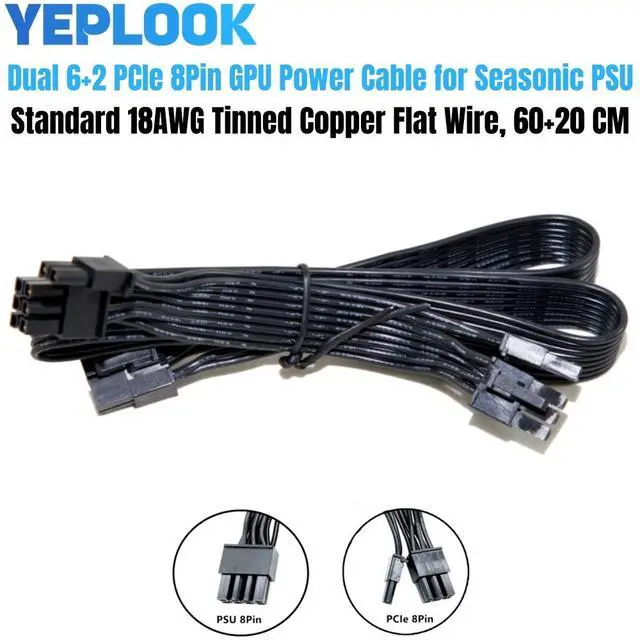

YEPLOOK PCIe Dual 6+2Pin 8Pin GPU Power Cable for Seasonic PX-1600, PX-1300, PX-1200, PX-1000, PX-850 PRIME Platinum Modular Power

*YEPLOOK MOD EXPERT Store Pre-Purchase Notes:

1. All pictures are for reference only, please contact us for real photo if need.

2. Mix use cables may cause damage. Please check compatibility with us before you buy.

3. The missing pins (No Pin) of 8Pin connector, which is default pin layout, not a faulty product.

4. Our technicians will inspect and test each cable before shipment. Don't worry about cable quality issues.

Description

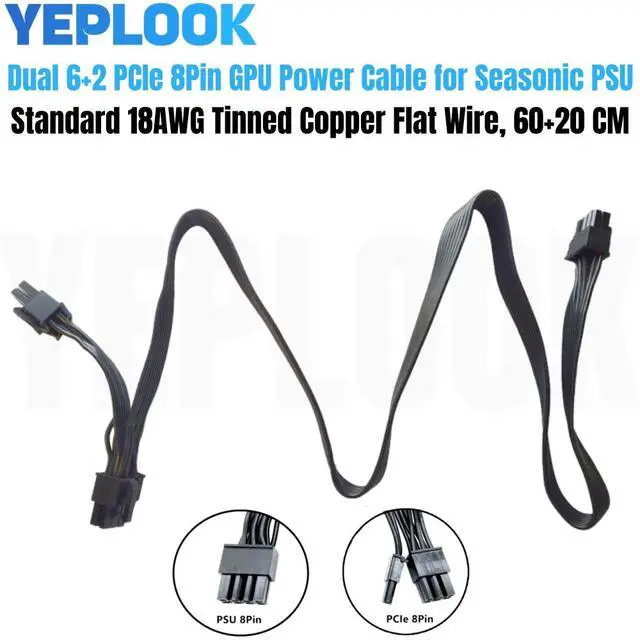

Length: 60+20CM

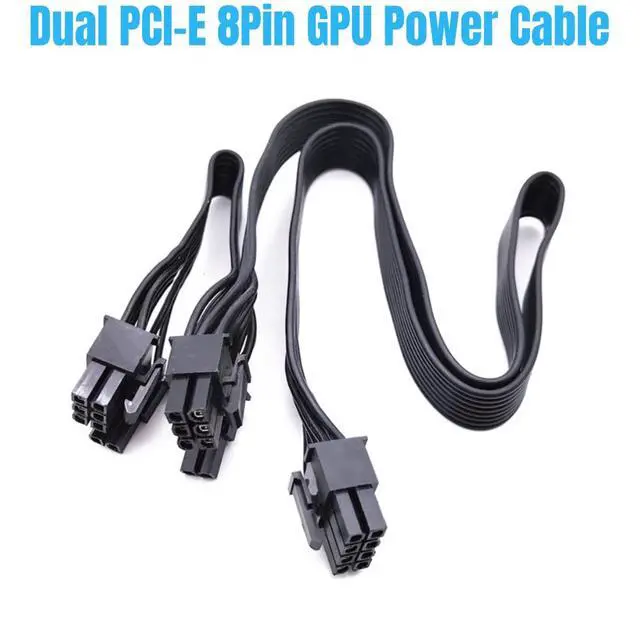

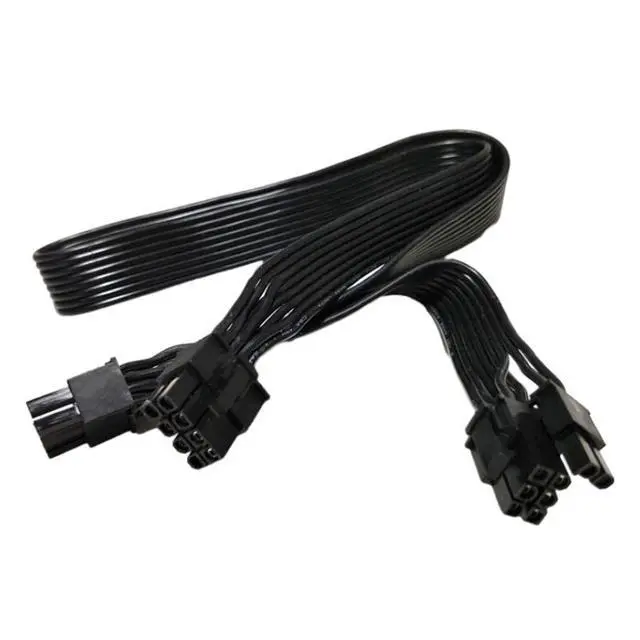

Interface: PSU 8Pin to PCI-E Dual 8Pin 6+2Pin.

Gauge: High Quality, made of standard 18AWG tinned copper wire.

Packing list: 1x PCIeDual 8Pin GPU Power Cable for Seasonic Power.

Features

1. Gauge: Made of standard 18AWG wire, heat resistant, not easy aging, very durable.

2. Flexible ribbon cable with fine braid net, easy to bend with good cable management.

3. PCIe 8Pin comes as "6+2" connector, allowing it to fit into GPU cards with 6Pin and 8Pin by sliding on/off the 2pin. Compatible with video card that has 8pin, 6pin or 8pin+6pin power socket.

4. Support power for GTX1080, GTX1080Ti, RTX2060, RTX2070, RTX2080, RTX2080Ti, RTX3060, RTX3070, RTX3080Ti, RTX3090Ti, RX570, RX580, RX590, RX5700XT, RX6700XT, RX6800XT, RX6900XT.

Installation

1. The 7Pin port [PSU side] can only be inserted into the PCI-e socket of modular power supply.

2. The 6+2 PIN [PCIE] port can be directly inserted into the graphics card or into the female port of a standard female-to-male PCIE extension cable.

3. The above installation method is the only correct way. Please confirm before and after installation.

Questions

Q 1: Why is its [PSU] interface only 7Pin?

A: please notice that the one that came with the PSU has a double wired pin on the left and so there is an empty pin on the right. Because the graphics card power supply only needs 3Pins 12V signals. The other 5 Pins are GND signals.

Q 2: Can I use it power for CPU?

A: No! Although the CPU interface in the power panel is shared with the PCIE interface. The PCIE 8Pin connector pinout differs and has a different latch position. It is distinct from the 8-Pin EPS/CPU connector.

Q 3: Does it work with other brands of module power supplies?

A: No, it only compatible with modular powers mentioned above.
