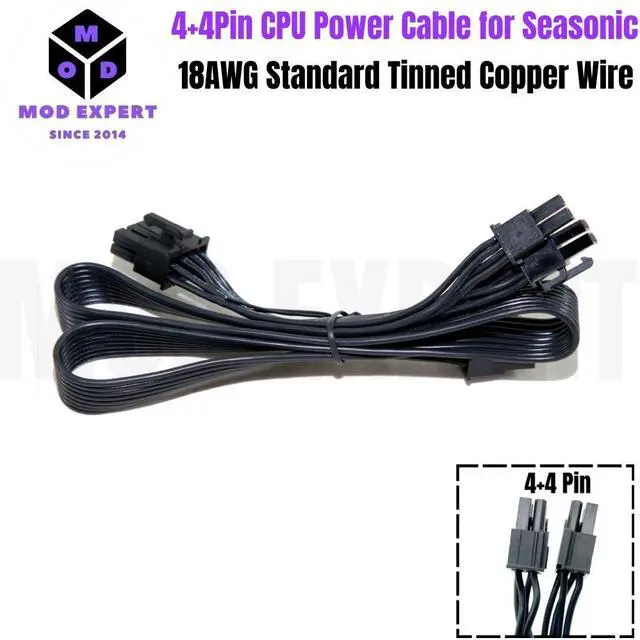

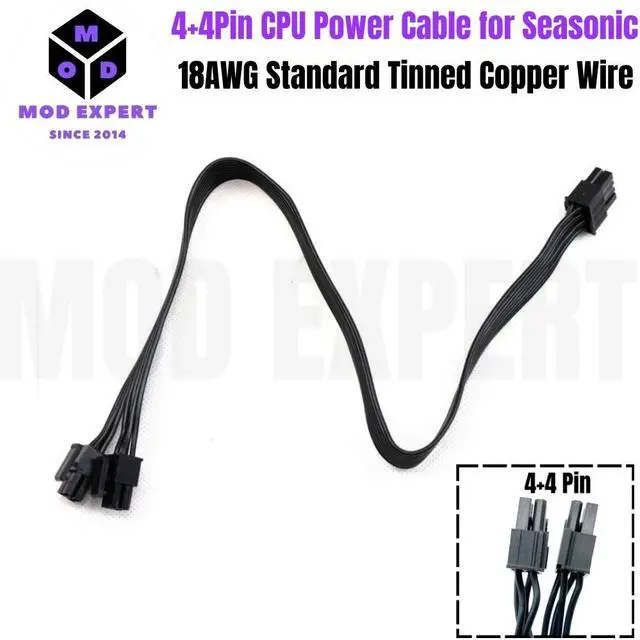

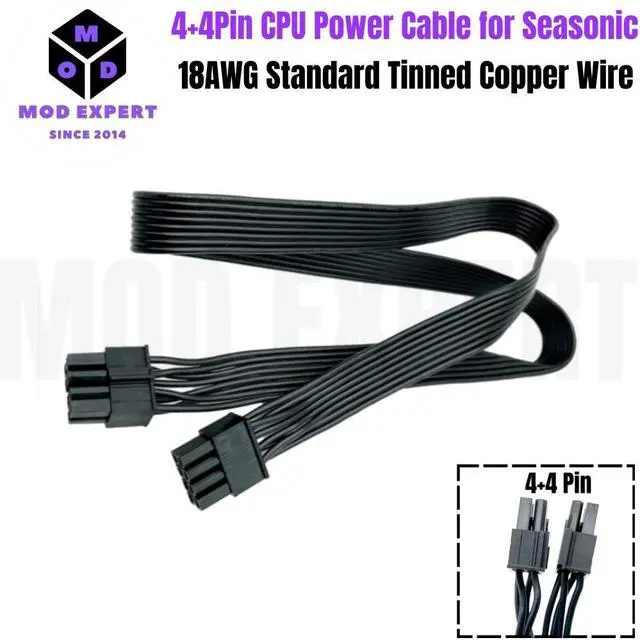

YEPLOOK CPU Power Cable EPS/ATX12V 8Pin 4+4Pin for Seasonic FOCUS+ PX-1000 1000W, PX-850 850W, PX-750 750W, PX-650 650W, PX-550 550W Platinum Modular Power, 18AWG Flat Cable 60CM/23.62inch

YEPLOOK CPU Power Cable EPS/ATX12V 8Pin 4+4Pin for Seasonic FOCUS+ PX-1000 1000W, PX-850 850W, PX-750 750W, PX-650 650W, PX-550 550W Platinum Modular Power, 18AWG Flat Cable 60CM/23.62inch

Description

Manufacturer: YEPLOOK

Length: 60CM/ 23.62 inch/ 1.97 ft.

Interface: PSU 8Pin to CPU 8Pin 4+4Pin

Gauge: made of UL1007 standard 18AWG tinned copper wire.

Features: Flexible and easy to bend, keeping cables in a good management. Excellent durability, high temperature resistance, support high currents in order to achieve superior performance.

How to Connect:

PSU 8Pin male end to plug into the power connector of power supply

(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )

EPS 8Pin (4+4Pin) male end to plug into the Motherboard.

(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

The cable does not work with GPU graphics card. PSU 8Pin and EPS 4+4Pin male cannot be used interchangeably!

Packing list: 1x Single CPU Power Supply Cable

Compatiblity: Support Seasonic FOCUS PLUS Platinum PX Series Below:

Model: SSR-1000PX, FOCUS PX-1000, FOCUS PLUS 1000 Platinum Full Modular PSU

Model: SSR-850PX, FOCUS PX-850, FOCUS PLUS 850 Platinum Full Modular PSU

Model: SSR-750PX, FOCUS PX-750, FOCUS PLUS 750 Platinum Full Modular PSU

Model: SSR-650PX, FOCUS PX-650, FOCUS PLUS 650 Platinum Full Modular PSU

Model: SSR-550PX, FOCUS PX-550, FOCUS PLUS 550 Platinum Full Modular PSU

Warning!!! NOT for other brands and models! Also Not for some Seasonic old version PSUs Below:

X Series: SS-650KMSS-750KMSS-560KMSS-660KMSS-760KMSS-850KMSS-1050XMSS-1250XM

P Series: SS-1000XPSS-860XP

FL Series: SS-400FLSS-460FL

If your power supply model is not mentioned, please check compatibility with us!

We have many full sets of modular power cables of many brands of Power Supply Unit. (8Pin, Dual 8Pin, SATA, IDE, CPU, 24Pin Main Power), please ask for links to purchase.
