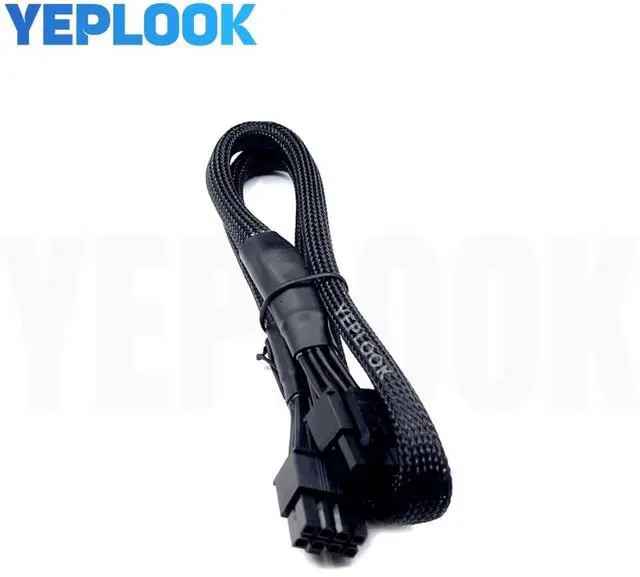

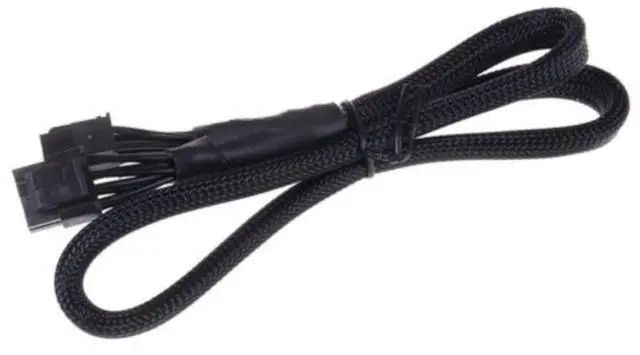

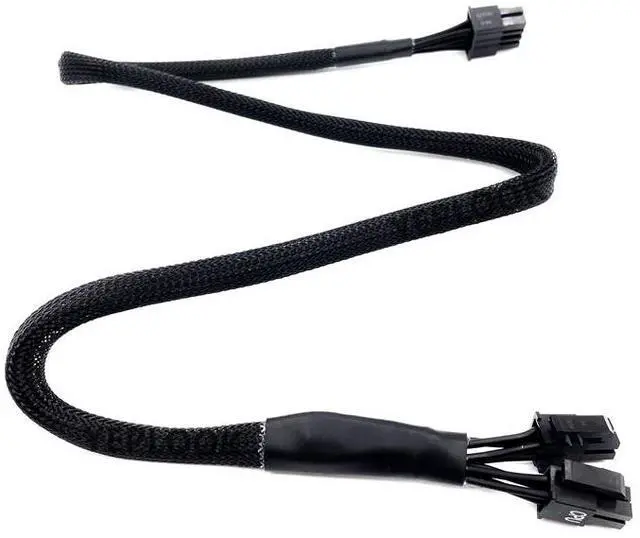

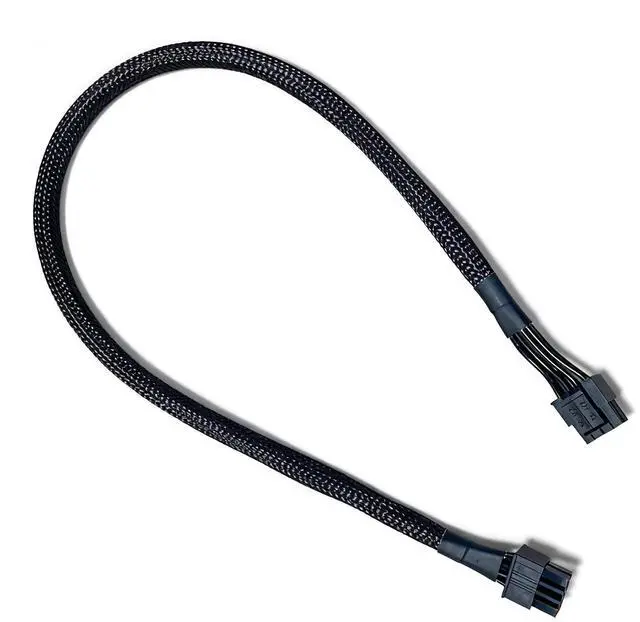

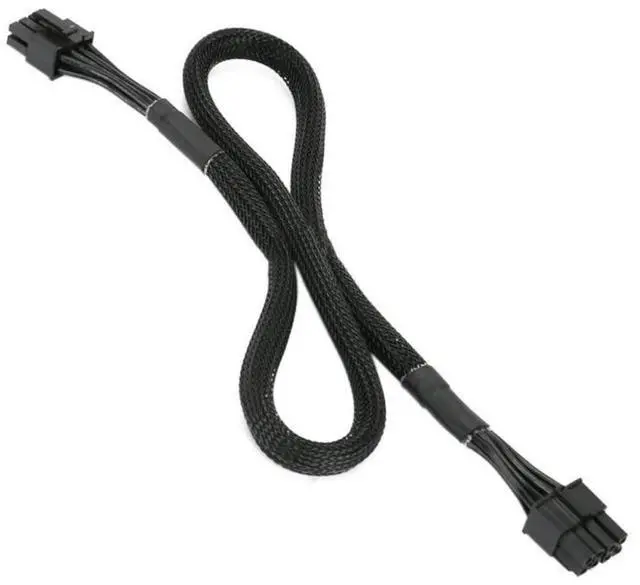

YEPLOOK 8Pin to 4+4Pin CPU Power Cable for Seasonic PRIME GX-1300, GX-1000, GX-850, GX-750, GX-650 Gold Modular Power, Sleeved Net 18AWG 60CM

YEPLOOK 8Pin to 4+4Pin CPU Power Cable for Seasonic PRIME GX-1300, GX-1000, GX-850, GX-750, GX-650 Gold Modular Power, Sleeved Net 18AWG 60CM

Description

Manufacturer: YEPLOOK

Length: 60CM/ 26.32 inch/ 1.97 ft.

Interface: PSU 8Pin to CPU 4+4Pin

Gauge: made of UL1007 standard 18AWG tinned copper wire with Premium nylon net. Flexible and easy to bend, keeping cables in a good management.

Features: Built-in capacitor will keep excellent durability, high temperature resistance, support high currents in order to achieve superior performance.

How to Connect:

CPU 8Pin male end to plug into the power connector of power supply

(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )

EPS 8Pin (4+4Pin) male end to plug into the Motherboard.

(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

The cable does not work with GPU graphics card. PSU 8Pin and EPS 4+4Pin male cannot be used interchangeably!

Packing list: 1x Single CPU 4+4Pin Sleeved Net Cable

Compatiblity: Support Seasonic PRIME Gold GX 80+ Series PSUs Below:

Model: SSR-1300GD Active PFC F3, PRIME 1300 Gold, PRIME GX-1300

Model: SSR-1000GD Active PFC F3, PRIME 1000 Gold, PRIME GX-1000

Model: SSR-850GD Active PFC F3, PRIME 850 Gold, PRIME GX-850

Model: SSR-750GD Active PFC F3, PRIME 750 Gold, PRIME GX-750

Model: SSR-650GD Active PFC F3, PRIME 650 Gold, PRIME GX-650

Warning!!! NOT for other brands and models! Also Not for some Seasonic old version

PSUs Below:

X Series: SS-650KMSS-750KMSS-560KMSS-660KMSS-760KMSS-850KMSS-1050XMSS-1250XM

P Series: SS-1000XPSS-860XP

FL Series: SS-400FLSS-460FL

If your power supply model is not mentioned, please check compatibility with us!

We have many full sets of modular power cables of many brands of Power Supply Unit. (8Pin, Dual 8Pin, SATA, IDE, CPU, 24Pin Main Power), please ask for links to purchase.
