YEPLOOK PSU 8Pin to Dual 4+4Pin CPU Power Modular Cable for Seasonic PRIME Titanium SSR-1000TD 1000W, SSR-850TD 850W, SSR-750TD 750W, SSR-650TD 650W Modular Power

YEPLOOK PSU 8Pin to Dual 4+4Pin CPU Power Modular Cable for Seasonic PRIME Titanium SSR-1000TD 1000W, SSR-850TD 850W, SSR-750TD 750W, SSR-650TD 650W Modular Power

Description

Brand: YEPLOOK

Length: 60+20CM

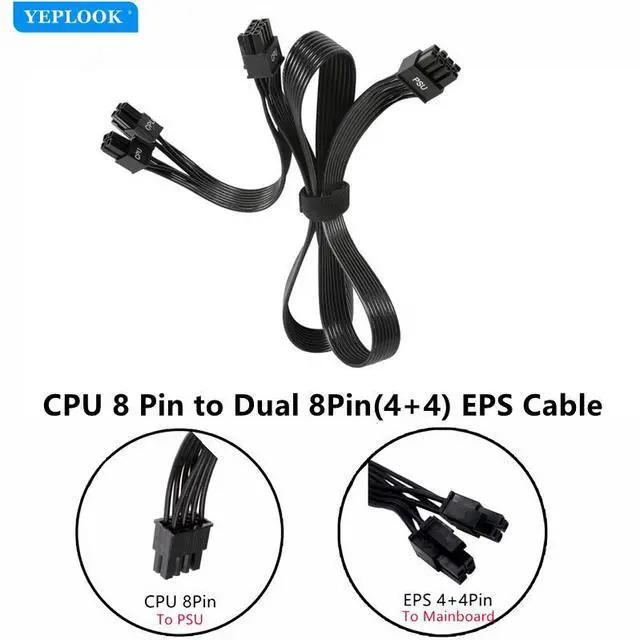

Interface: PSU 8Pin to CPU Dual 4+4Pin

Gauge: made of UL1007 standard 18AWG tinned copper wire.

Features: Flexible and easy to bend, keeping cables in a good management. Excellent durability, high temperature resistance, support high currents in order to achieve superior performance.

How to Connect:

PSU 8Pin male plug into Seasonic power power supply

(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )

EPS 8Pin (4+4Pin) male plug into Motherboard.

(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as 8Pin or 4Pin ATX 4Pin by sliding on/off the 4Pin. )

The cable does not work with GPU graphics card. PSU 8Pin and EPS 4+4Pin can not be used interchangeably!

Packing list: 1x Dual CPU Power Supply Cable

Compatiblity: Support Seasonic PRIME Titanium series below:

Model: SSR-1000TD Active PFC F3, PRIME 1000 Titanium

Model: SSR-850TD Active PFC F3, PRIME 850 Titanium

Model: SSR-750TD Active PFC F3, PRIME 750 Titanium

Model: SSR-650TD Active PFC F3, PRIME 650 Titanium

Model: SSR-600TL, PRIME 600 Titanium Fanless

Model: SSR-700TL, PRIME 700 Titanium Fanless

Warning!!! NOT for other brands and models!

Also Not for some Seasonic old version PSUs Below:

X Series: SS-650KMSS-750KMSS-560KMSS-660KMSS-760KMSS-850KMSS-1050XMSS-1250XM

P Series: SS-1000XPSS-860XP

FL Series: SS-400FLSS-460FL

If your power supply model is not mentioned, please check compatibility with us!

We have many full sets of modular power cables of many brands of Power Supply Unit. (8Pin, Dual 8Pin, SATA, IDE, CPU, 24Pin Main Power), please ask for links to purchase.
