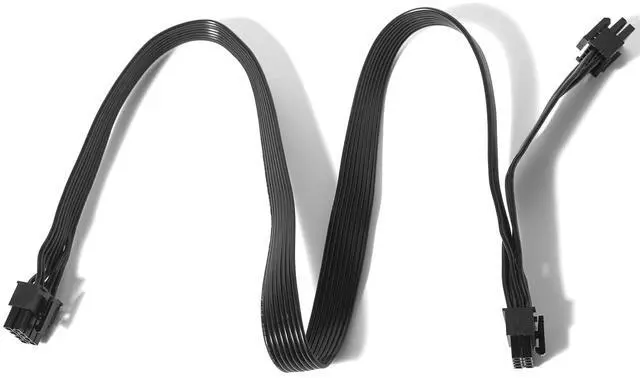

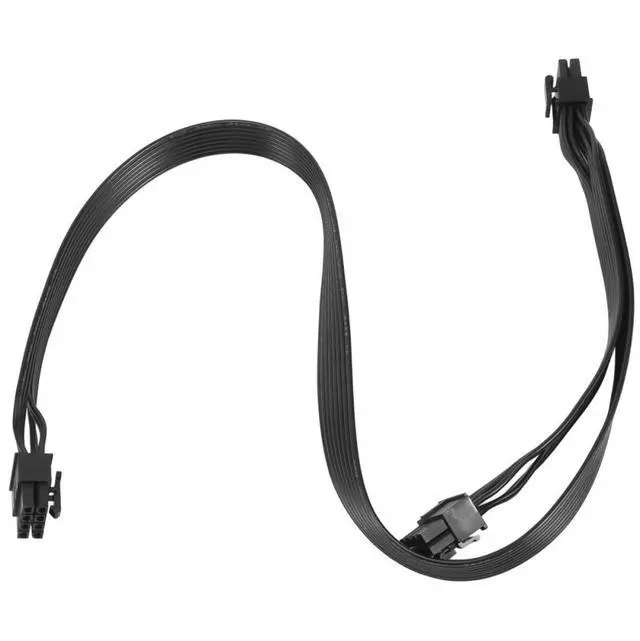

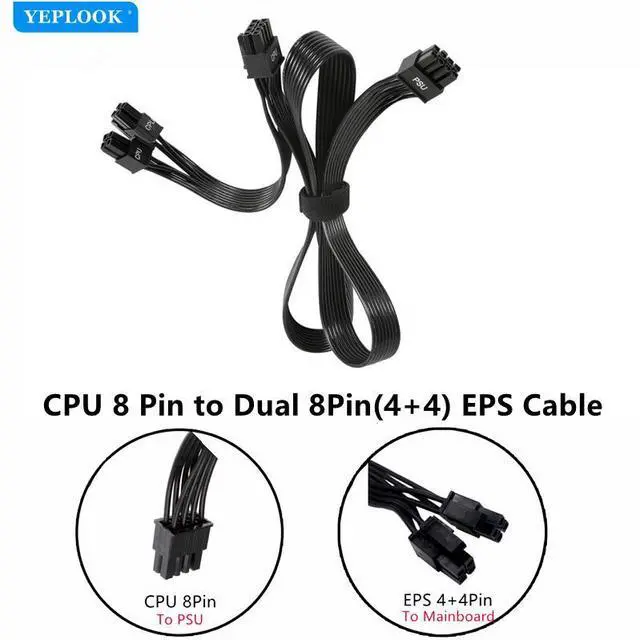

YEPLOOK PSU 8Pin to Dual CPU 8Pin EPS/ATX12V 4+4Pin Power Cable for Seasonic M12II EVO SS-520GM2, 620GM2, 750AM2, 850AM2 Modular Power
Description
Brand: YEPLOOK
Interface: PSU 8Pin to CPU Dual 4+4Pin
Gauge: made of UL1007 standard 18AWG tinned copper wire.
Features: Flexible and easy to bend, keeping cables in a good management. Excellent durability, high temperature resistance, support high currents in order to achieve superior performance.
How to Connect:
PSU 8Pin male plug into Seasonic power power supply
(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )
EPS 8Pin (4+4Pin) male plug into Motherboard.
(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as 8Pin or 4Pin ATX 4Pin by sliding on/off the 4Pin. )
The cable does not work with GPU graphics card. PSU 8Pin and EPS 4+4Pin can not be used interchangeably!
Packing list: 1x Dual CPU Power Supply Cable
Compatiblity: Seasonic M12II EVO Edition 80Plus Bronze Full Modular Series:
Model: SS-520GM2 Activie PFC F3, M12II-520Bronze 520W
Model: SS-620GM2 Activie PFC F3, M12II-620Bronze 620W
Model: SS-750AM2 Activie PFC F3, M12II-750Bronze 750W
Model: SS-850AM2 Activie PFC F3, M12II-850Bronze 850W
Warning!!! NOT for other brands and models!
Also Not for some Seasonic old version PSUs Below:
X Series: SS-650KMSS-750KMSS-560KMSS-660KMSS-760KMSS-850KMSS-1050XMSS-1250XM
P Series: SS-1000XPSS-860XP
FL Series: SS-400FLSS-460FL
If your power supply model is not mentioned, please check compatibility with us!
We have many full sets of modular power cables of many brands of Power Supply Unit. (8Pin, Dual 8Pin, SATA, IDE, CPU, 24Pin Main Power), please ask for links to purchase.
