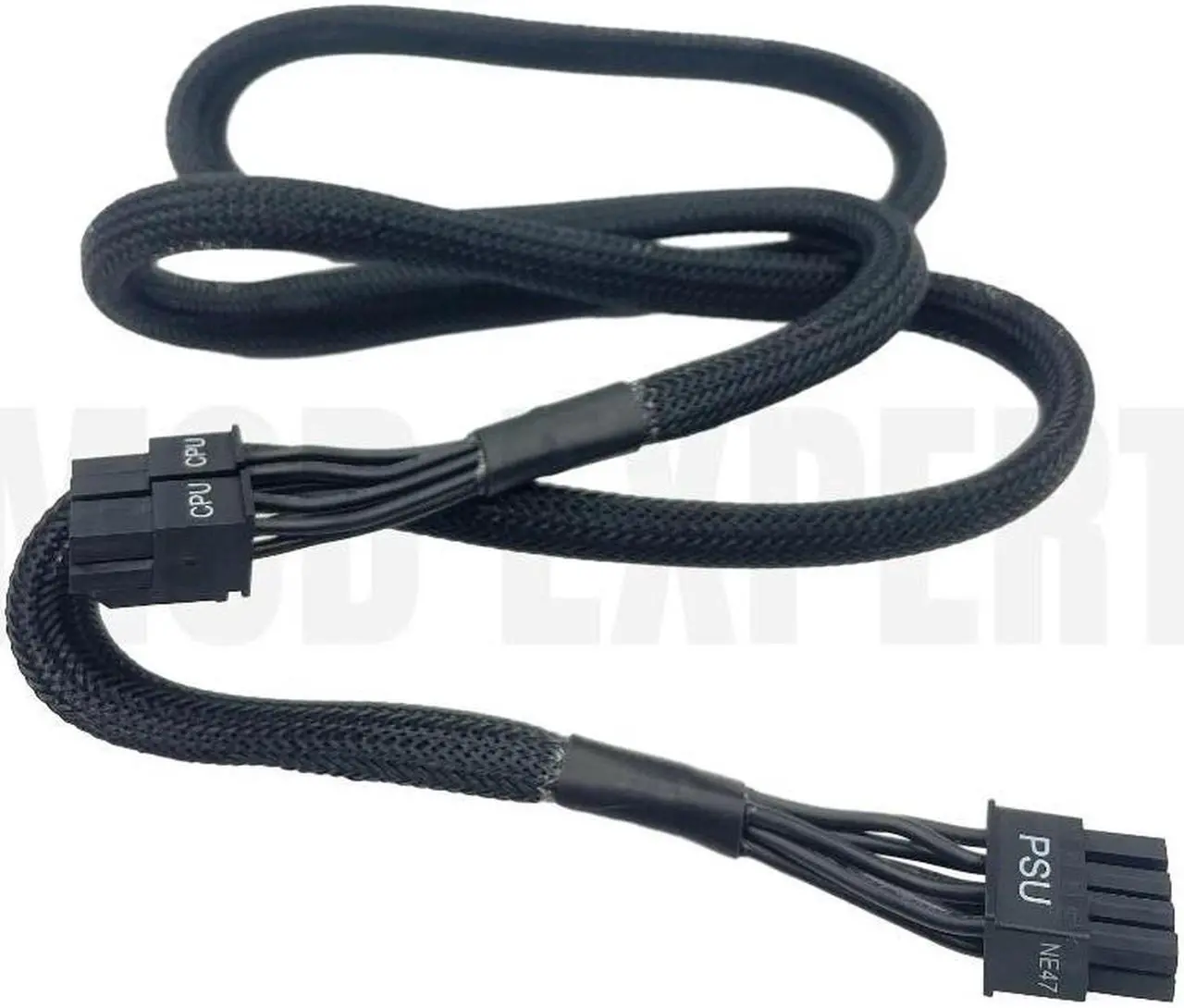

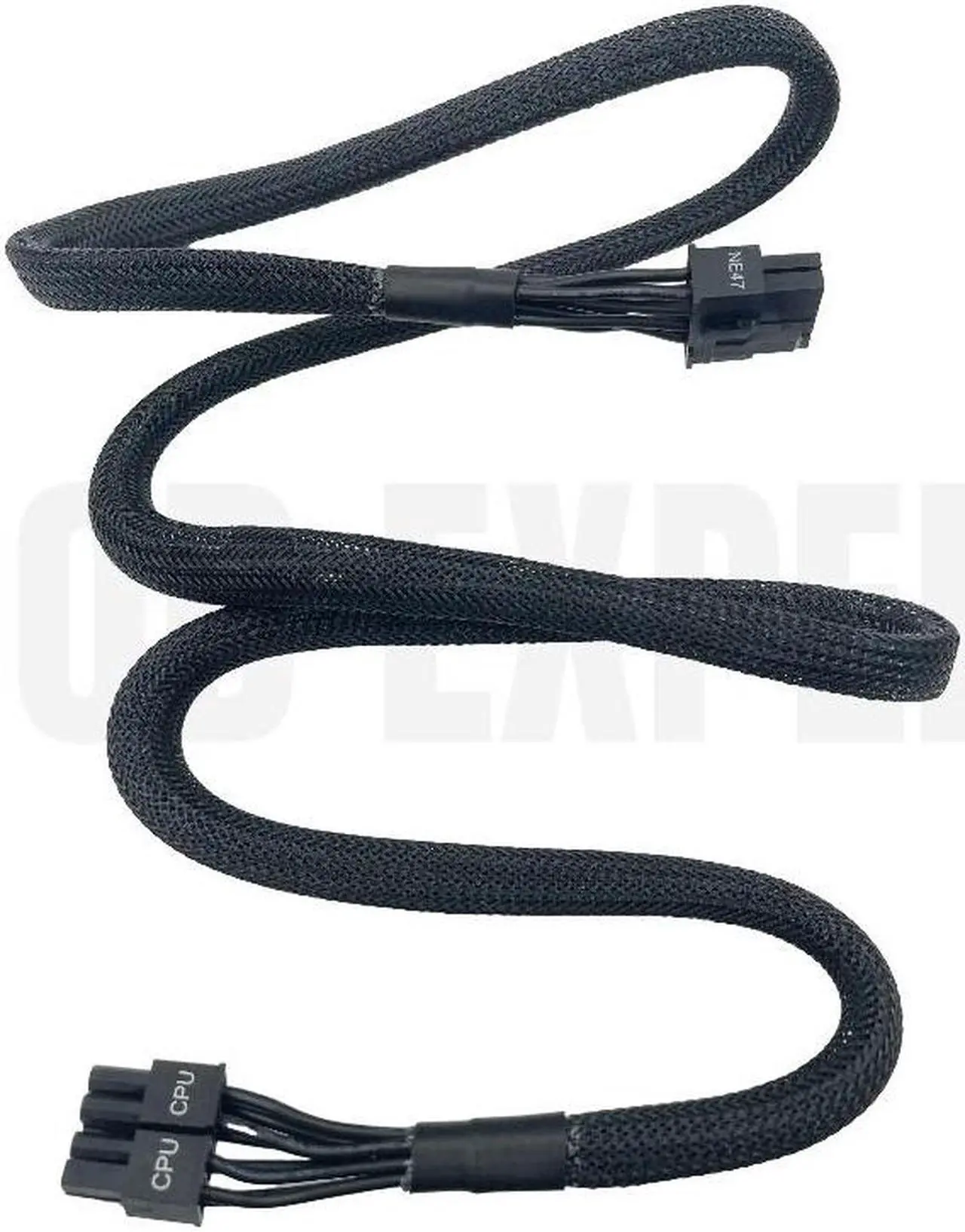

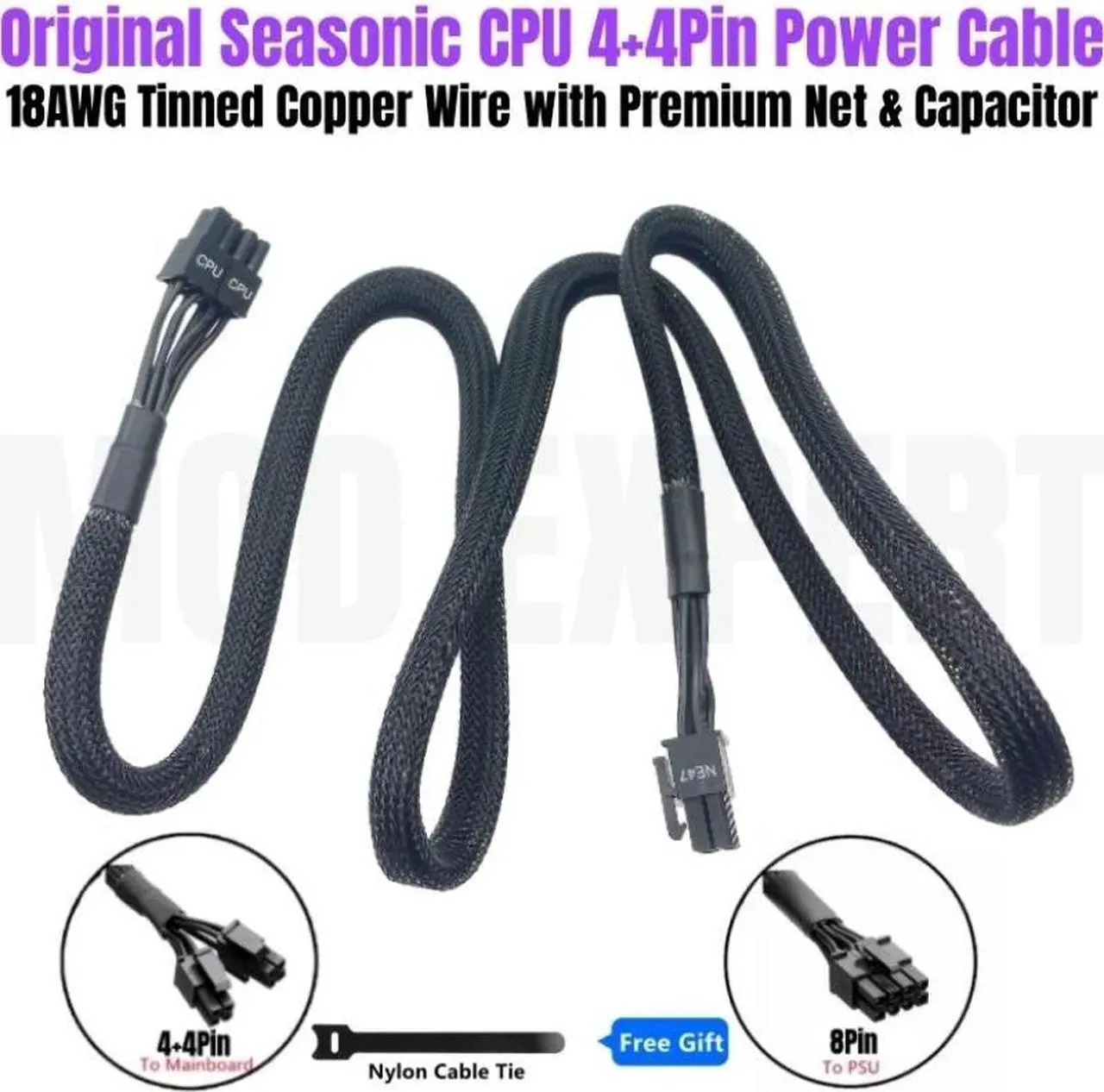

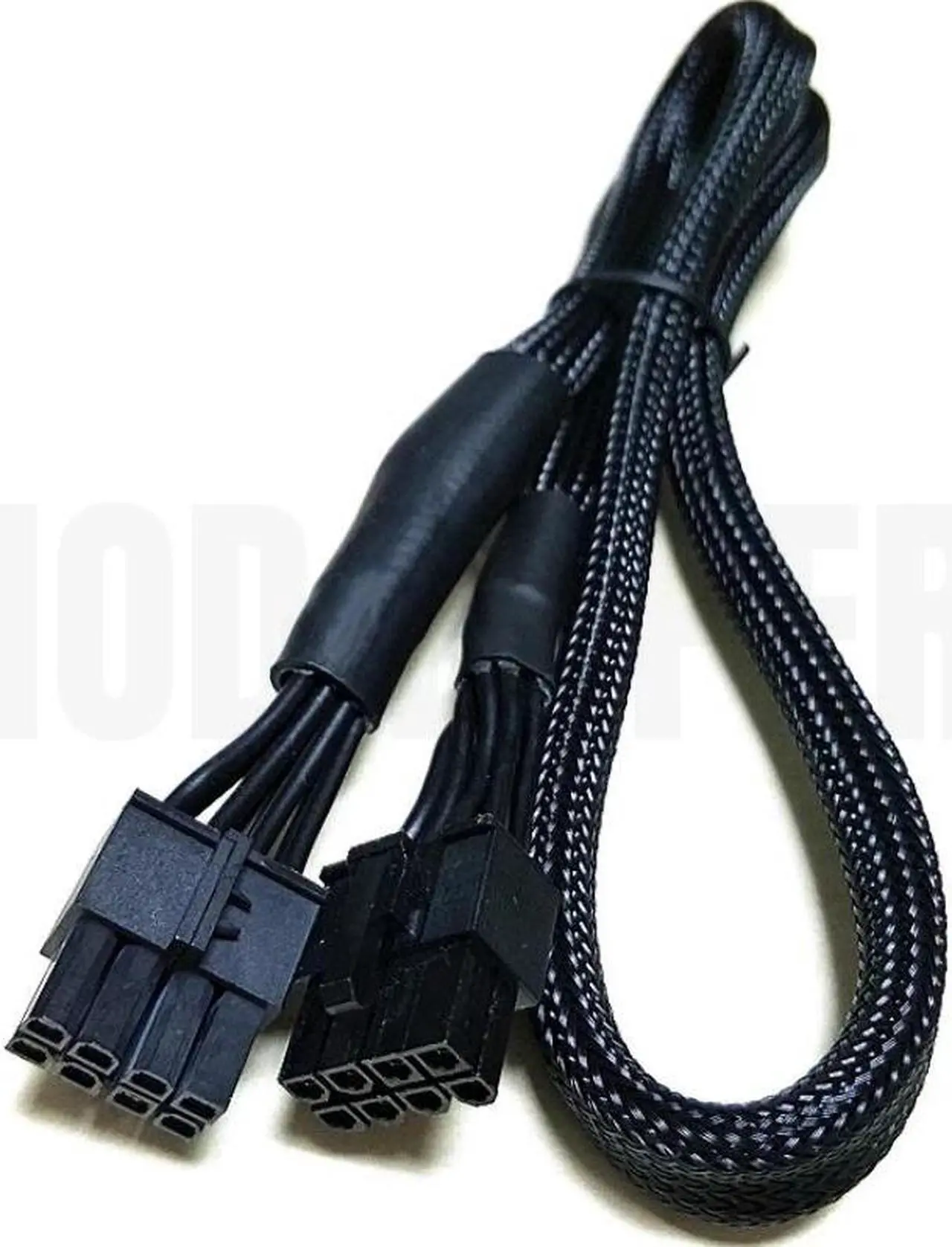

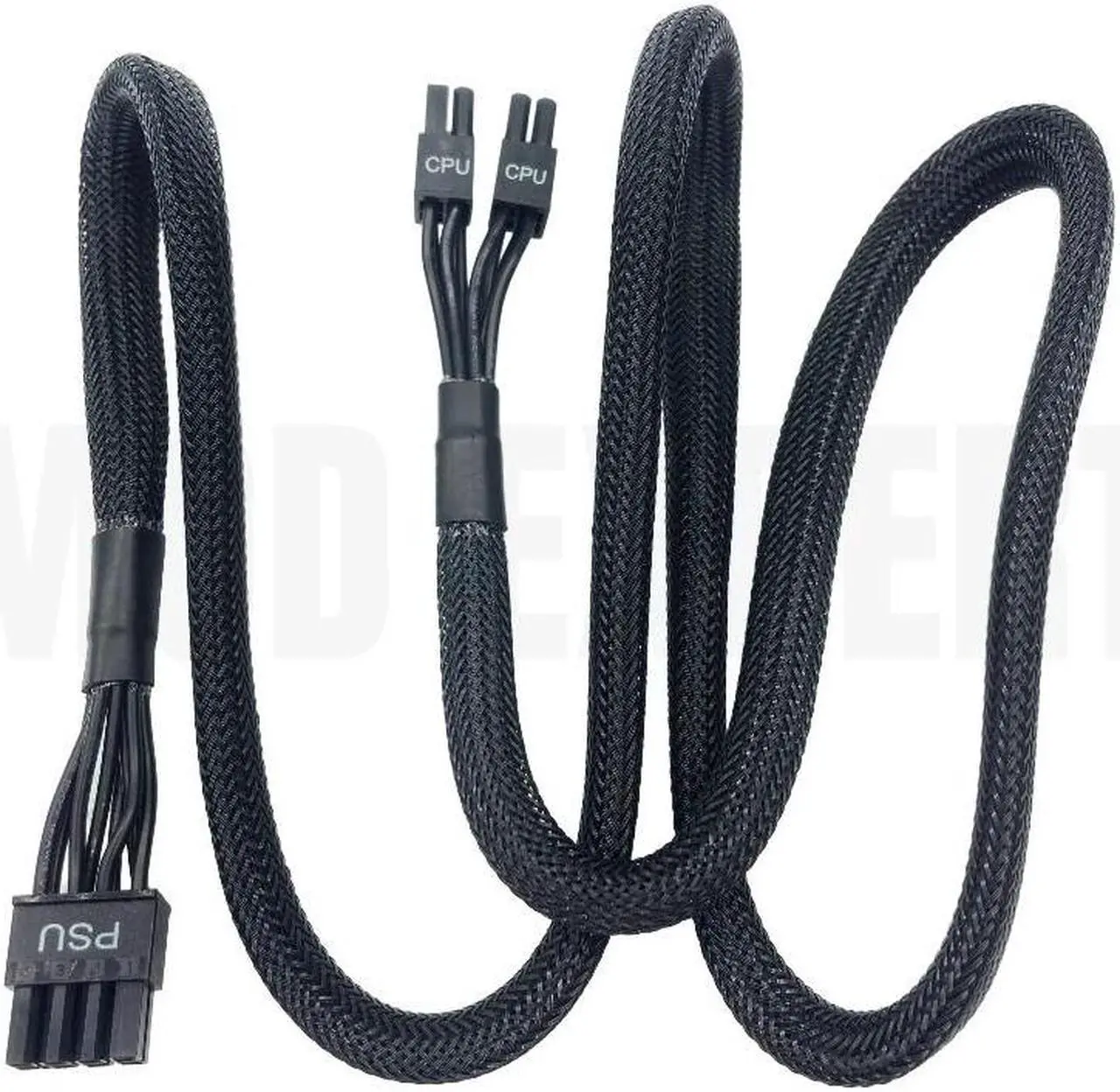

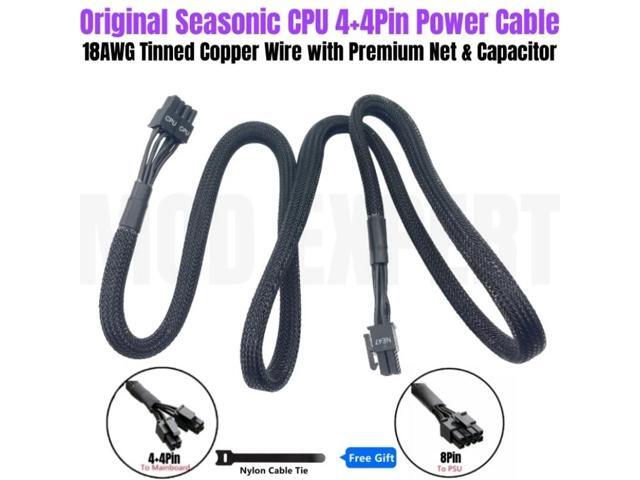

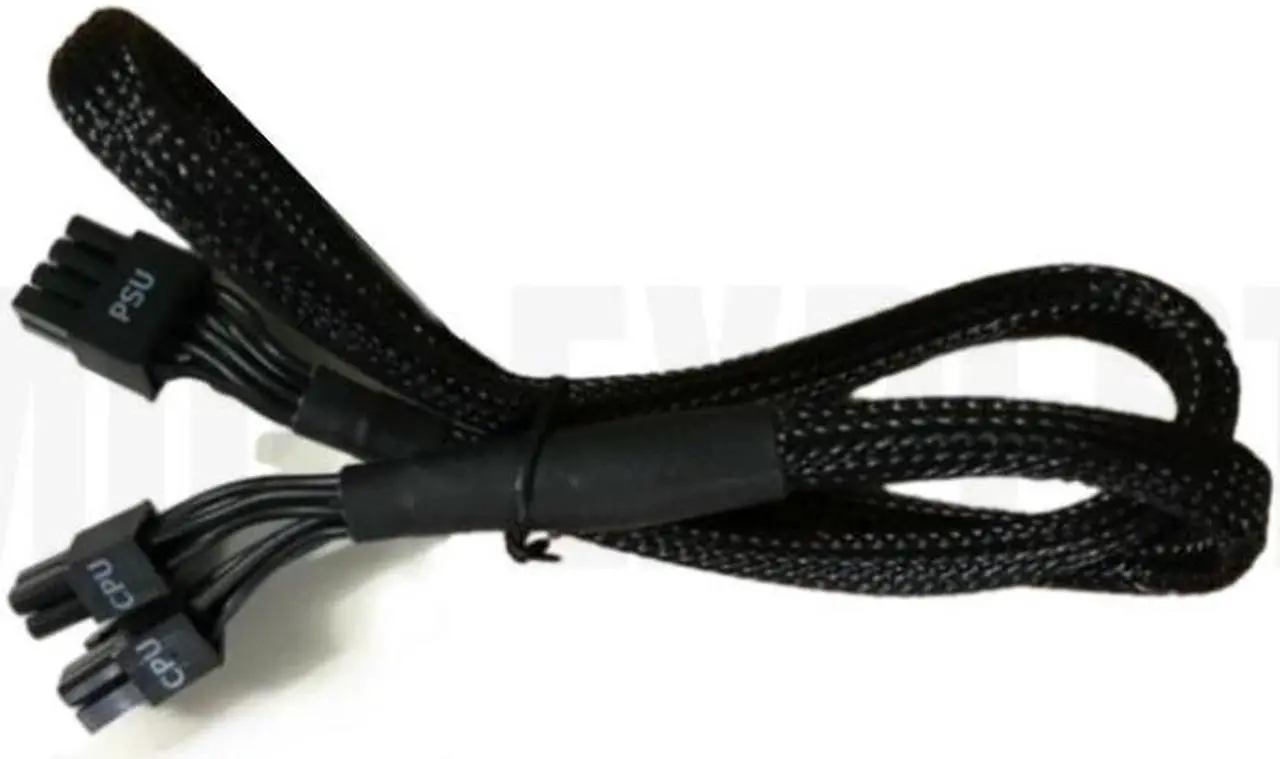

Original Seasonic FOCUS PLUS Modular PSU 8Pin to 4+4Pin CPU Power Cable Net for PX-1000, PX-850, PX-750, PX-650, PX-550 Platinum

Original Seasonic FOCUS PLUS Modular PSU 8Pin to 4+4Pin CPU Power Cable Net for PX-1000, PX-850, PX-750, PX-650, PX-550 Platinum 18AWG 70CM

* Pre-Purchase Notes:

1. These cables are original and new. Quality is more better than copy fake cable.

2. Different Brands & Series cables are not universal. Mix use may cause damage.

3. Please check compatibility with us before you buy. If any question, please contact us anytime.

Description

Manufacturer: Seasonic.
Length: 70CM/ 27.6 inch/ 2.3 ft.
Interface: PSU 8Pin to CPU 4+4Pin
Gauge: Original Quality, made of UL1007 standard 18AWG tinned copper wire with Premium nylon net. Flexible and easy to bend, keeping cables in a good management.

Features: Built-in capacitor will keep excellent durability, high temperature resistance, support high currents in order to achieve superior performance.

How to Connect:

CPU 8Pin male end to plug into the power connector of power supply
(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )

EPS 8Pin (4+4Pin) male end to plug into the Motherboard.
(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

The cable does not work with GPU graphics card. PSU 8Pin and EPS 4+4Pin male cannot be used interchangeably!

Packing list: 1x Seasonic Original Single CPU 4+4Pin Sleeved Net Cable, 1x free gift nylon cable tie.

Compatiblity: Support Seasonic FOCUS PLUS Platinum PX Series Below:

Model: SSR-1000PX, FOCUS PX-1000, FOCUS PLUS 1000 Platinum Full Modular PSU

Model: SSR-850PX, FOCUS PX-850, FOCUS PLUS 850 Platinum Full Modular PSU

Model: SSR-750PX, FOCUS PX-750, FOCUS PLUS 750 Platinum Full Modular PSU

Model: SSR-650PX, FOCUS PX-650, FOCUS PLUS 650 Platinum Full Modular PSU

Model: SSR-550PX, FOCUS PX-550, FOCUS PLUS 550 Platinum Full Modular PSU

Warning!!! NOT for other brands and models! Also Not for some Seasonic old version
PSUs Below:

X Series: SS-650KMSS-750KMSS-560KMSS-660KMSS-760KMSS-850KMSS-1050XMSS-1250XM
P Series: SS-1000XPSS-860XP
FL Series: SS-400FLSS-460FL

If your power supply model is not mentioned, please check compatibility with us!
We have many full sets of modular power cables of many brands of Power Supply Unit. (8Pin, Dual 8Pin, SATA, IDE, CPU, 24Pin Main Power), please ask for links to purchase.
